Hot-selling and scarce TMS320BC52PZA-57 DIGITAL SIGNAL PROCESSORS QFP spot stock

Product Descriptions

The TMS320C5x generation of the Texas Instruments (TI) TMS320 digital signal processors (DSPs) is fabricated with static CMOS integrated circuit technology; the architectural design is based upon that of an earlier TI DSP, the TMS320C25 . The combination of advanced Harvard architecture, on-chip peripherals, on-chip memory, and a highly specialized instruction set is the basis of the operational flexibility and speed of the’C5x‡ devices. They execute up to 50 million instructions per second (MIPS).

Product Features

Powerful 16-Bit TMS320C5x CPU

20-, 25-, 35-, and 50-ns Single-Cycle Instruction Execution Time for 5-V Operation

25-, 40-, and 50-ns Single-Cycle Instruction Execution Time for 3-V Operation

Single-Cycle 16 × 16-Bit Multiply/Add

224K × 16-Bit Maximum Addressable External Memory Space (64K Program, 64K Data, 64K I/O, and 32K Global)

2K, 4K, 8K, 16K, 32K × 16-Bit Single-Access On-Chip Program ROM

1K, 3K, 6K, 9K × 16-Bit Single-Access On-Chip Program/Data RAM (SARAM)

1K Dual-Access On-Chip Program/Data RAM (DARAM)

Full-Duplex Synchronous Serial Port for Coder/Decoder Interface

Time-Division-Multiplexed (TDM) Serial Port

Hardware or Software Wait-State Generation Capability

On-Chip Timer for Control Operations

Repeat Instructions for Efficient Use of Program Space

Buffered Serial Port

Host Port Interface

Product Specification

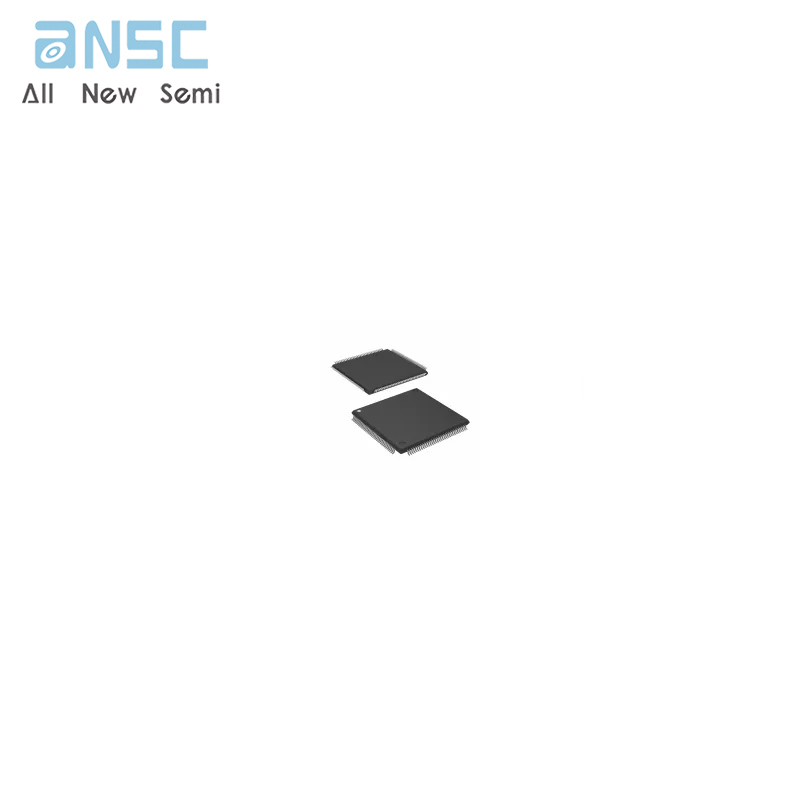

Product Photos

For more product information, please download the PDF
