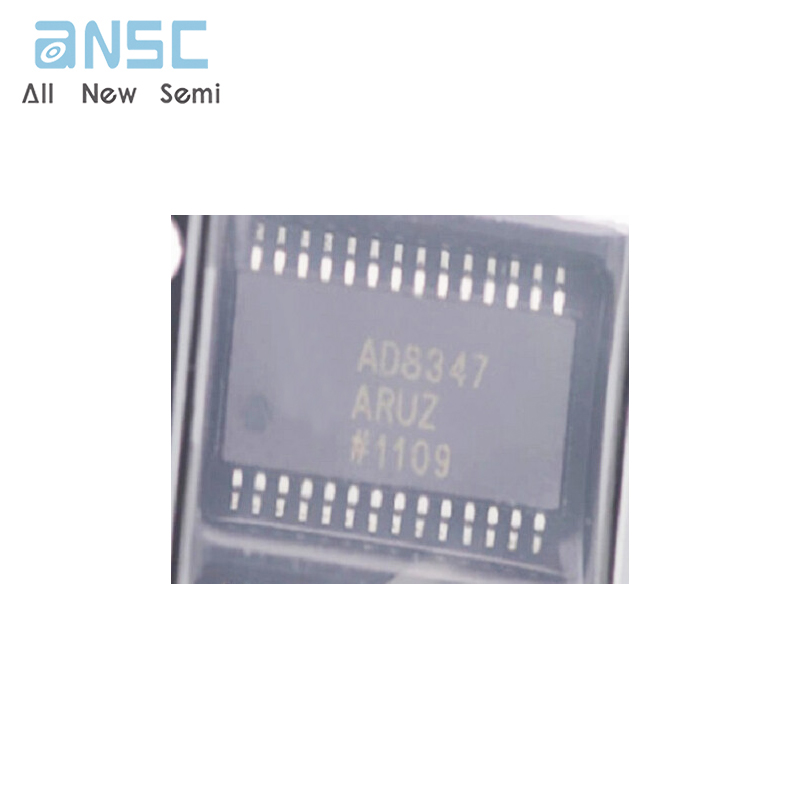

Hot-selling and scarce AD8347ARUZ 0.8 GHz to 2.7 GHz Direct Conversion Quadrature Demodulator TSSOP28 spot stock

Product Descriptions

The AD8347¹ is a broadband direct quadrature demodulatorwith RF and baseband automatic gain control (AGC) amplifiers .It is suitable for use in many communications receivers,performingquadrature demodulation directly to baseband frequencies . Theinput frequency range is 800 MHz to 2.7 GHz . The outputs canbe connected directly to popular A-to-D converters such as theAD9201 and AD9283 .

The RF input signal goes through two stages of variable gainamplifiers prior to two Gilbert-cell mixers . The LO quadraturephase splitter employs polyphase filters to achieve highquadrature accuracy and amplitude balance over the entireoperating frequency range. Separate I and Q channel variablegain amplifiers follow the baseband outputs of the mixers . TheRF and baseband amplifiers together provide 69.5 dB of gaincontrol. A precision control circuit sets the linear-in-dB RF gainresponse to the gain control voltage .

Product Features

Integrated RF and baseband AGC amplifiers

Quadrature phase accuracy 1° typ

I/Q amplitude balance 0.3 dB typ

Third-order intercept (IIP3) +11.5 dBm @ min gain

Noise figure 11 dB @ max gain

AGC range 69.5 dB

Baseband level control circuit

Low LO drive −8 dBm

ADC-compatible I/Q outputs

Single supply 2.7 V to 5.5 V

Power-down mode

28-lead TSSOP package

Product Applications

Cellular base stations

Radio links

Wireless local loop

IF broadband demodulators

RF instrumentation

Satellite modems

Product Specification

Product Photos

For more product information, please download the PDF
