Product Descriptions

The ADR43x series is a family of XFET voltage referencesfeaturing low noise, high accuracy, and low temperature driftperformance . Using ADI’s patented temperature drift curvaturecorrection and XFET (eXtra implanted junction FET) technology,the ADR43x’s voltage change versus temperature nonlinearity isminimized

The XFET references operate at lower current (800 µA) andsupply headroom (2 V) than buried-Zener references . BuriedZener references require more than 5 V headroom for operations .The ADR43x XFET references are the only low noise solutionsfor 5 V systems .

The ADR43x series has the capability to source up to 30 mAand sink up to 20 mA of output current . It also comes with aTRIM terminal to adjust the output voltage over a 0.5% rangewithout compromising performance . The ADR43x is availablein the 8-lead mini SOIC and 8-lead SOIC packages .

Product Features

Low noise (0.1 Hz to 10 Hz): 3.5 µV p-p @ 2.5 V output

No external capacitor required

Low temperature coefficient

A Grade: 10 ppm/°C max

B Grade: 3 ppm/°C max

Load regulation: 15 ppm/mA

Line regulation:  20 ppm/V

Wide operating range

ADR430: 4.1 V to 18 V

ADR431: 4.5 V to 18 V

ADR433: 5.0 V to 18 V

ADR434: 6.1 V to 18 V

ADR435: 7.0 V to 18 V

ADR439: 6.5 V to 18 V

High output current: +30 mA/−20 mA

Wide temperature range: −40°C to +125°C

Product Applications

Precision data acquisition systems

High resolution data converters

Medical instruments

Industrial process control systems

Optical control circuits

Precision instruments

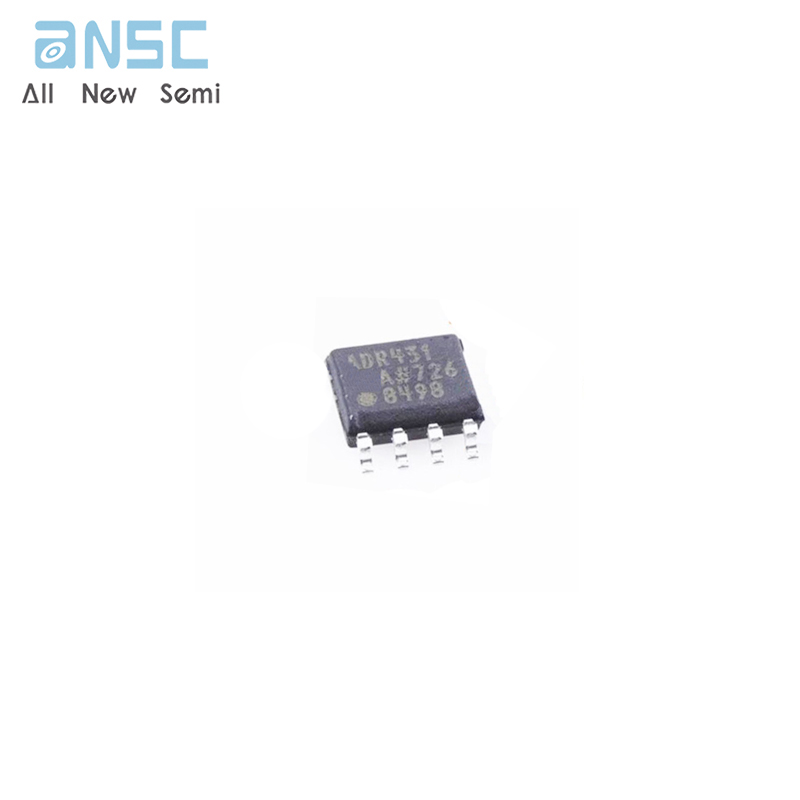

Product Photos

For more product information, please download the PDF
