Hot-selling and scarce AD7725BSZ 16-Bit ADC with a Programmable Postprocessor QFP44 spot stock

Product Descriptions

The AD7725 is a complete 16-bit,- analog-to-digital converter with on-chip, user-programmable signal conditioning . Theoutput of the modulator is processed by three cascaded finiteimpulse response (FIR) filters, followed by a fully user-programmable postprocessor . The postprocessor provides processingpower of up to 130 million accumulates (MAC) per second . Theuser has complete control over the filter response, the filter coefficients, and the decimation ratio .

The postprocessor permits the signal conditioning characteristics to be programmed through a parallel or serial interface . Itis programmed by loading a user-defined filter in the form of aconfiguration file . This filter can be loaded from a DSP or anexternal serial EPROM . It is generated using a digital filterdesign package called Filter Wizard, which is available from theAD7725 section on the Analog Devices website .

Product Features

Programmable Filtering:

Any Characteristic up to 108 Tap FIR and/or IIR

Polynomial Signal Conditioning up to 8th  Order

Programmable Decimation and Output Word Rate

Flexible Programming Modes:

Boot from DSP or External EPROM

Parallel/Serial Interface

Internal Default Filter for Evaluation

14.4 MHz Max Master Clock Frequency

0 V to +4 V (Single-Ended) or 2 V (Differential) Input

Range

Power Supplies: AVDD, DVDD : 5 V  5%

On-Chip 2.5 V Voltage Reference

44-Lead MQFP Package

Product Applications

Radar

Sonar

Auxiliary Car Functions

Medical Communications

    ​

Product Specification

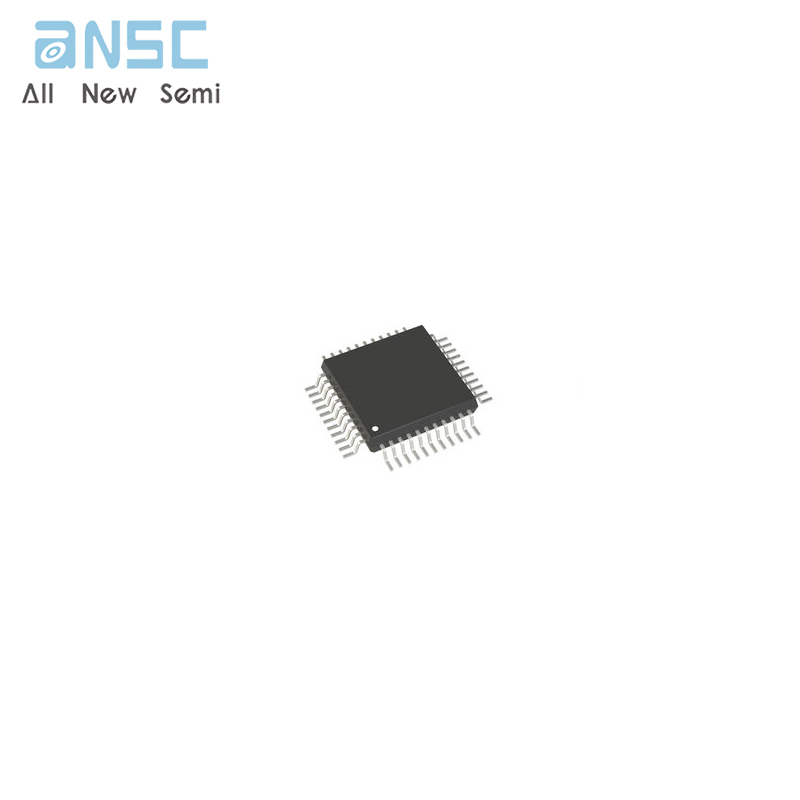

Product Photos

For more product information, please download the PDF
