Hot-selling and scarce AD7524JRZ 8-Bit Buffered Multiplying DAC SOP16 spot stock

Product Descriptions

The AD7524 is a low cost, 8-bit monolithic CMOS DACdesigned for direct interface to most microprocessors.

Basically an 8-bit DAC with input latches, the AD7524’s loadcycle is similar to the“write” cycle of a random accessmemory. Using an advanced thin-film on CMOS fabricationprocess, the AD7524 provides accuracy to 1/8 LSB with a typical power dissipation of less than 10 milliwatts.

A newly improved design eliminates the protection Schottkypreviously required and guarantees TTL compatibility whenusing a +5 V supply. Loading speed has been increased forcompatibility with most microprocessors.

Featuring operation from +5 V to +15 V, the AD7524 interfaces directly to most microprocessor buses or output ports.

Excellent multiplying characteristics (2- or 4-quadrant) makethe AD7524 an ideal choice for many microprocessor controlled gain setting and signal control applications.

Product Features

Microprocessor Compatible (6800, 8085, Z80, Etc.)

TTL/CMOS Compatible Inputs

On-Chip Data Latches

Endpoint Linearity

Low Power Consumption

Monotonicity Guaranteed (Full Temperature Range)

Latch Free (No Protection Schottky Required)

Product Applications

Microprocessor Controlled Gain Circuits

Microprocessor Controlled Attenuator Circuits

Microprocessor Controlled Function Generation

Precision AGC Circuits

Bus Structured Instruments

Product Specification

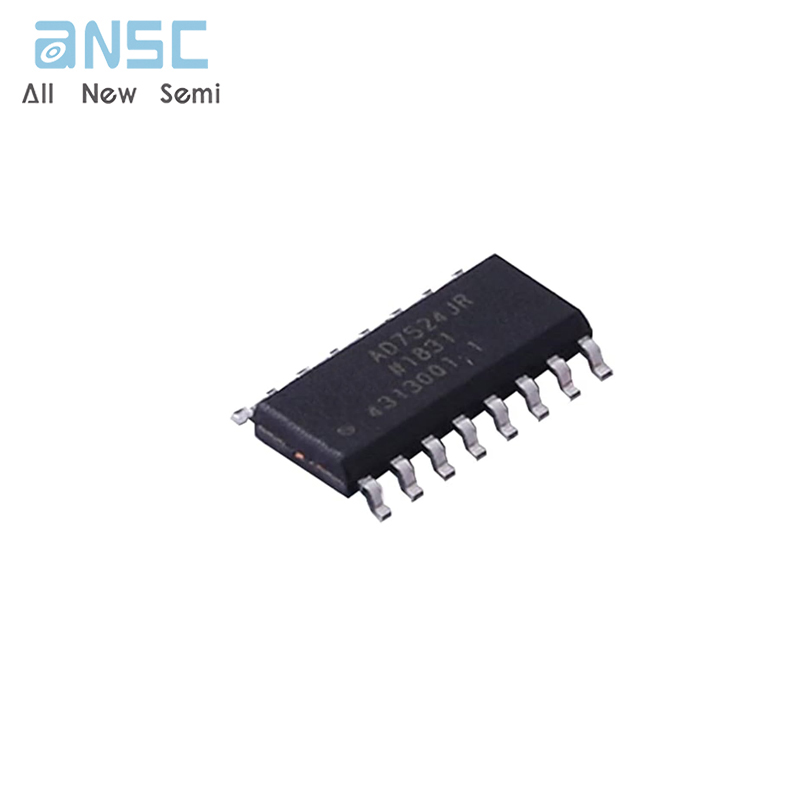

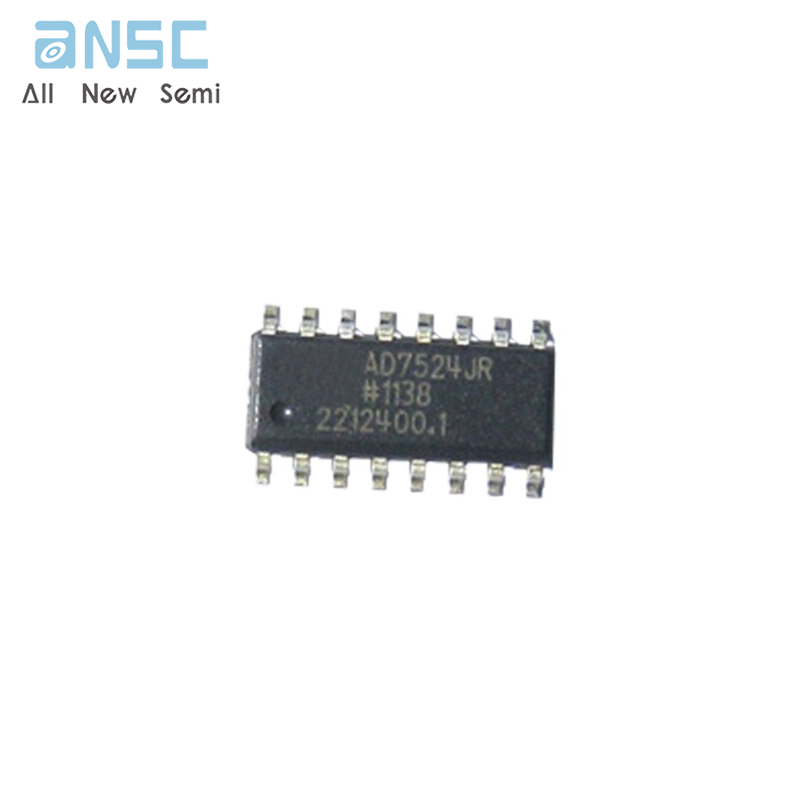

Product Photos

For more product information, please download the PDF
