Hot-selling and scarce CD54HC14F3A High-Speed CMOS Logic Hex Inverting Schmitt Trigger CDIP14 spot stock

Product Descriptions

The’HC14 and’HCT14 each contain six inverting Schmitttriggers in one package .​

Product Features

•  Unlimited Input Rise and Fall Times

•  Exceptionally High Noise Immunity

•  Fanout (Over Temperature Range)

-  Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads

-  Bus Driver Outputs  . . . . . . . . . . . . . 15 LSTTL Loads

•  Wide Operating Temperature Range      -55o C to 125o C

•  Balanced Propagation Delay and Transition Times

•  Significant Power Reduction Compared to LSTTL Logic ICs

•  HC Types

-  2V to 6V Operation

-  High Noise Immunity: N IL = 30%, N IH = 30% of V CC at V CC = 5V

•  HCT Types

-  4.5V to 5.5V Operation

-  Direct LSTTL Input Logic Compatibility,V IL= 0.8V (Max),V IH = 2V (Min)

-  CMOS Input Compatibility, I l≤ 1µA at VOL,VOH

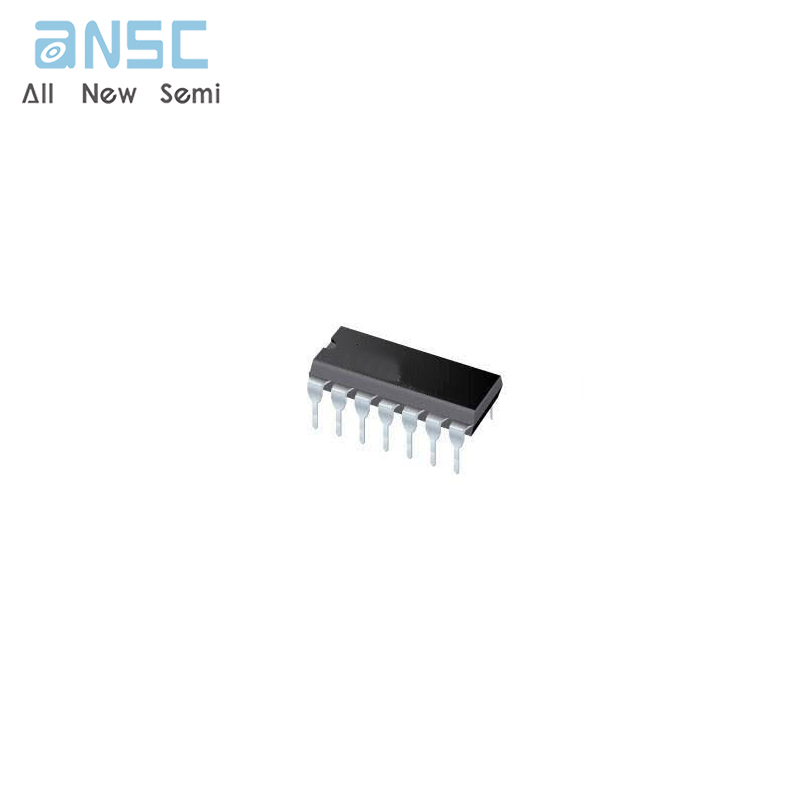

Product Photos
