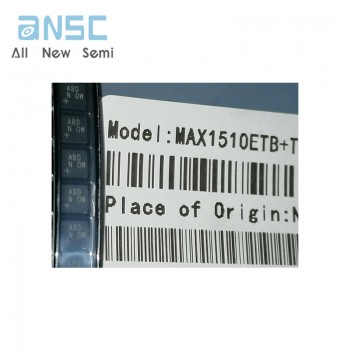

Hot selling One stop electronic component supply MAX1510ETB+T Low-Voltage DDR Linear Regulator Thermal Fault Protection 10-TDFN

Manufacturer Product Number

MAX1510ETB+T

Description

LDO Regulator Pos 0.5V to 1.5V 3A 10-Pin TDFN EP T/R

Package Condition

T/R

Datasheet

MAX1510ETB+T

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Descriptions

The MAX1510/MAX17510 DDR linear regulators source and sink up to 3A peak (typ) using internal n-channel MOSFETs. These linear regulators deliver an accurate 0.5V to 1.5V output from a low-voltage power input (VIN = 1.1V to 3.6V). The

MAX1510/MAX17510 use a separate 3.3V bias supply to power the control circuitry and drive the internal n-channel MOSFETs.

The MAX1510/MAX17510 provide current and thermal limits to prevent damage to the linear regulator. Additionally, the MAX1510/MAX17510 generate a power-good (PGOOD) signal to indicate that the output is in regulation.

During startup, PGOOD remains low until the output is in regulation for 2ms (typ). The internal soft-start limits the input surge current.

The MAX1510/MAX17510 power the active-DDR termination bus that requires a tracking input reference.

The devices can also be used in low-power chipsets and graphics processor cores that require dynamically adjustable output voltages. The MAX1510/MAX17510 are available in a 10-pin, 3mm x 3mm thin DFN package.

Product Applications

● Notebook/Desktop Computers

● DDR Memory Termination

● Active Termination Buses

● Graphics Processor Core Supplies

● Chipset/RAM Supplies as Low as 0.5V

Product Benefits and Features

● Internal Power MOSFETs with Current Limit (3A, typ)

● Fast Load-Transient Response

● External Reference Input with Reference Output Buffer

● 1.1V to 3.6V Power Input

● ±15mV (max) Load-Regulation Error

● Thermal-Fault Protection

● Shutdown Input

● Power-Good Window Comparator with 2ms (typ) Delay

● Small, Low-Profile 10-Pin, 3mm x 3mm TDFN Package

● Ceramic or Polymer Output Capacitors

Specifications

Attribute	Attribute value
ANSM-Part#	ANSM-MAX1510ETB+T
Category	Integrated Circuits (ICs)
	Power Management (PMIC)
	Special Purpose Regulators
Mfr	-
Series	-
Package	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel®
Product Status	Active
Applications	Converter, DDR
Voltage - Input	1.1V ~ 3.6V
Number of Outputs	1
Voltage - Output	0.5V ~ 1.5V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	10-WFDFN Exposed Pad
Supplier Device Package	10-TDFN (3x3)
Base Product Number	MAX1510
