Hot sale Original LM317MDT-TR IC REG LINEAR POS ADJ 500MA DPAK Linear Voltage Regulator IC Positive Adjustable 1 Output
Manufacturer Product Number
LM317MDT-TR
Description
Original LM317MDT-TR IC REG LINEAR POS ADJ 500MA DPAK Linear Voltage Regulator IC Positive Adjustable 1 Output
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

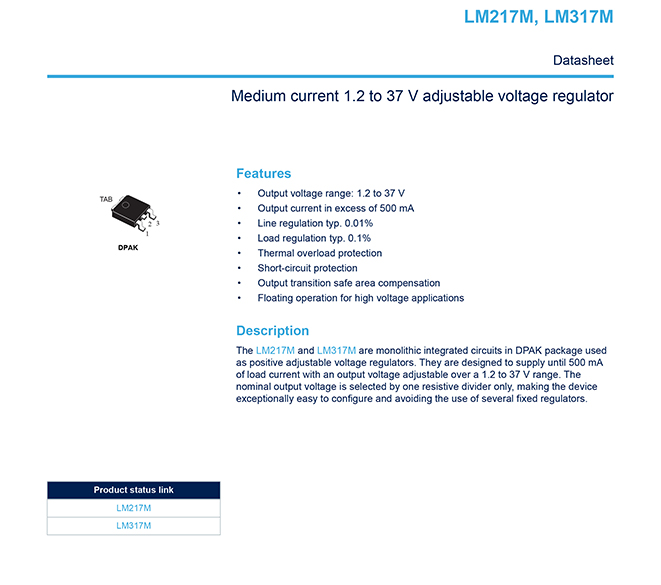

| Description The LM217M and LM317M are monolithic integrated circuits in DPAK package used as positive adjustable voltage regulators. They are designed to supply until 500 mA of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by one resistive divider only, making the device exceptionally easy to configure and avoiding the use of several fixed regulators. Features ● Output voltage range: 1.2 to 37 V ● Output current in excess of 500 mA ● Line regulation typ. 0.01 ● Load regulation typ. 0.1 ● Thermal overload protection ● Short-circuit protection ● Output transition safe area compensation ● Floating operation for high voltage applications |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- LM317MDT-TR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 37V |
| Voltage Dropout (Max) | - |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 80dB ~ 65dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |

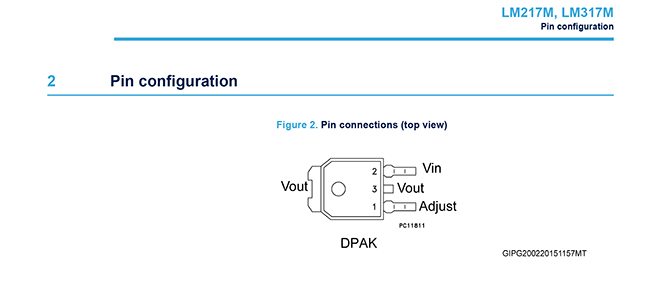

| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Base Product Number | LM317 |

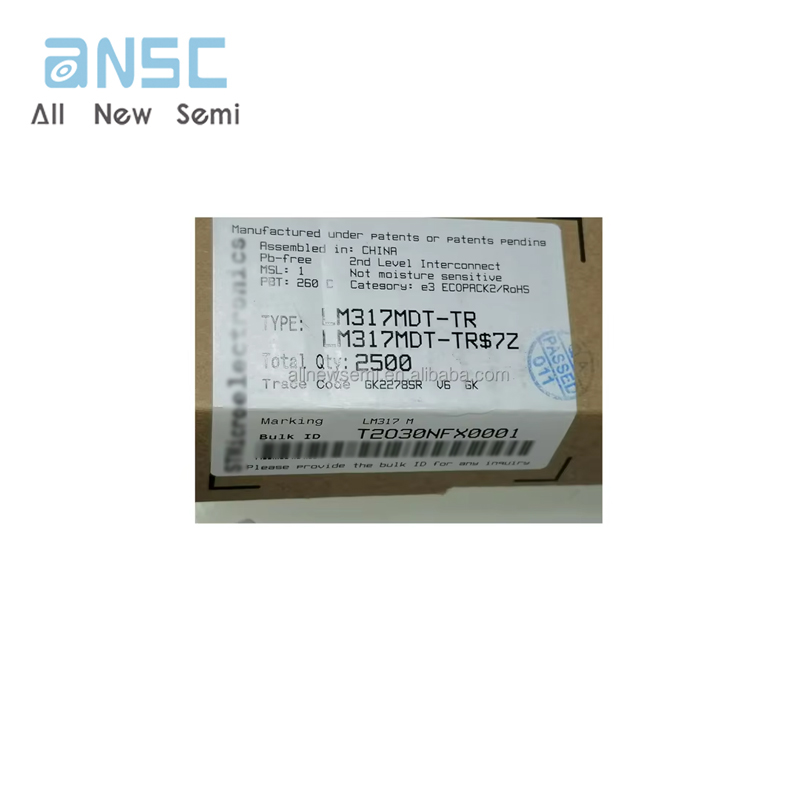

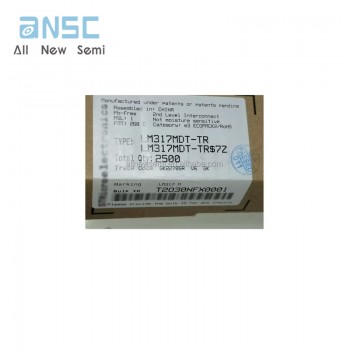

Actual image of the product
Product datasheet
For more information, please download
