Hot-selling and scarce MCZ33291EGR2 Eight-Output Switch with Serial Peripheral Interface I/O SOP24 spot stock

Product Descriptions

The 33291 device is an eight-output, low-side power switch with 8- bit serial input control. The 33291 is a versatile circuit designed for  automotive applications, but is well suited for other environments. The  33291 incorporates SMARTMOS technology, with CMOS logic,  bipolar/MOS analog circuitry, and DMOS power MOSFETs. The 33291  interfaces directly with a microcontroller to control various inductive or  incandescent loads.

The circuit’s innovative monitoring and protection features include  very low standby current, SPI cascade fault reporting capability,  internal 53 V clamp on each output, output-specific diagnostics, and  independent shutdown of outputs.

The device is parametrically specified over an ambient temperature  range of -40°C ≤ TA ≤ 125°C and 9.0 V ≤ VPWR ≤ 16 V supply.

Product Features

• Designed to Operate Over Wide Supply Voltages of 5.5 V to 26.5 V

• Interfaces to Microprocessor Using 8-Bit SPI I/O Protocol up to 3.0MHz

• 1.0 A Peak Current Outputs with Maximum RDS(ON) of 1.6 Ω at TJ - 150°C

• Outputs Current-Limited to Accommodate In-Rush Currents Associated with Switching Incandescent Loads

• Output Voltages Clamped to 53 V During Inductive Switching

• Maximum Sleep Current (IPWR) of 25 μA

• Maximum of 4.0 mA IDD During Operation

• Pb-Free Packaging Designated by Suffix Code EG

Product Specification

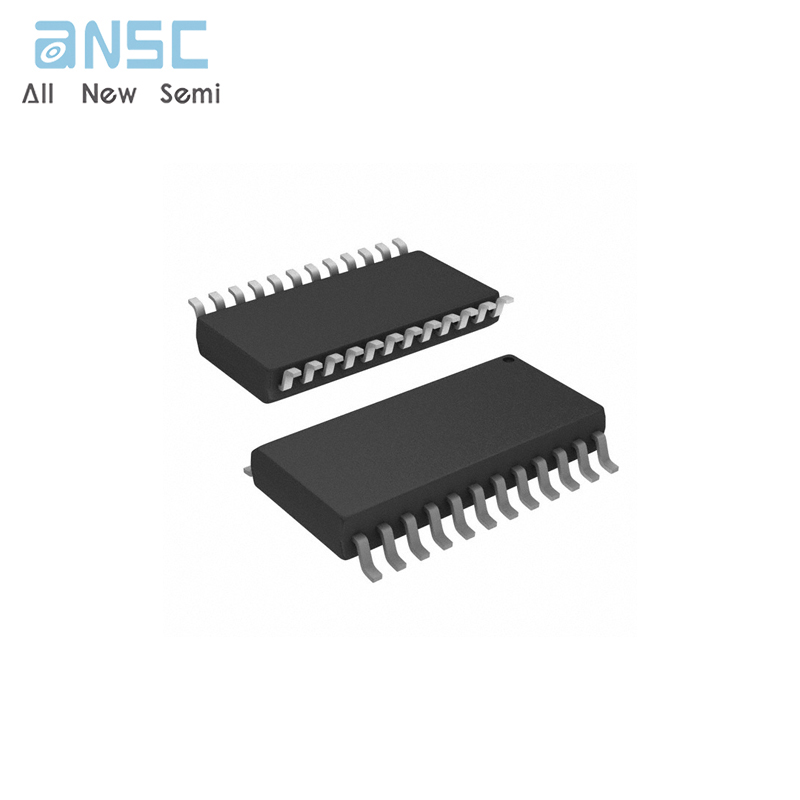

Product Photos

For more product information, please download the PDF
