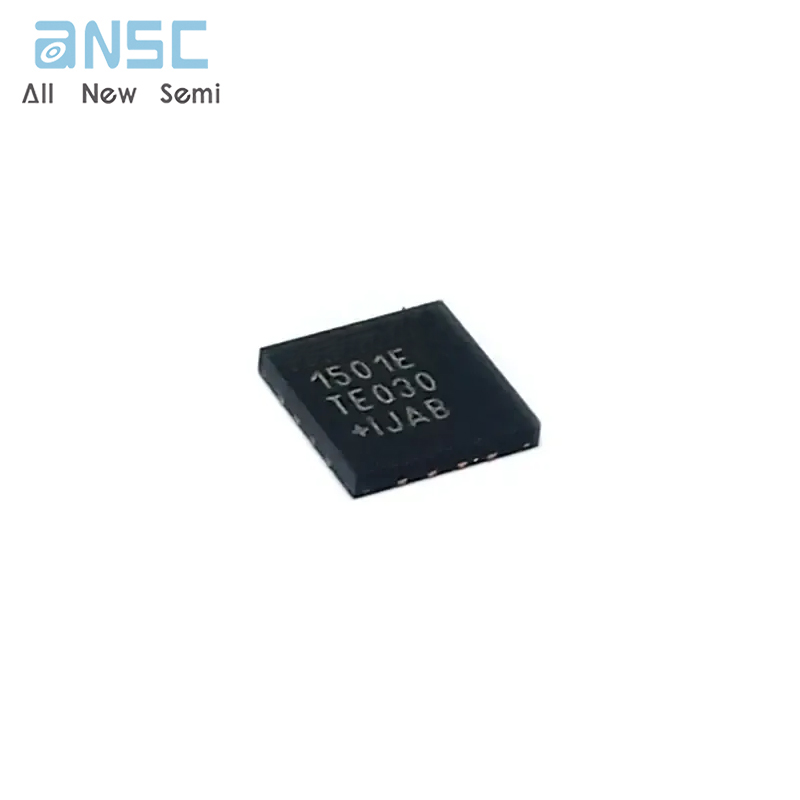

MAX1501ETE+T Highly Integrated, Linear Battery Charger with Thermal Regulation for Portable Applications QFN16 spot stock

Product Descriptions

The MAX1501 intelligent, constant-current, constantvoltage (CCCV), temperature-regulated battery charger charges a single lithium-ion (Li+) cell or three-cell NiMH/NiCd batteries. The device integrates the currentsense resistor, PMOS pass element, and thermalregulation circuitry, while eliminating the reverseblocking Schottky diode to create the simplest charging solution for hand-held equipment.

For single-cell Li+ batteries, the MAX1501 functions as a stand-alone charger to control the charging sequence from the prequalification state through fast charge, topoff, and charge termination. With 3-cell NiMH/NiCd batteries, the MAX1501 requires collaboration with a microcontroller to determine the best charging algorithm. Proprietary thermal-regulation circuitry limits the die temperature when fast charging or while exposed to high ambient temperatures, allowing maximum charging current without damaging the charger. The MAX1501 continually supplies a regulated output voltage under no-battery conditions, allowing battery changing without interrupting system power.

The device achieves high flexibility by providing an adjustable fast-charge current, top-off current, safety timer (disabled in the MAX1501Z), and thermal-regulation setpoint. Other features include input power detection (ACOK) and input under-/overvoltage protection. The MAX1501 provides active-low control inputs.

The MAX1501 accepts a 4.5V to 13V supply, but  disables charging when the input voltage exceeds 6.5V, preventing excessive power dissipation. The MAX1501 operates over the extended temperature range (-40°C to +85°C) and is available in a compact 16-pin thermally enhanced 5mm x 5mm thin QFN  package with 0.8mm profile.

Product Features

♦ Stand-Alone 1-Cell Li+ Charging, Microprocessor Controlled 3-Cell NiMH/NiCd Charging

♦ No FET, Reverse-Blocking Diode, or Current Sense Resistor Required

♦ 1.4A (max) Programmable Fast-Charge Current

♦ +95°C, +115°C, and +135°C Proprietary Programmable Die Temperature Regulation Control

♦ 4.5V to 13V Input Voltage Range with Input Overvoltage (OVLO) Protection Above 6.5V

♦ Programmable Top-Off Current Threshold: 10%,20%, or 30% of the Fast-Charge Current

♦ Charge-Current Monitor for Fuel Gauging

♦ Programmable Safety Timer (3, 4.5, or 6 hours)

♦ Input Power Detection Output (ACOK) and Charge Enable Input (CHGEN)

♦ Automatic Recharge

♦ Digital Soft-Start Limits Inrush Current

♦ Charge Status Outputs for LEDs or µP Interface

Product Applications

Cellular and Cordless Phones

PDAs

Digital Cameras and MP3 Players

USB Appliances

Charging Cradles and Docks

Bluetooth™ Equipment

Product Specification

Product Photos

For more product information, please download the PDF
