Hot sale Original TPS54540DDA PMIC IC Buck Split Rail Switching Regulator IC Positive Adjustable 0.8V 1 Output 5A 8-SO PowerPad

Manufacturer Product Number
TPS54540DDA
Description

Original TPS54540DDA PMIC IC Buck Split Rail Switching Regulator IC Positive Adjustable 0.8V 1 Output 5A 8-SO PowerPad Surface Mount

Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Product Overview
The TPS54540 is a step down regulator featuring a high side MOSFET that operates at 42 V, 5 A. As per ISO 7637, the device can withstand load dump pulses of up to 45V. Simple external compensation and versatile component selection are provided via current mode control. The no load supply current is decreased to 146 A in a low ripple pulse skip mode. When the enable pin is pushed low, the shutdown supply current is decreased to 2 A.

Internally, undervoltage lockout is set to 4.3 V, but it can be raised by connecting an enable pin. To ensure a controlled start up and prevent overrun, the output voltage start up ramp is internally controlled. It is possible to optimize either efficiency or external component size with a large switching frequency range. Cycle after cycle, an output current limit is imposed. Internal and exterior components are protected during an overload state by frequency foldback and thermal shutdown. The 8-terminal thermally improved HSOP PowerPADTM package for the TPS54540 is available.



Product  Features

High Efficiency at Light Loads with Pulse Skipping Eco-mode?

92-mΩ High-Side MOSFET

146 μA Operating Quiescent Current and 2 μA Shutdown Current

100 kHz to 2.5 MHz Fixed Switching Frequency

Synchronizes to External Clock

Low Dropout at Light Loads with Integrated BOOT Recharge FET

Adjustable UVLO Voltage and Hysteresis

0.8 V 1% Internal Voltage Reference

8-Terminal HSOP with PowerPAD? Package

–40°C to 150°C TJ Operating Range



Product Applications

Industrial Automation and Motor Control

Vehicle Accessories: GPS, Entertainment

USB Dedicated Charging Ports and Battery Chargers

12 V and 24 V Industrial, Automotive and Communications Power Systems

Product Description

TYPE DESCRIPTION
ANSC PART# ANSC - TPS54540DDA
Category Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
Mfr Original
Series Eco-Mode™
Packaging Tube
Part Status Not For New Designs
Function Step-Down
Output Configuration Positive
Topology Buck, Split Rail
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 42V
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 41.1V
Current - Output 5A
Frequency - Switching 100kHz ~ 2.5MHz
Synchronous Rectifier No
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SO PowerPad
Base Product Number TPS54540

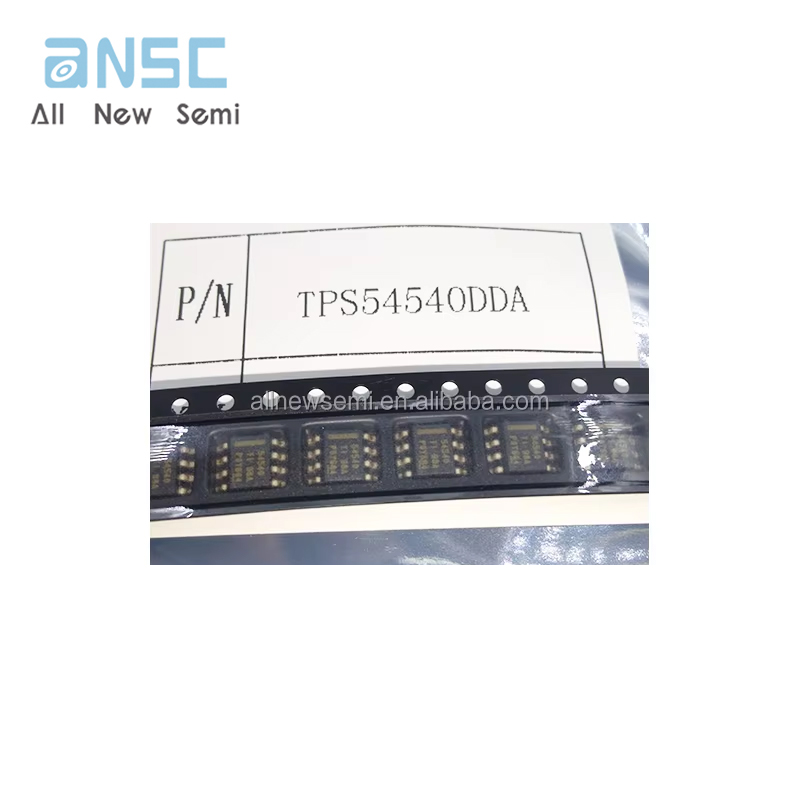

Actual image of the product

TPS54540DDA

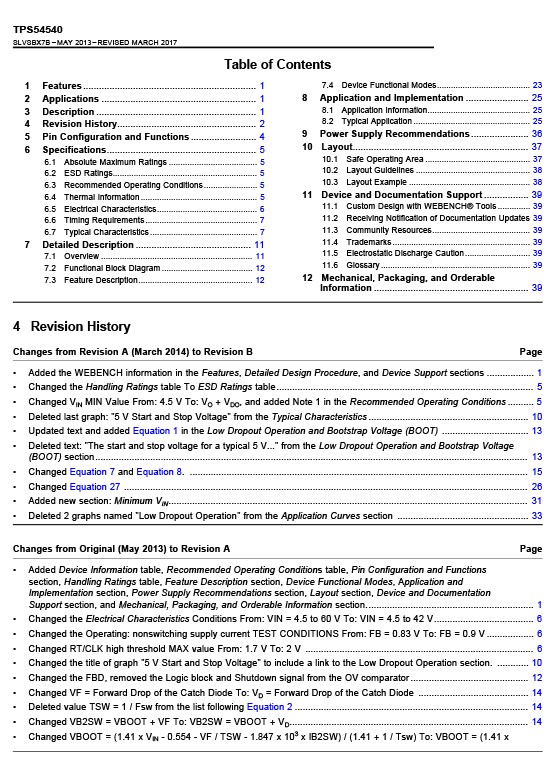

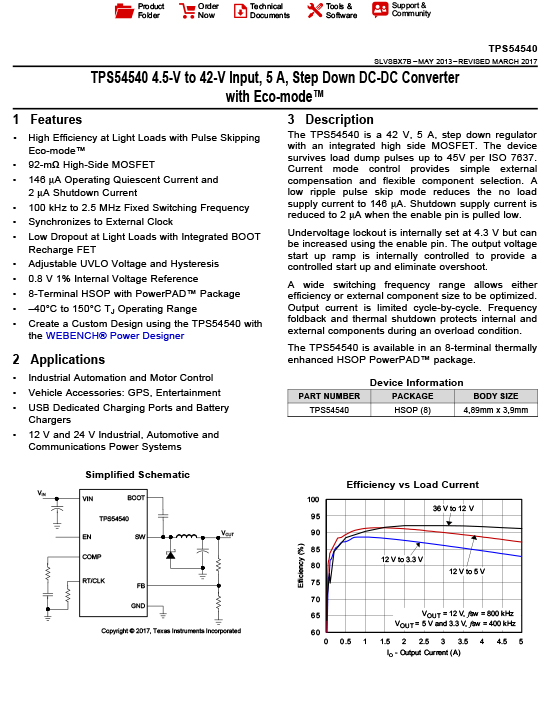

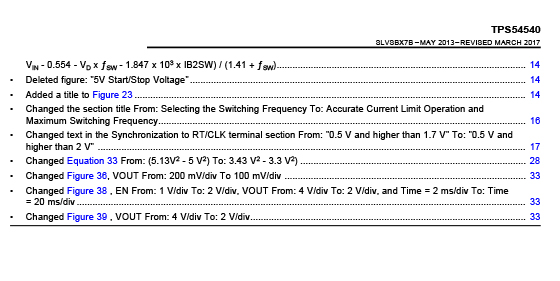

Product datasheet

For more information, please download
