Hot-selling and scarce NCP5369MNR2G Integrated Driver and MOSFET QFN spot stock
Manufacturer Product Number
NCP5369MNR2G
Description
NCP5369MNR2G Integrated Driver and MOSFET QFN spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The NCP5369 integrates a MOSFET driver, high−side MOSFET and low−side MOSFET into a 6 mm x 6 mm 40−pin QFN package. The driver and MOSFETs have been optimized for high−current DC−DC buck power conversion applications. The NCP5369 integrated solution greatly reduces package parasitics and board space compared to a discrete component solution.
Product Features
• Capable of Switching Frequencies Up to 1 MHz
• Capable of Output Currents Up to 35 A
• Internal Bootstrap Diode
• Zero Current Detection
• Undervoltage Lockout
• Internal Thermal Warning /Thermal Shutdown
• These are Pb−Free Devices
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NCP5369MNR2G |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Full, Half-Bridge (H Bridge) Drivers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Current - Output / Channel | 35A |
| Current - Peak Output | 50A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 25V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Status Flag |
| Fault Protection | Over Temperature, Shoot-Through, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (6x6) |
| Base Product Number | NCP5369 |

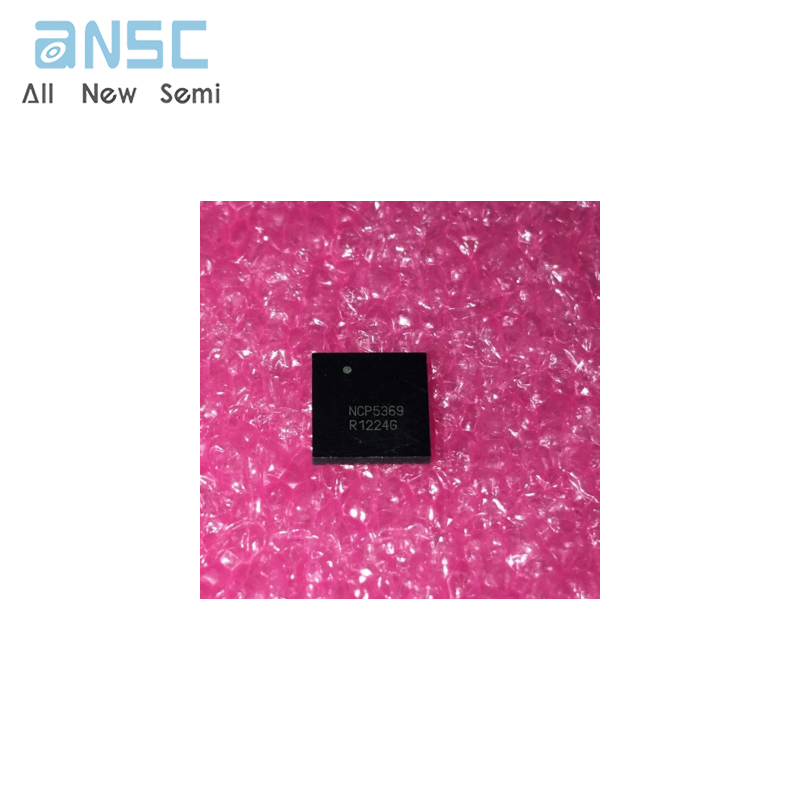

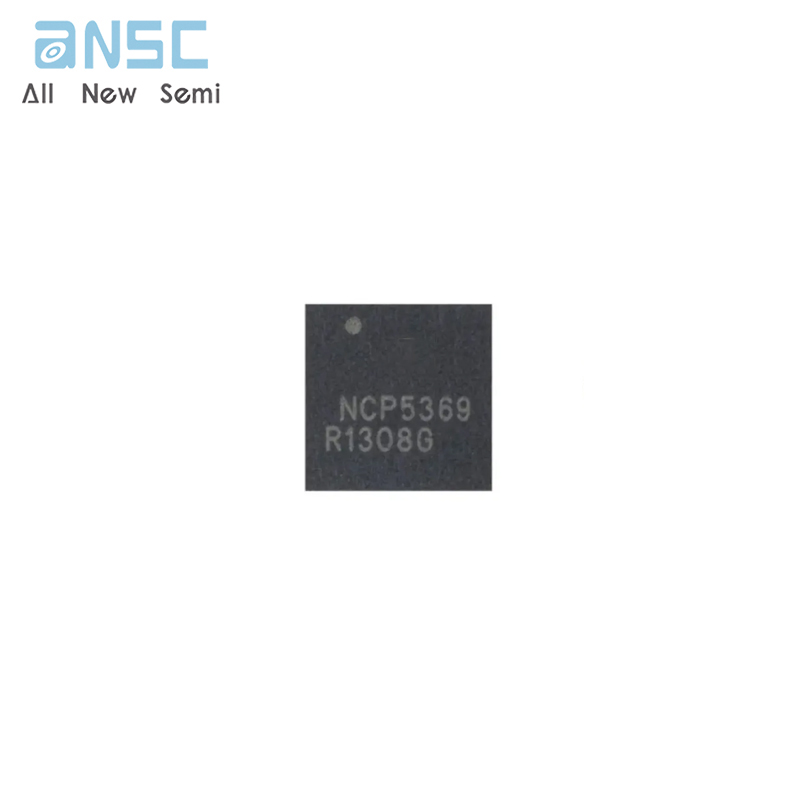

Product Photos
For more product information, please download the PDF
