Hot-selling and scarce ADP162AUJZ-3.0-R7 Ultralow Quiescent Current,150 mA, CMOS Linear Regulators SOT23-5 spot stock

Product Descriptions

The ADP160/ADP161/ADP162/ADP163 are ultralow quiescent current, low dropout, linear regulators that operate from 2.2 V to 5.5 V and provide up to 150 mA of output current.The low195 mV dropout voltage at 150 mA load improves efficiency and allows operation over a wide input voltage range.

The ADP16x are specifically designed for stable operation with a tiny 1 μF ± 30% ceramic input and output capacitors to meet the requirements of high performance, space-constrained applications.

The ADP160 is available in 15 fixed output voltage options, ranging from 1.2 V to 4.2 V. The ADP160/ADP161 also include a switched resistor to discharge the output automatically when​ the LDO is disabled. The ADP162 is identical to the ADP160 but does not include the output discharge function.

Product Features

Ultralow quiescent current

IQ = 560 nA with 0 μA load

IQ = 860 nA with 1 μA load

Stable with 1 μF ceramic input and output capacitors

Maximum output current: 150 mA

Input voltage range: 2.2 V to 5.5 V

Low shutdown current: <50 nA typical

Low dropout voltage: 195 mV @ 150 mA load

Initial accuracy: ±1%

Accuracy over line, load, and temperature: ±3.5%

15 fixed output voltage options: 1.2 V to 4.2 V

Adjustable output available

PSRR performance of 72 dB @ 100 Hz

Current limit and thermal overload protection

Logic-control enable

Integrated output discharge resistor

5-lead TSOT package

4-ball, 0.5 mm pitch WLCSP

Product Applications

Mobile phones

Digital cameras and audio devices

Portable and battery-powered equipment

Post dc-to-dc regulation

Portable medical devices

Product Specifications

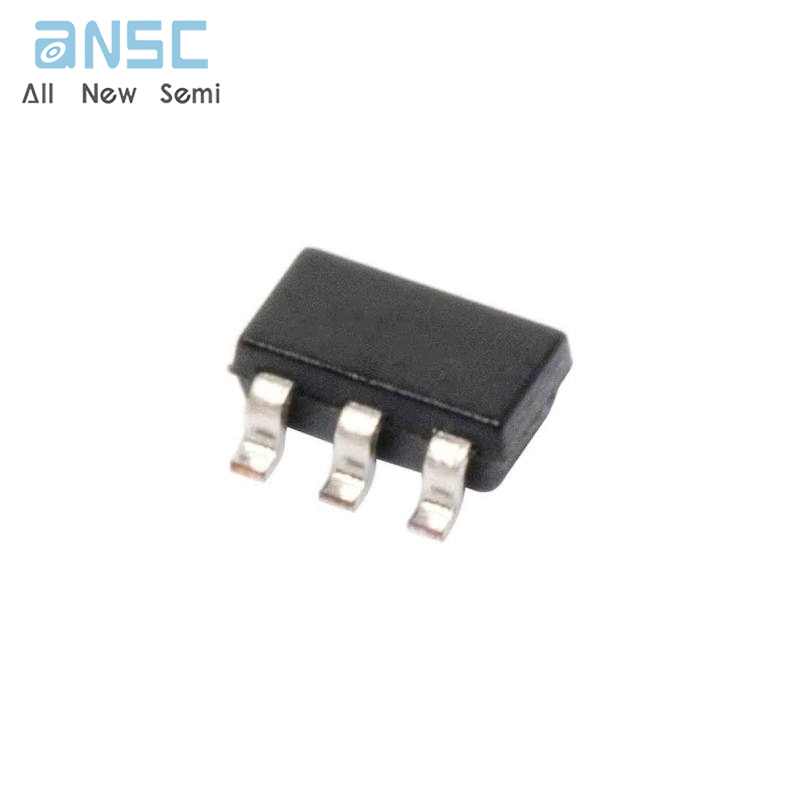

Product Photos

For more product information, please download the PDF
