Hot-selling and scarce AD8210WYRZ High Voltage, Bidirectional Current Shunt Monitor SOP8 spot stock

Product Descriptions

The AD8210 is a single-supply, difference amplifier ideal for amplifying small differential voltages in the presence of large common-mode voltages. The operating input common-mode voltage range extends from −2 V to +65 V. The typical supply voltage is 5 V.

The AD8210 is offered in a SOIC package. The operating temperature range is −40°C to +125°C.

Excellent ac and dc performance over temperature keep errors in the measurement loop to a minimum. Offset drift and gain drift are guaranteed to a maximum of 8 µV/°C and 20 ppm/°C, respectively.

The output offset can be adjusted from 0.05 V to 4.9 V with a 5 V supply by using the VREF 1 pin and the VREF2 pin. With the VREF 1 pin attached to the V+ pin and the VREF2 pin attached to the GND pin,the output is set at half scale.Attaching both VREF 1 and VREF2 to GND causes the output to be unipolar, starting near ground. Attaching both VREF 1 and VREF2 to V+ causes the output to be unipolar, starting near V+. Other offsets can be obtained by applying an external voltage to VREF 1 and VREF2.

Product Features

±4000 V HBM ESD

High common-mode voltage range

−2 V to +65 V operating

−5 V to +68 V survival

Buffered output voltage

5 mA output drive capability

Wide operating temperature range: −40°C to +125°C

Ratiometric half-scale output offset

Excellent ac and dc performance

1 µV/°C typical offset drift

10 ppm/°C typical gain drift

120 dB typical CMRR at dc

80 dB typical CMRR at 100 kHz

Available in 8-lead SOIC

Product Applications

Current sensing

Motor controls

Transmission controls

Diesel injection controls

Engine management

Suspension controls

Vehicle dynamic controls

DC-to-dc converters

Product Specifications

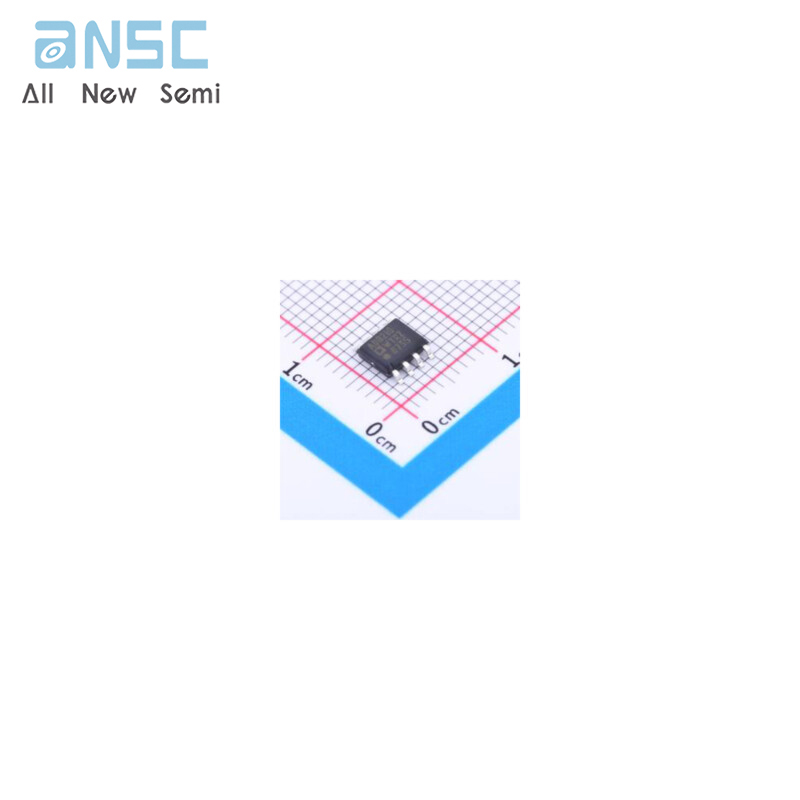

Product Photos

For more product information, please download the PDF
