Hot-selling and scarce AP2411S-13 2.0A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH WITH LATCH-OFF SOP8 spot stock

Product Descriptions

The AP2401 and AP2411 are single channel current-limitedintegrated high-side power switches optimized for Universal SerialBus (USB)and other hot-swap applications .The family of devicescomplies with USB standards and is available with both polarities ofenable input .

The devices have fast short-circuit response time for improved overallsystem robustness,and have integrated output discharge function toensure completely controlled discharging of the output voltagecapacitor .They provide a complete protection solution for applicationssubject to heavy capacitive loads and the prospect of short circuit,and offer reverse current blocking,over-current,over-temperatureand short-circuit protection, as well as controlled rise time andunder-voltage lockout functionality .A 7ms deglitch capability on theopen-drain Flag output prevents false over-current reporting and doesnot require any external components .AP2401 and AP2411 will belatched off after 7ms deglitch .

All devices are available in SO-8, MSOP-8, MSOP-8EP,U-DFN3030-8 and U-DFN2020-6 packages .

Product Features

 Single Channel Current-Limited Power Switch

 Output Discharge Function

 Output Current Latch-Off when OCP Triggered

 Fast Short-Circuit Response Time:2µs

 2.5A Accurate Current Limiting

 Reverse Current Blocking

 70mΩOn-Resistance

 Input Voltage Range:2.7V -5.5V

 Built-In Soft-Start with 0.6ms Typical Rise Time

 Over-Current and Thermal Protection

 Fault Report (FLG)with Blanking Time (7ms typ)

 ESD Protection:2kV HBM,200V MM

 Active Low (AP2401)or Active High (AP2411)Enable

 Ambient Temperature Range:-40°C to +85°C

 SO-8,MSOP-8,MSOP-8EP,U-DFN3030-8 and U-DFN2020-6:

Available in“Green”Molding Compound (No Br,Sb)

 Lead-Free Finish;RoHS Compliant (Notes 1 &2)

 Halogen and Antimony Free .“Green”Device (Note 3)

 UL Recognized,File Number E322375

 IEC60950-1 CB Scheme Certified

Product Applications

 LCD TVs &Monitors

 Set-Top-Boxes,Residential Gateways

 Laptops,Desktops,Servers,e-Readers

 Printers,Docking Stations,HUBs

Product Specification

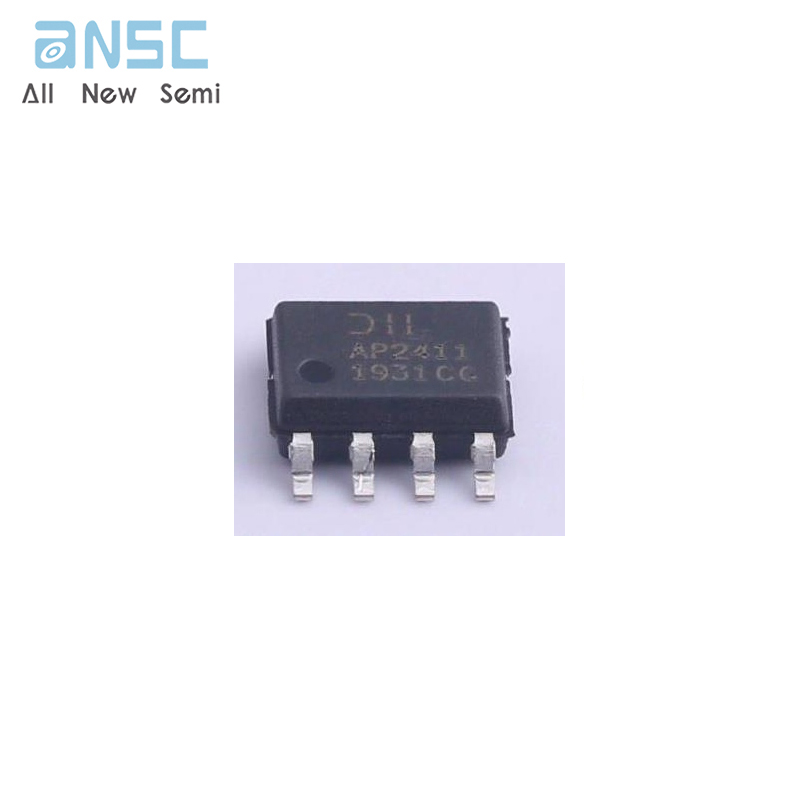

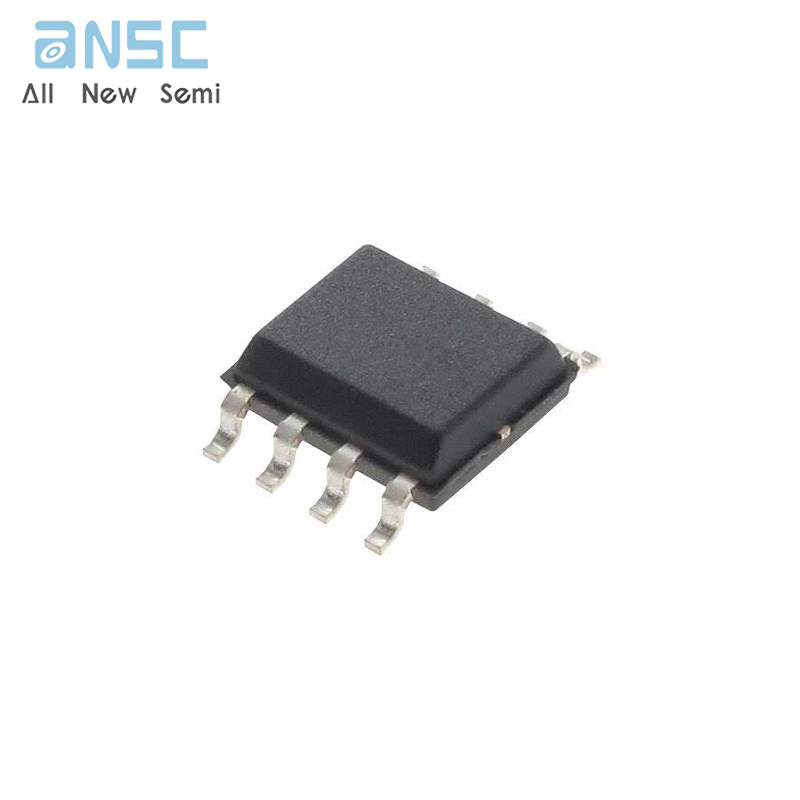

Product Photos

For more product information, please download the PDF
