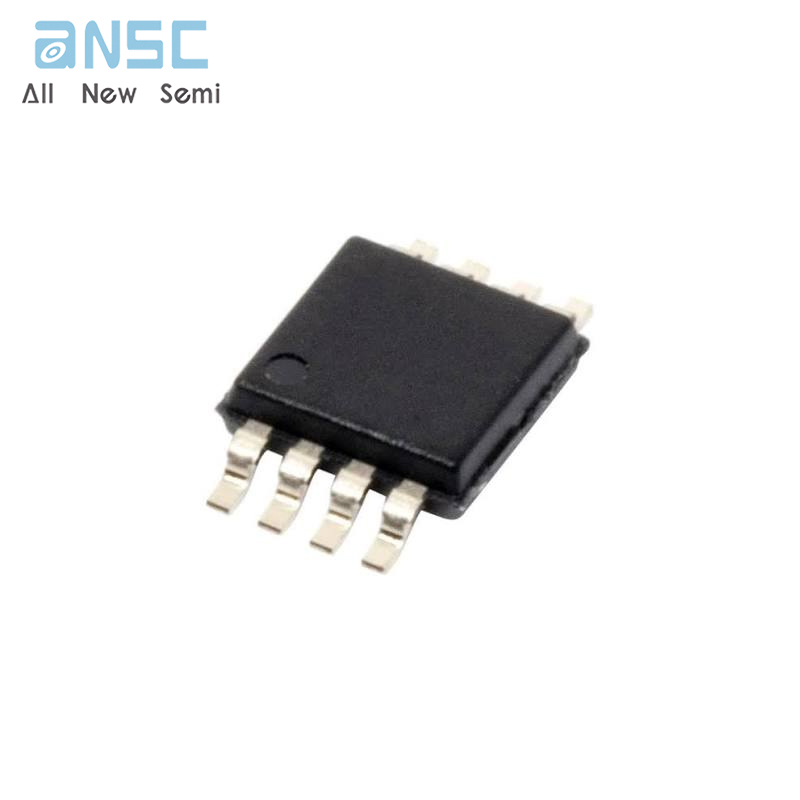

Hot-selling and scarce LTC4446EMS8E-PBF Half-Bridge Gate Driver IC Non-Inverting 8-MSOP-EP spot stock

Product Descriptions

The LTC^®4446 is a high frequency high voltage gate driverthat drives two N-channel MOSFETs in a DC/DC converterwith supply voltages up to 100V. The powerful driver capability reduces switching losses in MOSFETs with highgate capacitance . The LTC4446’s pull-up for the top gatedriver has a peak output current of 2.5A and its pull-downhas an output impedance of 1.2Ω.The pull-up for the bottom gate driver has a peak output current of 3A and thepull-down has an output impedance of 0.55Ω.

The LTC4446 is configured for two supply-independentinputs .  The  high  side  input  logic  signal  is  internallylevel-shifted  to  the  bootstrapped  supply,  which  mayfunction at up to 114V above ground .

The LTC4446 contains undervoltage lockout circuits thatdisable the external MOSFETs when activated .

The LTC4446 is available in the thermally enhanced 8-leadMSOP package .

The LTC4446 does not have adaptive shoot-through protection . For similar drivers with adaptive shoot-throughprotection, please refer to the chart below.

Product Features

n Bootstrap Supply Voltage Up to 114V

n Wide V CCVoltage: 7.2V to 13.5V

n 2.5A Peak Top Gate Pull-Up Current

n 3A Peak Bottom Gate Pull-Up Current

n 1.2Ω Top Gate Driver Pull-Down

n 0.55Ω Bottom Gate Driver Pull-Down

n 5ns Top Gate Fall Time Driving 1nF Load

n 8ns Top Gate Rise Time Driving 1nF Load

n 3ns Bottom Gate Fall Time Driving 1nF Load

n 6ns Bottom Gate Rise Time Driving 1nF Load

n Drives Both High and Low Side N-Channel MOSFETs

n Undervoltage Lockout

n Thermally Enhanced 8-Pin MSOP Package

Product Applications

n Distributed Power Architectures

n Automotive Power Supplies

n High Density Power Modules

n Telecommunication Systems

Product Specification

Product Photos

For more product information, please download the PDF
