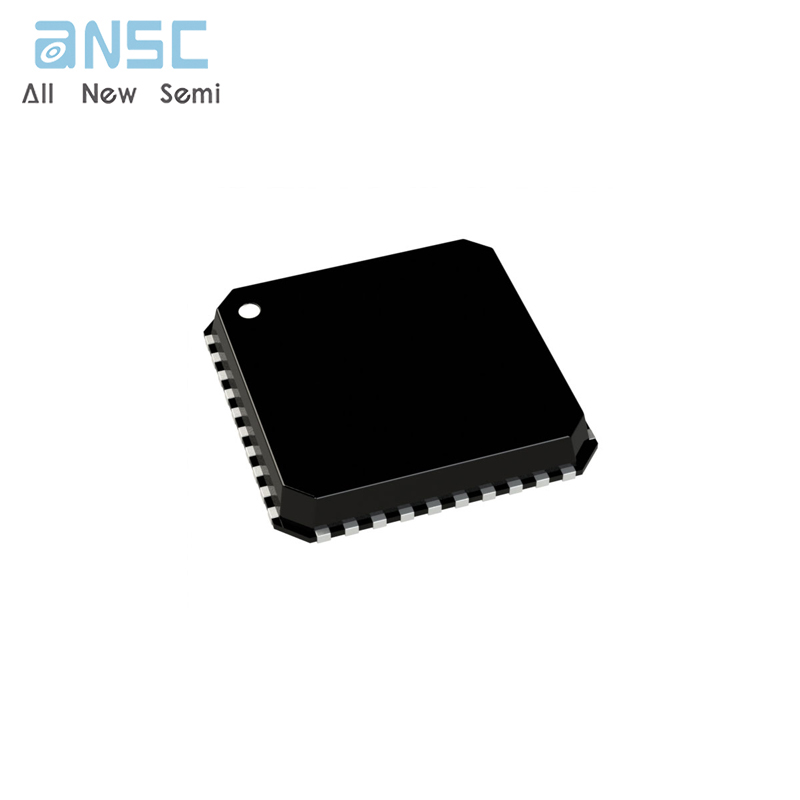

Hot-selling and scarce ADM1066ACPZ Super Sequencer with Margining Control and Auxiliary ADC Inputs QFN40 spot stock

Product Descriptions

The ADM1066 is a configurable supervisory/sequencing device that offers a single-chip solution for supplymonitoring and sequencing in multiple-supply systems .In additionto these functions, the ADM1066 integrates a 12-bit ADC andsix 8-bit voltage output DACs . These circuits can be used toimplement a closed-loop margining system that enables supplyadjustment by altering either the feedback node or reference ofa dc-to-dc converter using the DAC outputs .

Supply margining can be performed with a minimum of externalcomponents.The margining loop can be used for in-circuit testingof a board during production (for example,to verify board functionality at −5%of nominal supplies),or it can be used dynamicallyto accurately control the output voltage of a dc-to-dc converter.

Product Features

Complete supervisory and sequencing solution for up to

10 supplies

10 supply fault detectors enable supervision of supplies to

<0.5% accuracy at all voltages at 25°C

<1.0% accuracy across all voltages and temperatures

5 selectable input attenuators allow supervision of supplies to

14.4 V on VH

6 V on VP1 to VP4 (VPx)

5 dual-function inputs,VX1 to VX5 (VXx)

High impedance input to supply fault detector with

thresholds between 0.573 V and 1.375 V

General-purpose logic input

10 programmable driver outputs, PDO1 to PDO10 (PDOx)

Open-collector with external pull-up

Push/pull output, driven to VDDCAP or VPx

Open collector with weak pull-up to VDDCAP or VPx

Internally charge-pumped high drive for use with external

N-FET (PDO1 to PDO6 only)

​

Product Applications

Central office systems

Servers/routers

Multivoltage system line cards

DSP/FPGA supply sequencing

In-circuit testing of margined supplies

Product Specification

Product Photos

For more product information, please download the PDF
