Hot-selling and scarce TPS54672PWPR 6-A OUTPUT ACTIVE BUS TERMINATION SYNCHRONOUS PWM SWITCHER 28HTSSOP spot stock

Product Descriptions

As a member of the family of dc/dc regulators,theTPS54672  active  bus  termination  synchronous  PWMconverter  integrates  all  required  active  components .Included on the substrate with the listed features are a true,high  performance, voltage error amplifier that enablesmaximum  performance  and  flexibility  in  choosing  theoutput  filter  L  and  C  components;  an  under-voltagelockout circuit to prevent start-up until the input voltagereaches 3 V; a slow-start control to limit in-rush currents;and a status output to indicate valid operating conditions .

The TPS54672 is available in a thermally enhanced 28-pinTSSOP (PWP) PowerPAD package, which eliminatesbulky heatsinks . TI provides evaluation modules and theSWIFT designer software tool to aid in quickly achievinghigh-performance   power   supply   designs   to   meetaggressive equipment development cycles .

Product Features

Tracks Externally Applied Reference Voltage

30-mΩ, 12-A Peak MOSFET Switches for High Efficiency at 6-A Continuous Output Source or Sink Current

6% to 90% VIN Output Tracking Range

PWM Frequency Range:Fixed 350 kHz or Adjustable 280 to 700 kHz

Load Protected by Peak Current Limit and Thermal Shutdown

Integrated Solution Reduces Board Area and Component Count

Product Applications

DDR Memory Termination Voltage

Active Termination of GTL and STL High-Speed Logic Families

DAC Controlled High Current Output Stage

Precision Point of Load Power Supply

Product Specifications

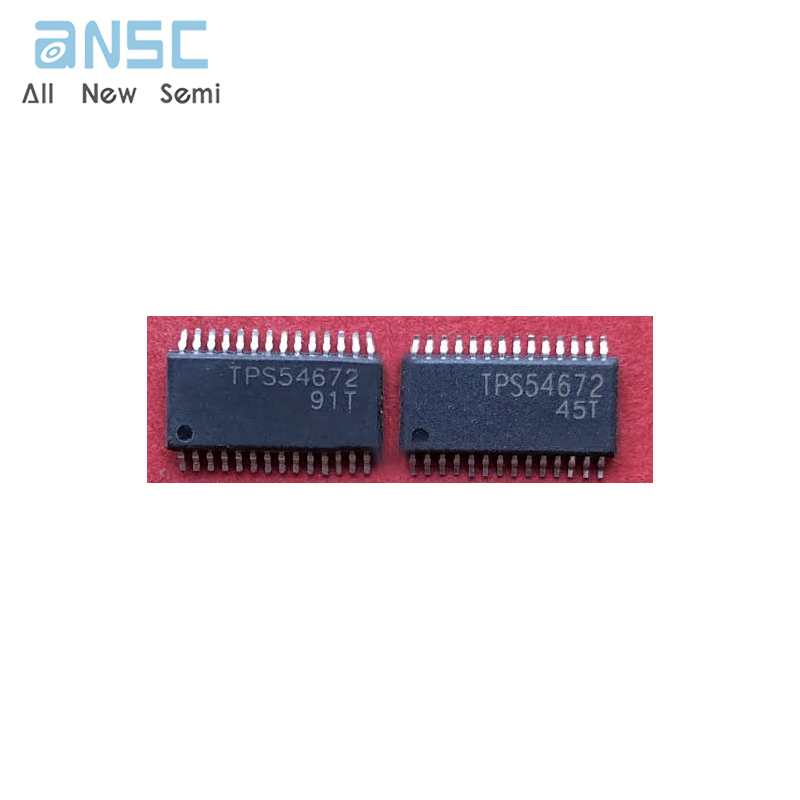

Product Photos

For more product information, please download the PDF
