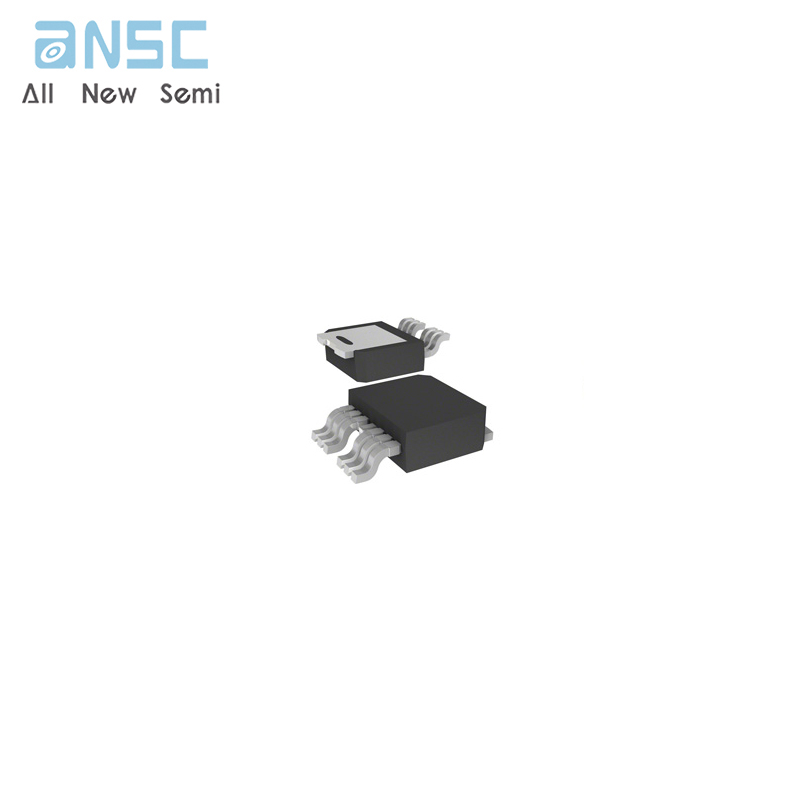

VN5E016MHTR-E 16 mΩ high-side driver with analog current sense for automotive applications 6-HPAK spot stock

Product Features

The VN5E016MH-E is a single channel high-sidedriver manufactured in the ST proprietaryVIPower™ M0-5 technology and housed in thetiny HPak package . The VN5E016MH-E isdesigned to drive 12 V automotive groundedloads delivering protection, diagnostics and easy3 V and 5 V CMOS compatible interface with anymicrocontroller.

The device integrates advanced protectivefunctions such as load current limitation, inrushand overload active management by powerlimitation, overtemperature shut-off with autorestart and overvoltage active clamp .

A dedicated analog current sense pin isassociated with every output channel in order toprovide enhanced diagnostic functions includingfast detection of overload and short-circuit toground through power limitation indication andovertemperature indication .

The current sensing and diagnostic feedback ofthe whole device can be disabled by pulling theCS_DIS pin high to allow sharing of the externalsense resistor with other similar devices .

Product Features

•    General

–   Inrush current active management by power limitation

–   Very low standby current

–   3.0 V CMOS compatible inputs

–   Optimized electromagnetic emissions

–   Very low electromagnetic susceptibility

–   In compliance with the 2002/95/EC European directive

•    Diagnostic functions

–   Proportional load current sense

–   High current sense precision for wide current range

–   Current sense disable

–   Overload and short to ground (power limitation) indication

–   Thermal shutdown indication

•    Protections

–   Undervoltage shutdown

–   Overvoltage clamp

–   Load current limitation

–   Self limiting of fast thermal transients

–   Protection against loss of ground and loss of V CC

–   Overtemperature shutdown with auto restart (thermal shutdown)

–   Reverse battery protected

–   Electrostatic discharge protection

Product Applications

•   All types of resistive, inductive and capacitive loads

•    Suitable as LED driver

Product Specifications

Product Photos

For more product information, please download the PDF
