Hot sale original electronics ADE7753ARSZRL IC ENERGY METERING 1PHASE 20SSOP Single Phase Meter IC 20-SSOP
Manufacturer Product Number
ADE7753ARSZRL
Description
ADE7753ARSZRL IC ENERGY METERING 1PHASE 20SSOP Single Phase Meter IC 20-SSOP
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

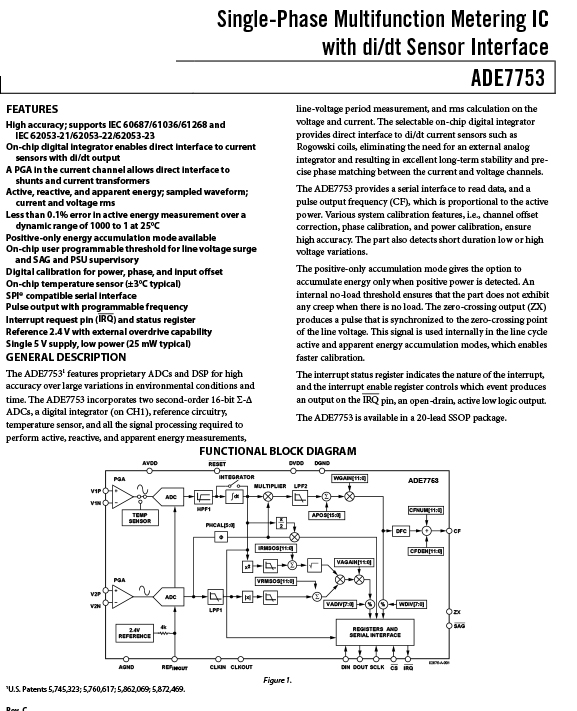

| GENERAL DESCRIPTION The ADE77531 features proprietary ADCs and DSP for high accuracy over large variations in environmental conditions and time. The ADE7753 incorporates two second-order 16-bit Σ-Δ ADCs, a digital integrator (on CH1), reference circuitry, temperature sensor, and all the signal processing required to perform active, reactive, and apparent energy measurements, line-voltage period measurement, and rms calculation on the voltage and current. The selectable on-chip digital integrator provides direct interface to di/dt current sensors such as Rogowski coils, eliminating the need for an external analog integrator and resulting in excellent long-term stability and precise phase matching between the current and voltage channels. FEATURES High accuracy; supports IEC 60687/61036/61268 and IEC 62053-21/62053-22/62053-23 On-chip digital integrator enables direct interface to current sensors with di/dt output A PGA in the current channel allows direct interface to shunts and current transformers Active, reactive, and apparent energy; sampled waveform; current and voltage rms Less than 0.1 error in active energy measurement over a dynamic range of 1000 to 1 at 25°C Positive-only energy accumulation mode available On-chip user programmable threshold for line voltage surge and SAG and PSU supervisory Digital calibration for power, phase, and input offset On-chip temperature sensor (±3°C typical) SPI® compatible serial interface Pulse output with programmable frequency Interrupt request pin (IRQ) and status register Reference 2.4 V with external overdrive capability Single 5 V supply, low power (25 mW typical) |
Product Description
| Type | Description |
| ANSC PART# | ANSC- ADE7753ARSZRL |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Energy Metering | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Input Impedance | 390kOhm |
| Measurement Error | 0.10 |
| Voltage - I/O High | 2.4V |
| Voltage - I/O Low | 0.8V |
| Current - Supply | 3mA |
| Voltage - Supply | 4.75 V ~ 5.25 V |
| Meter Type | Single Phase |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
| Base Product Number | ADE7753 |
