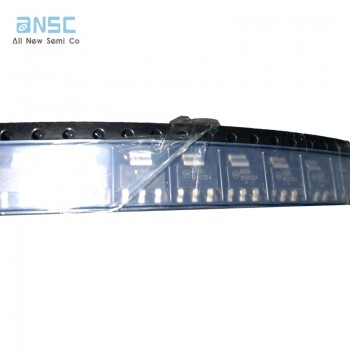

Hot sale Original NCV8402ASTT3G IC PWR DRIVER N-CHAN SOT223 Power Switch/Driver N-Channel 2A SOT-223 (TO-261)

Manufacturer Product Number

NCV8402ASTT3G

Description

Original NCV8402ASTT3G IC PWR DRIVER N-CHAN SOT223 Power Switch/Driver N-Channel 2A SOT-223 (TO-261)

Package Condition

Tape & Reel (TR) Cut Tape (CT)

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

The ON Semiconductor NCV8402ASTT3G is a surface-mount, general-purpose N-channel power MOSFET designed for automotive applications. This PMIC (Power Management IC) is part of the NCV8402 series and is RoHS3 compliant. It features a built-in transient, overcurrent, overvoltage, and thermal protection, ensuring reliable operation in harsh environments.

Product Features

· Auto Restart: The device automatically restarts in case of a fault, minimizing downtime and ensuring continuous operation.

· High Current Handling: The NCV8402ASTT3G can handle a maximum output current of 2A, making it suitable for demanding applications.

· Low Rds(on): The device's low drain-to-source resistance of 165mΩ reduces power loss and heat generation.

· Wide Operating Temperature Range: The IC operates reliably between -40°C and 150°C, making it suitable for use in extreme temperature environments.

· Halogen-Free and Lead-Free: The device is manufactured with halogen-free and lead-free materials, ensuring environmental safety.

Product Applications

· Primary Applications: Automotive systems, such as engine control units, transmission control units, and other high-reliability applications.

· Secondary Applications: Industrial control systems, medical devices, and other applications requiring high-reliability power management.

Embedded Modules:

· Automotive Engine Control Units: The NCV8402ASTT3G is used in various engine control units to manage power distribution and ensure reliable operation.

· Transmission Control Units: The device is also used in transmission control units to manage power distribution and ensure reliable operation.

Product Description

Type	Description
ANSC PART#	ANSC - NCV8402ASTT3G
Category	Integrated Circuits (ICs) Power Management (PMIC) Power Distribution Switches, Load Drivers
Mfr	-
Series	-
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	Low Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	42V (Max)
Voltage - Supply (Vcc/Vdd)	Not Required
Current - Output (Max)	2A
Rds On (Typ)	165mOhm
Input Type	Non-Inverting
Features	Auto Restart
Fault Protection	Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 150°C (TJ)
Grade	Automotive
Qualification	AEC-Q100
Mounting Type	Surface Mount
Supplier Device Package	SOT-223 (TO-261)
Package / Case	TO-261-4, TO-261AA
Base Product Number	NCV8402
