Hot sale Original TCD132D CCD Image Sensor, IMAGE SENSOR-CCD, 2-3V, RECTANGULAR, THROUGH HOLE MOUNT
Manufacturer Product Number
TCD132D
Description
TCD132D CCD Image Sensor, IMAGE SENSOR-CCD, 2-3V, RECTANGULAR, THROUGH HOLE MOUNT, 0.400 INCH, 2.54 MM PITCH, WINDOWED, CERDIP-20
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
CCD Image Sensor, IMAGE SENSOR-CCD, 2-3V, RECTANGULAR, THROUGH HOLE MOUNT, 0.400 INCH, 2.54 MM PITCH, WINDOWED, CERDIP-20
Product Description
| Type | Description |
| ANSC PART# | ANSC-TCD132D |
| Ihs Manufacturer | Original |
| Package Description | 0.400 INCH, 2.54 MM PITCH, WINDOWED, CERDIP-20 |
| Samacsys Manufacturer | Original |
| Array Type | LINEAR |
| Body Breadth | 10.16 mm |
| Body Height | 5.37 mm |
| Body Length or Diameter | 26 mm |
| Housing | CERAMIC, GLASS-SEALED |
| Mounting Feature | THROUGH HOLE MOUNT |
| Operating Current-Max | 1 mA |
| Output Range | 2-3V |
| Output Type | ANALOG VOLTAGE |
| Package Shape/Style | RECTANGULAR |
| Pixel Size | 14X14 µm |
| Sensitivity (V/lx.s) | 12 V/lx.s |
| Sensors/Transducers Type | IMAGE SENSOR,CCD |
| Supply Voltage-Max | 13 V |
| Supply Voltage-Min | 11 V |
| Surface Mount | NO |
| Termination Type | SOLDER |

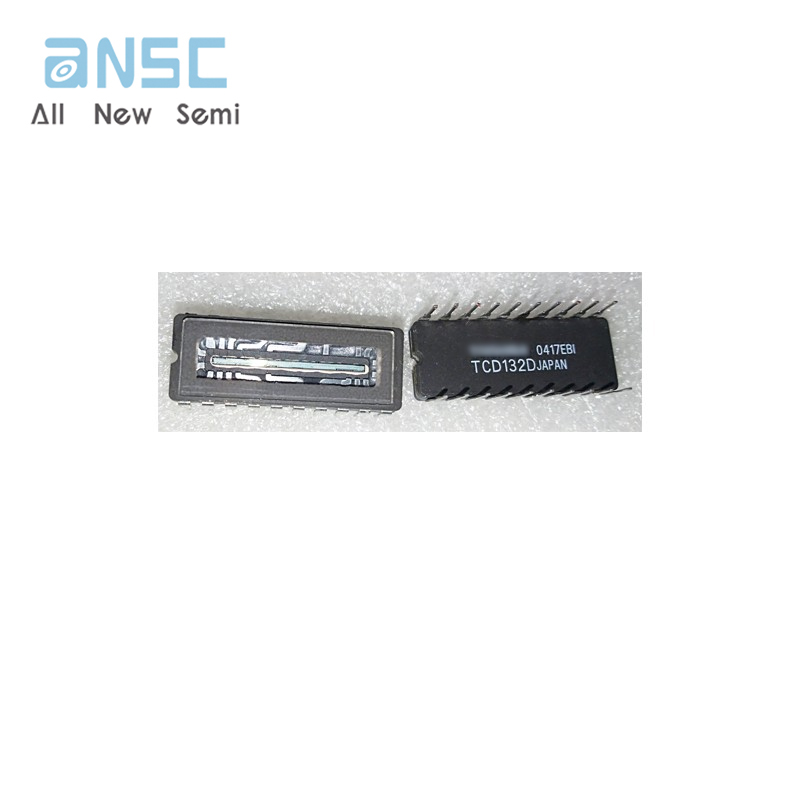

Actual image of the product

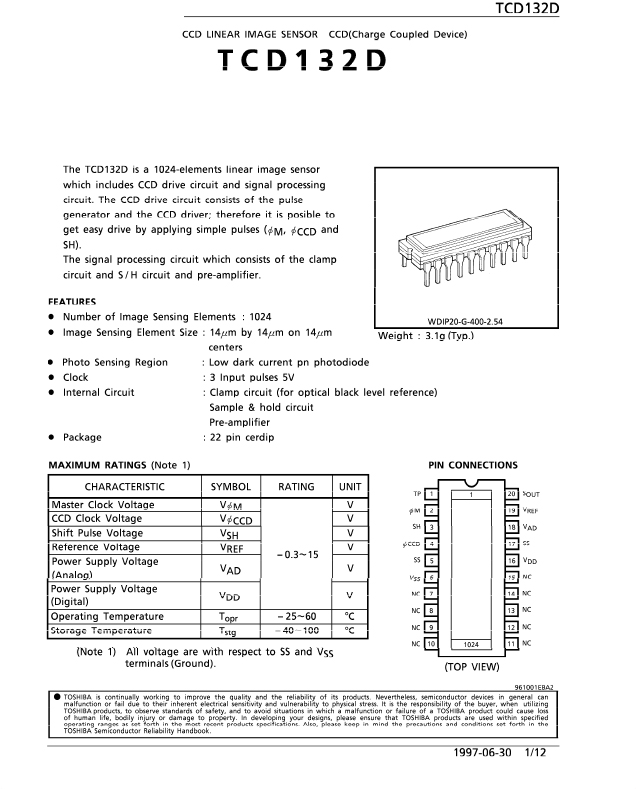

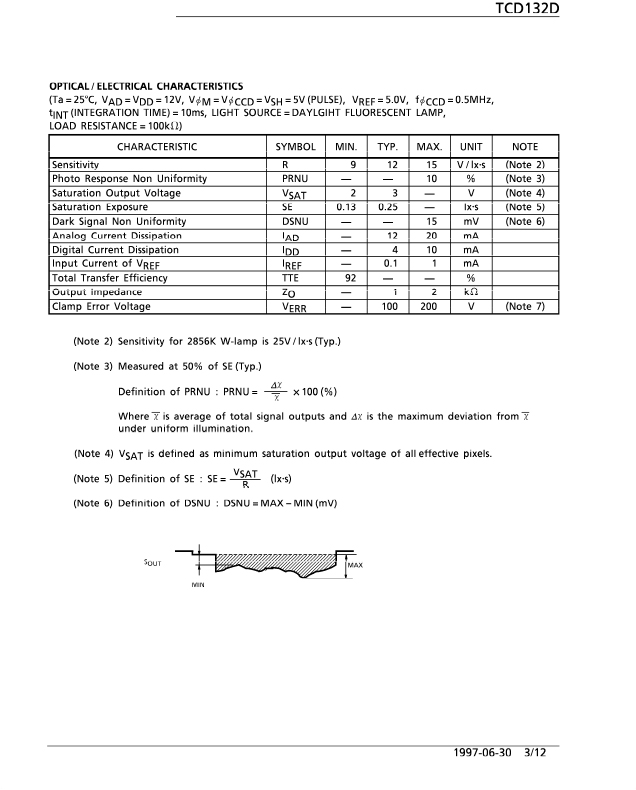

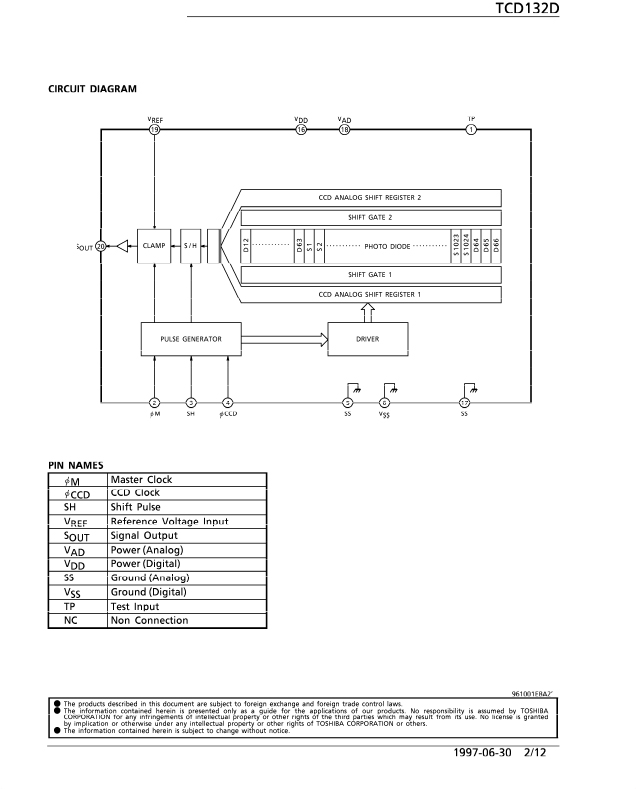

Product datasheet
For more information, please download
