Professional supply Original BOM distribution service electronic components MPX4100AP INTEGRATED PRESSURE SENSOR
Manufacturer Product Number
MPX4100AP
Description
MPX4100AP ABSOLUTE PEIZORESISTIVE PRESSURE SENSOR
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
|
Integrated Silicon Pressure Sensor Manifold Absolute Pressure Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated The MPX4100 series Manifold Absolute Pressure (MAP) sensor for engine control is designed to sense absolute air pressure within the intake manifold. This measurement can be used to compute the amount of fuel required for each cylinder. The small form factor and high reliability of on-chip integration makes the MAP sensor a logical and economical choice for automotive system designers. Features • 1.8% Maximum Error Over 0° to 85°C • Specifically Designed for Intake Manifold Absolute Pressure Sensing in Engine Control Systems • Ideally Suited for Microprocessor Interfacing • Temperature Compensated Over -40°C to +125°C • Durable Epoxy Unibody Element • Ideal for Non-Automotive Applications Typical Applications • Manifold Sensing for Automotive Systems |
Product Description
| Part# | MPX4100AP |
| Category | Sensors, Transducers |
| Pressure Sensors, Transducers | |
| Mfr | / |
| Series | MPX4100A |
| Package | Tray |
| Product Status | Obsolete |
| Applications | Board Mount |
| Pressure Type | Absolute |
| Operating Pressure | 2.9PSI ~ 15.23PSI (20kPa ~ 105kPa) |
| Output Type | Analog Voltage |
| Output | 0.3 V ~ 4.9 V |
| Accuracy | ±1.8% |
| Voltage - Supply | 4.85V ~ 5.35V |
| Port Size | Male - 0.19" (4.93mm) Tube |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 58.02PSI (400kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 6-SIP Module |
| Supplier Device Package | - |
| Base Product Number | MPX41 |

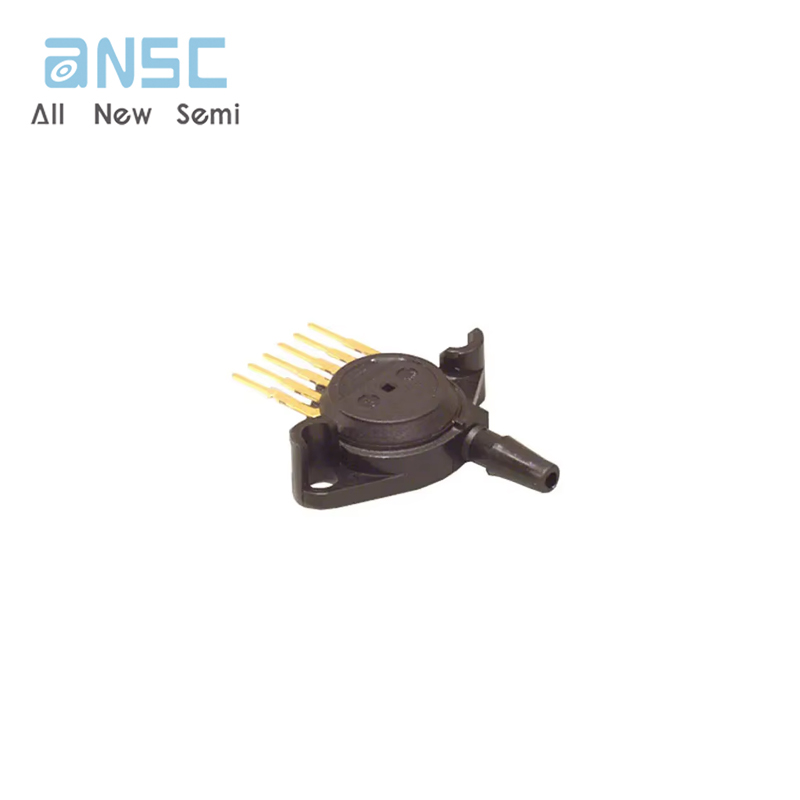

Actual image of the product

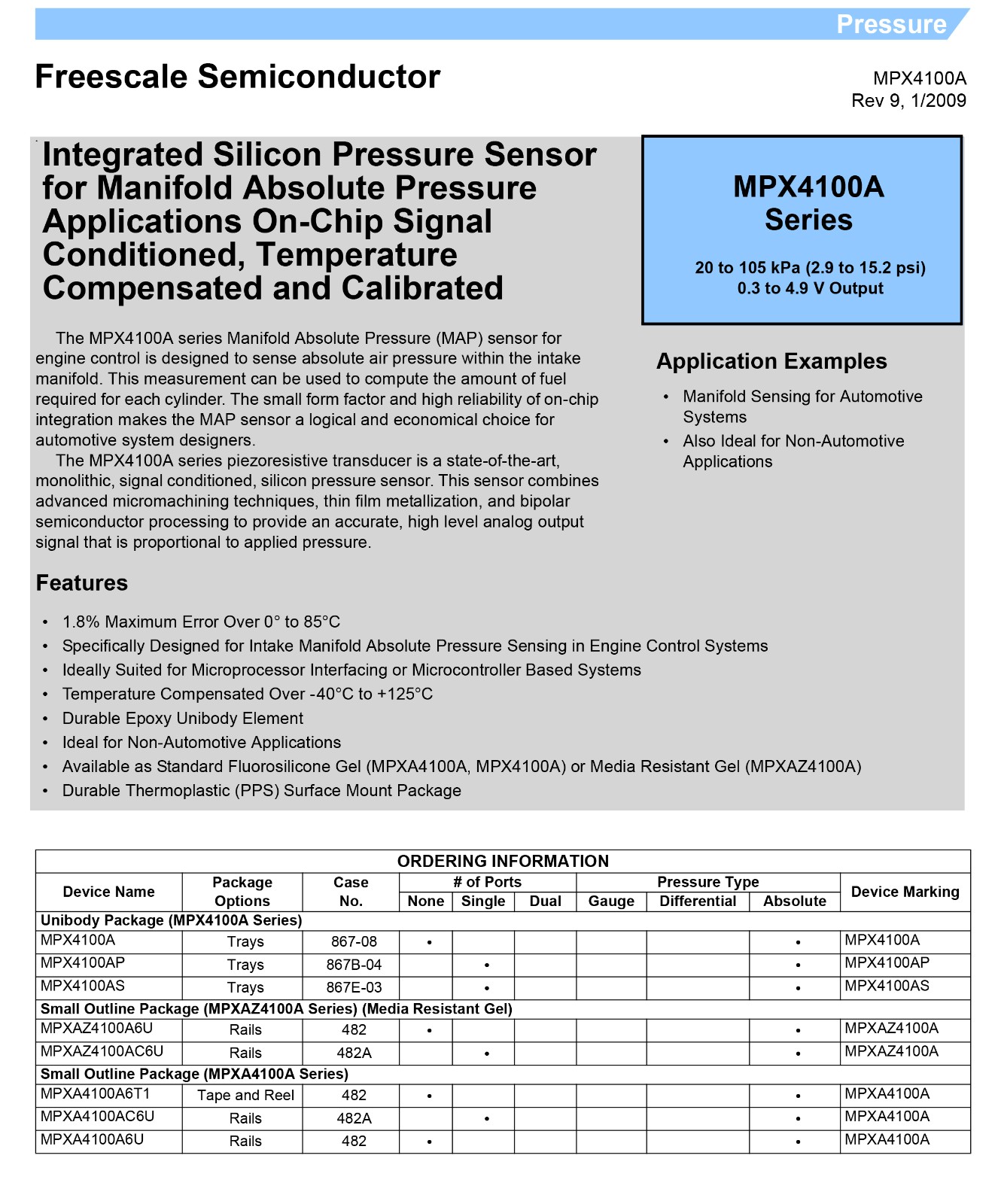

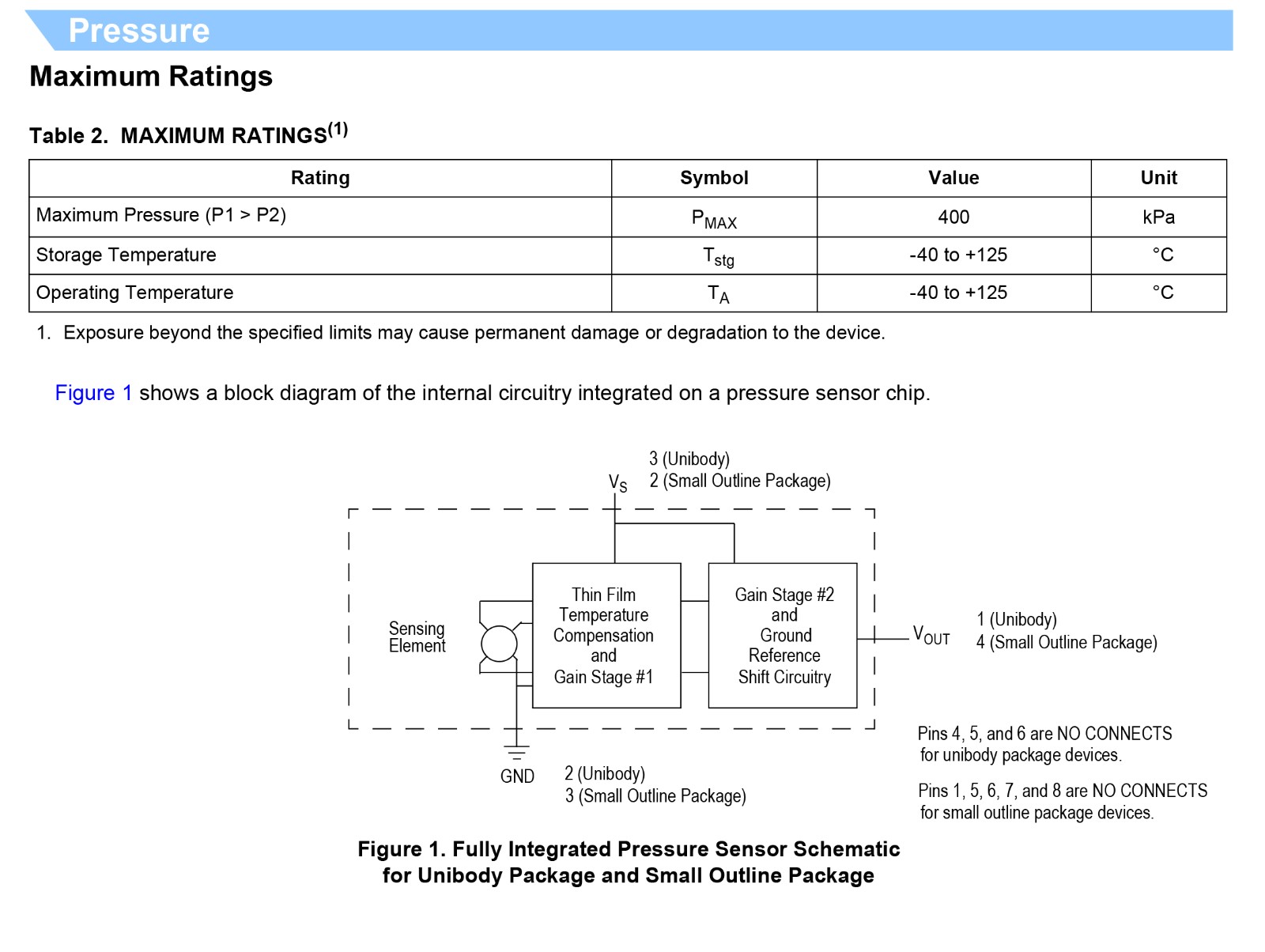

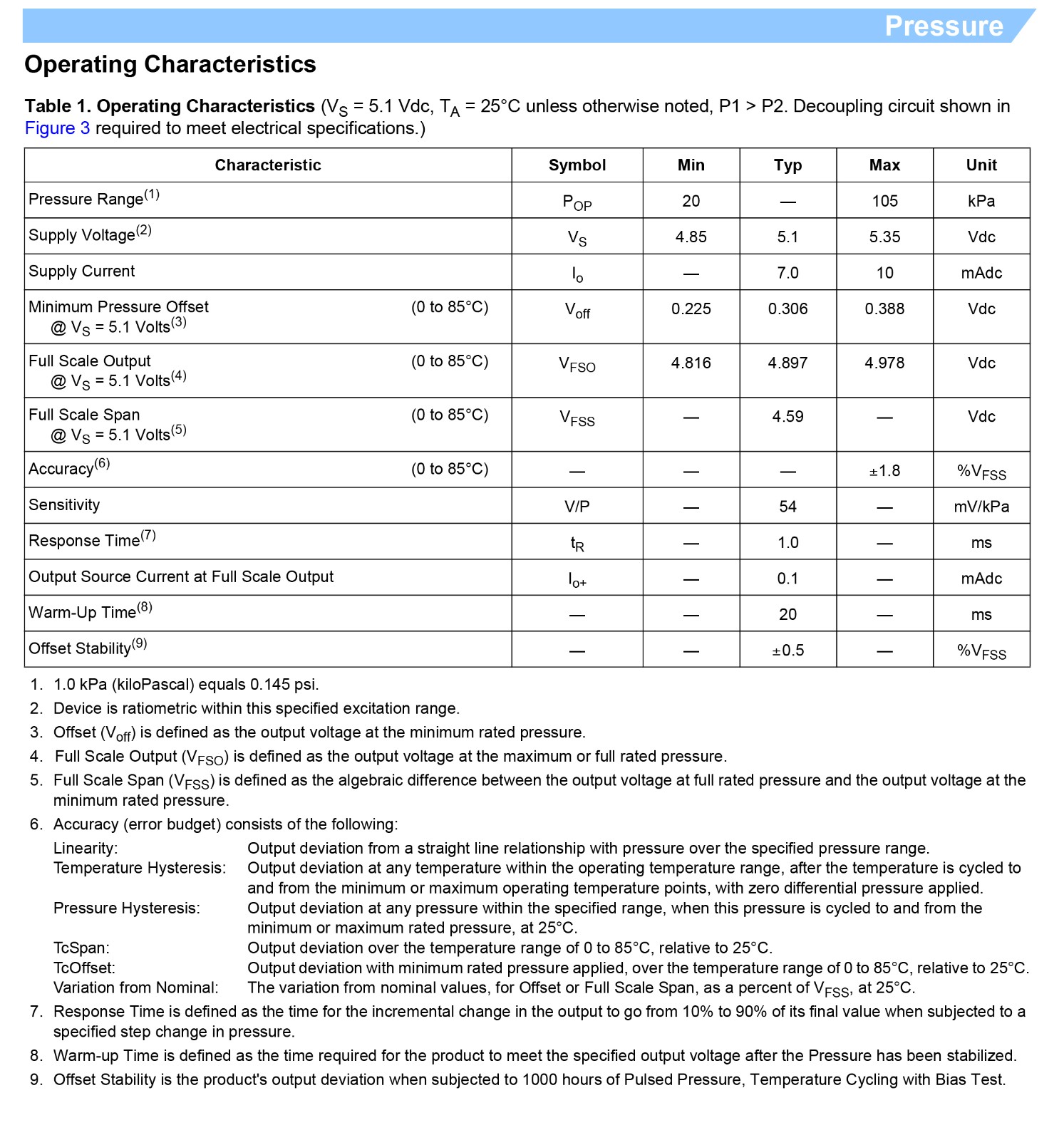

Product datasheet
For more information, please download
