One-Stop Supply Original Electronic Components Pressure Sensor 0kPa to 10kPa Gage 5-Pin M-PAC MPXM2010GST1
Manufacturer Product Number
MPXM2010GST1
Description
MPXM2010GST1 Piezoresistive Sensor
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description The MPX2010 series device is a silicon piezoresistive pressure sensor providing a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip. The chip is laser trimmed for precise span and offset calibration and temperature compensation. Features • Ratiometric to Supply Voltage • Differential and Gauge Options • Temperature Compensated over 0 °C to 85 °C • Easy-to-Use Chip Carrier Package Options Application • Air Movement Control • Respiratory Diagnostics • Controllers • Pressure Switching |
Product Description
| Type | Description |
| PART# | MPXM2010GST1 |
| Category | Sensors, Transducers |
| Pressure Sensors, Transducers | |
| Manufacturer | Original |
| Series | MPX2010 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 1.45PSI (10kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 25 mV (10V) |
| Accuracy | ±1% |
| Voltage - Supply | 10V ~ 16V |
| Port Size | Male - 0.12" (2.97mm) Tube |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | Gull Wing |
| Maximum Pressure | 10.88PSI (75kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD Module, Top Port |
| Supplier Device Package | 5-MPAK |
| Base Product Number | MPXM2010 |

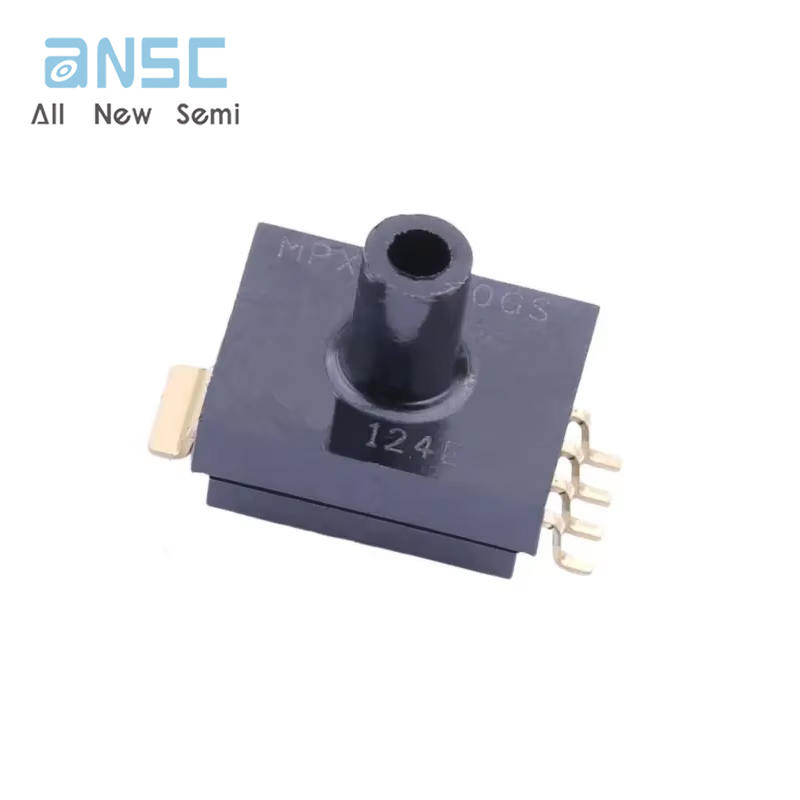

Actual image of the product
