Professional supply Integrated circuit IC HMC545E GaAs MMIC SPDT SWITCH IC General Purpose SPDT 3 GHz 50Ohm SOT-23-6

Product Descriptions

The HMC545 and HMC545E are low-cost SPDT switches in 6-lead SOT26 plastic packages for use in general switching applications which require very low insertion loss and very small size. With 0.25 dB typical loss, these devices can control signals from DC to 3.0 GHz and are especially suited for IF and RF applications including Cellular/3G, ISM, automotive and portables. The design provides exceptional insertion loss performance, ideal for fi lter and receiver switching. RF1 and RF2 are refl ective shorts when “Off”. The two control voltages require a minimal amount of DC current and offer compatibility with CMOS and some TTL logic families.

Product Features

• Low Insertion Loss: 0.25 dB

• High Input IP3: +65 dBm

• Low DC Power Consumption

• Positive Control: 0/+3V to 0/+8V

• Ultra Small Package: SOT26

Product Applications

The HMC545 / HMC545E is ideal for:

• Cellular/3G Infrastructure

• Private Mobile Radio Handsets

• WLAN, WiMAX & WiBro

• Automotive Telematics

• Test Equipment

Specifications

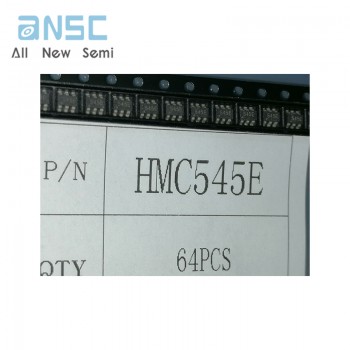

Actual product photos
