Hot-selling and scarce SD5401CY High-Speed DMOS Quad FET Analog Switch Arrays SOP14 spot stock

Product Descriptions

The SD5000 Series are monolithic arrays of four bidirectional, high performance analog switches manufactured with implanted high-speed, high-voltage and low resistance double-difused MOS (DMOS) process. The maximum threshold of 2V permits simple TTL and CMOS driving in small signal applications. ​

Product Features

• Low PropagatiomTime . . . . . . . . . . . . . . . . . . . . 600 psec

• Low On Resistance

• Low Insertion Loss

• Low Capacitance:

– Analog Input . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5pF typ.

– Input (Gate) . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.4pF typ.

– Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3pF typ.

– Feedback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3pF typ.

• Low Crosstalk . . . . . . . . . . . . . . . . . . . . . -107dB @ 3kHz

• Bidirectional Operation

Product Applications

• Analog Switching

• Audio Routing

• Sample & Hold

• Crosspoint Switches

• Choppers

• Video Switches

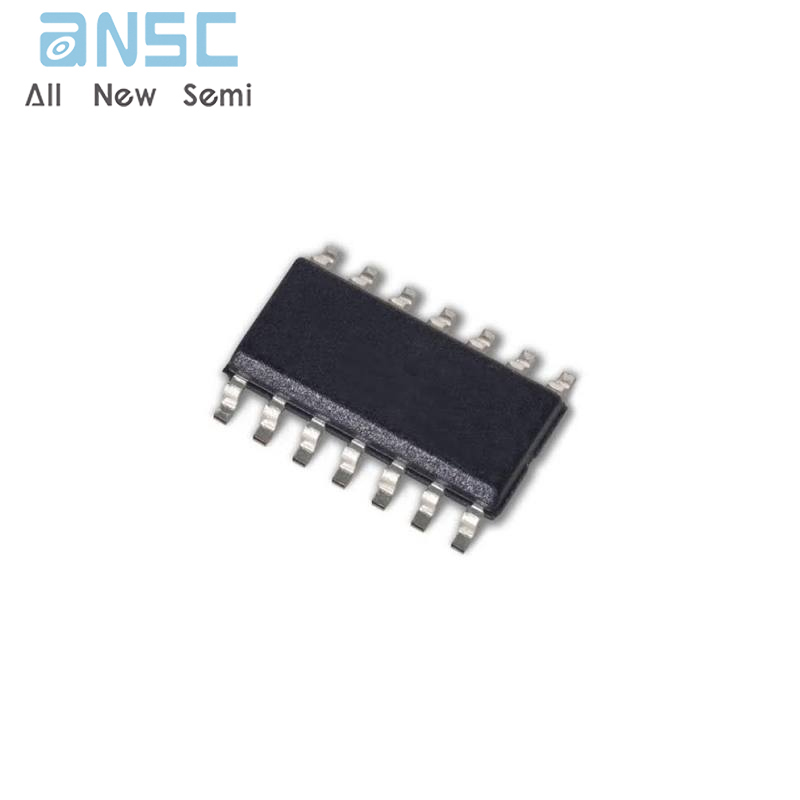

Product Photos

For more product information, please download the PDF
