Hot-selling and scarce 74HCT4066D Quad single-pole single-throw analog switch SOP14 spot stock

Product Descriptions

The 74HC4066; 74HCT4066 is a quad single pole, single throw analog switch. Each  switch features two input/output terminals (nY and nZ) and an active HIGH enable input  (nE). When nE is LOW, the analog switch is turned off. Inputs include clamp diodes. This  enables the use of current limiting resistors to interface inputs to voltages in excess of  VCC.

Product Features

 Input levels nE inputs:

 For 74HC4066: CMOS level

 For 74HCT4066: TTL level

 Low ON resistance:

 50 Ω (typical) at VCC = 4.5 V

 45 Ω (typical) at VCC = 6.0 V

 35 Ω (typical) at VCC = 9.0 V

 Specified in compliance with JEDEC standard no. 7A

 ESD protection:

 HBM JESD22-A114F exceeds 2000 V

 MM JESD22-A115-A exceeds 200 V

 Multiple package options

 Specified from -40 ℃ to +85 ℃C and -40 ℃ to +125 ℃

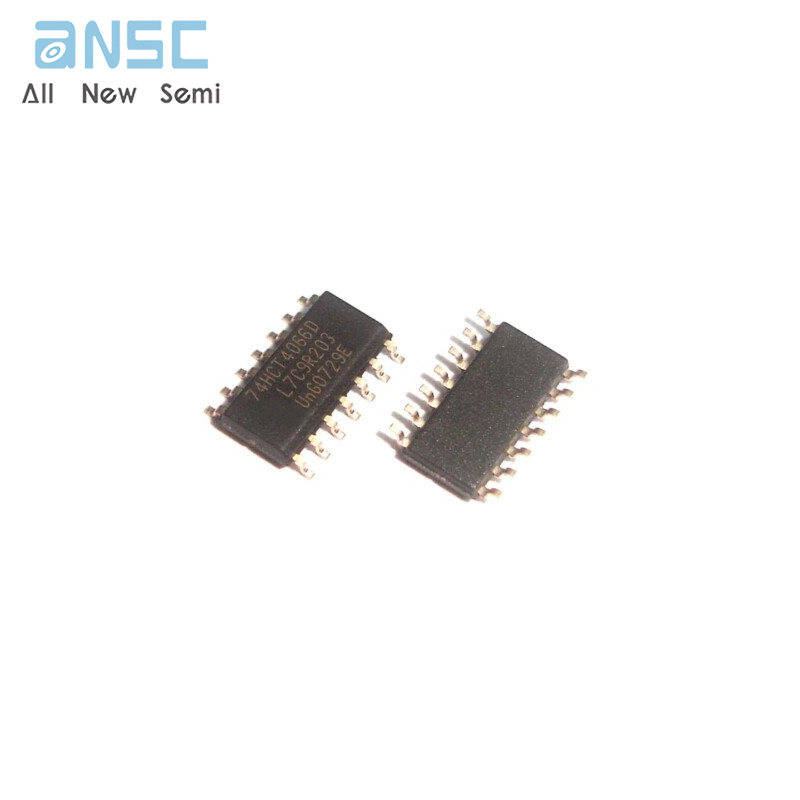

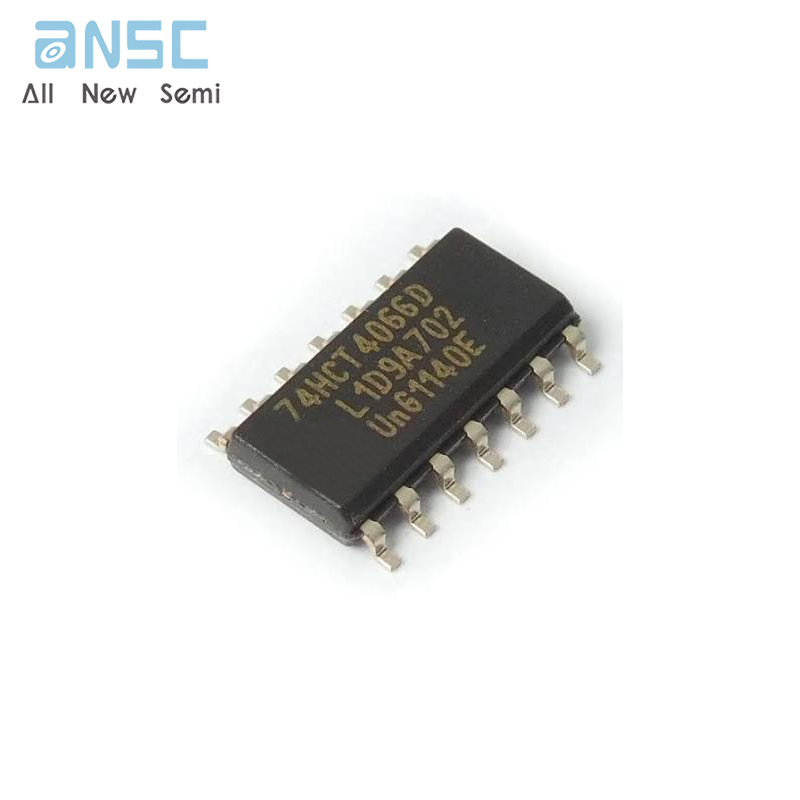

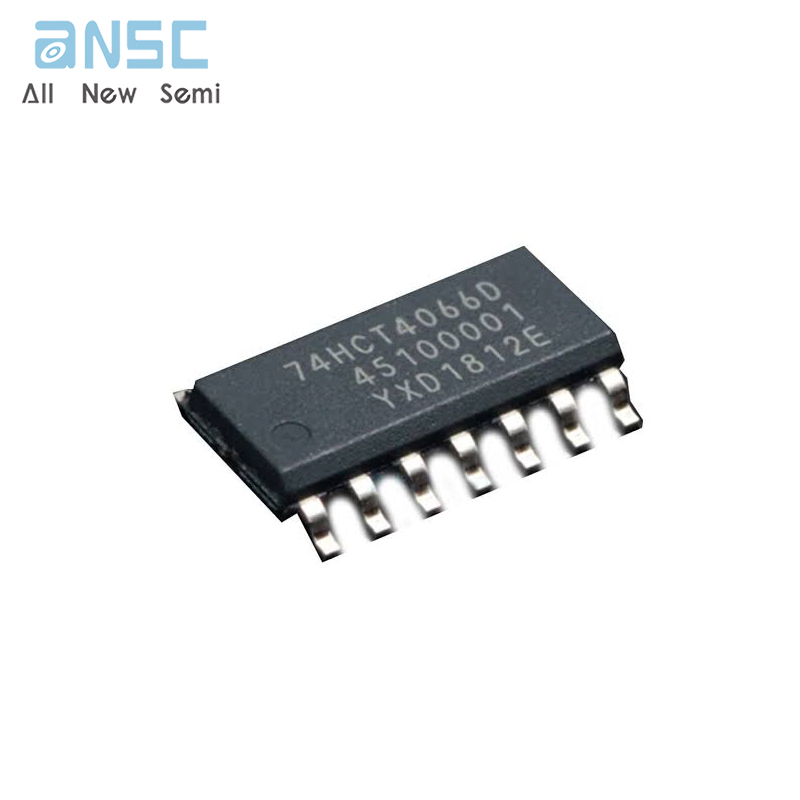

Product Photos

For more product information, please download the PDF
