Spot sales of ULN2066B 50V - 1.5A QUAD DARLINGTON SWITCHES DIP-16
Manufacturer Product Number
ULN2066B
Description
ULN2066B 50V - 1.5A QUAD DARLINGTON SWITCHES DIP-16
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
Designed to interface logic to a wide variety of high current,highvoltageloads,thesedeviceseachcontain four NPN darlington switches delivering up to 1.5 A with a specified minimum breakdownof 50 V and a sustaining voltage of 35 V measured at 100 mA. The ULN2064B, ULN2066B, ULN2068B and ULN2070B contain integral suppression diodes for inductive loads have common emitters.
The ULN2074B and ULN2076B feature isolated darlington pinouts and are intended for applications suchasemitterfollowerconfigurations.Inputsof the ULN2064B, ULN2068B and ULN2074B are compatible with popular 5 V logic families and the ULN2066B and ULN2076B are compatible with 6- 15 V CMOS and PMOS. Types ULN2068B and ULN2070Bincludea predriverstageto reduceloading on the control logic.
Product Features
. OUTPUT CURRENT TO 1.5 A EACH DARLINGTON
. MINIMUM BREAKDOWN 50 V
. SUSTAINING VOLTAGE AT LEAST 35 V
.INTEGRAL SUPPRESSION DIODES
(ULN2064B, ULN2066B, ULN2068B and ULN2070B)
.ISOLATED DARLINGTON PINOUT
(ULN2074B, ULN2076B)
. VERSIONS COMPATIBLE WITH ALL POPULAR LOGIC FAMILIES
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ULN2066B |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Bipolar Transistor Arrays | |
| Manufacturer | - |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Transistor Type | 4 NPN Darlington (Quad) |
| Current - Collector (Ic) (Max) | 1.75A |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 1.4V @ 2mA, 1.25A |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Power - Max | 1W |
| Frequency - Transition | - |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-PowerDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PowerDIP (20x7.10) |
| Base Product Number | ULN2066 |

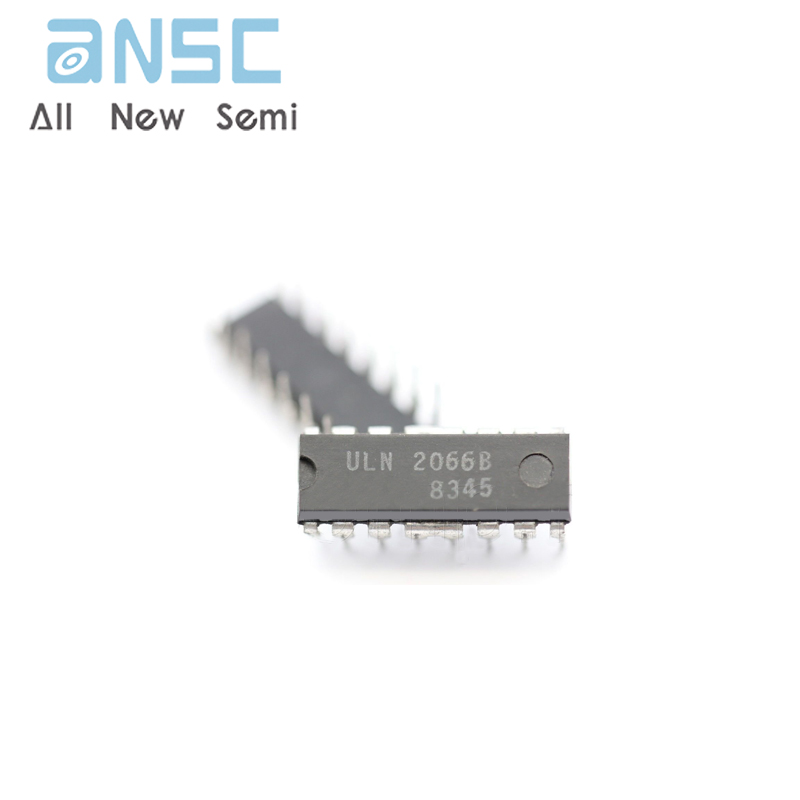

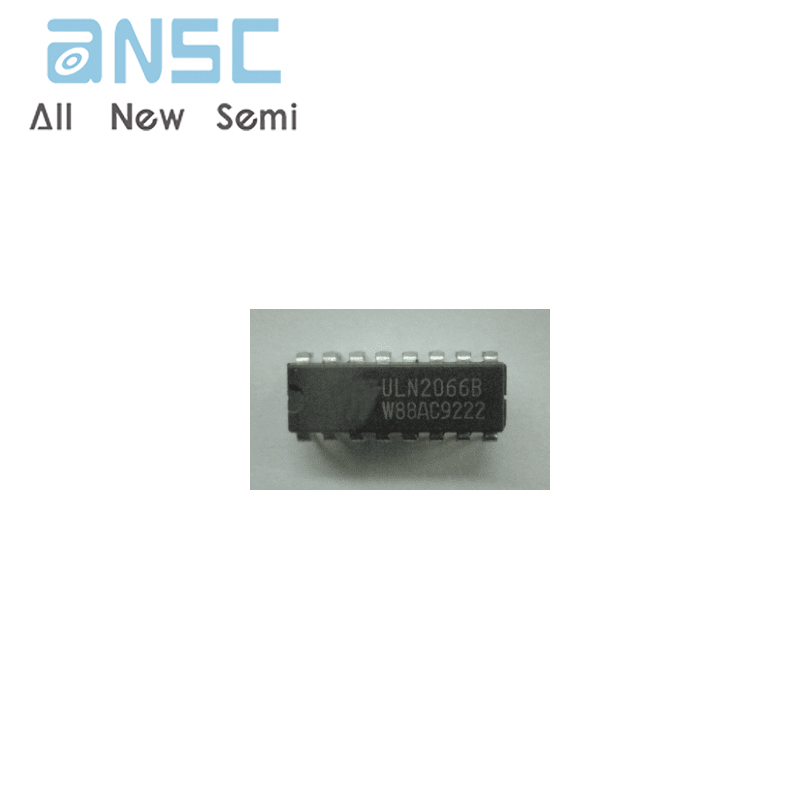

Product Photos
For more product information, please download the PDF
