Electronic components BOM Integrated circuit IC NJG1801K75

Product Descriptions

The NJG1801K75 is a SPDT switch IC suited for switching transmit/receive signals at 802.11 a/b/g/n/ac/ax， Bluetooth, UWB and others wireless communication application.

The NJG1801K75 features low insertion loss, high isolation, and high handling power.

This switch exhibits wide frequency coverage up to 8.5GHz. And the ultra small and ultra thin package of DFN6-75 is adopted.

Product Features

 Control voltage range 1.8 to 5.0 V (3.0 V typ.)

 Low insertion loss 0.35 dB typ. @ f = 2.4 to 2.5 GHz

0.45 dB typ. @ f = 4.9 to 5.9 GHz

0.60 dB typ. @ f = 8.5 GHz

 High isolation 28 dB typ. @ f = 2.4 to 2.5 GHz

30 dB typ. @ f = 4.9 to 5.9 GHz

20 dB typ. @ f = 8.5 GHz

 P-1dB P-1dB = +31 dBm typ. @ f = 2.5 GHz

P-1dB = +31 dBm typ. @ f = 5.9 GHz

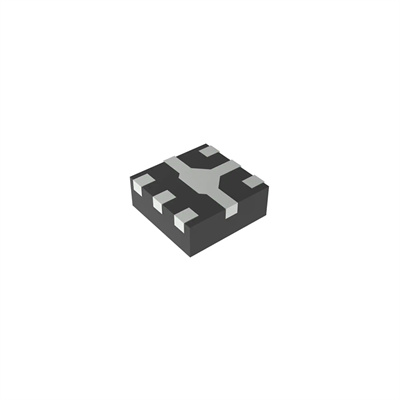

 Ultra small & ultra thin package DFN6-75 (Package Size: 1.0 x1.0 x 0.375 mm typ.)

 RoHS compliant and Halogen Free, MSL1

Product Applications

WLAN 802.11a/ b/g/n/ac/ax, Bluetooth, UWB networks

Communication Modules, Smartphones, Access points, and others mobile devices

Antenna switching, Transmit / receive switching, path switching applications
