Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.

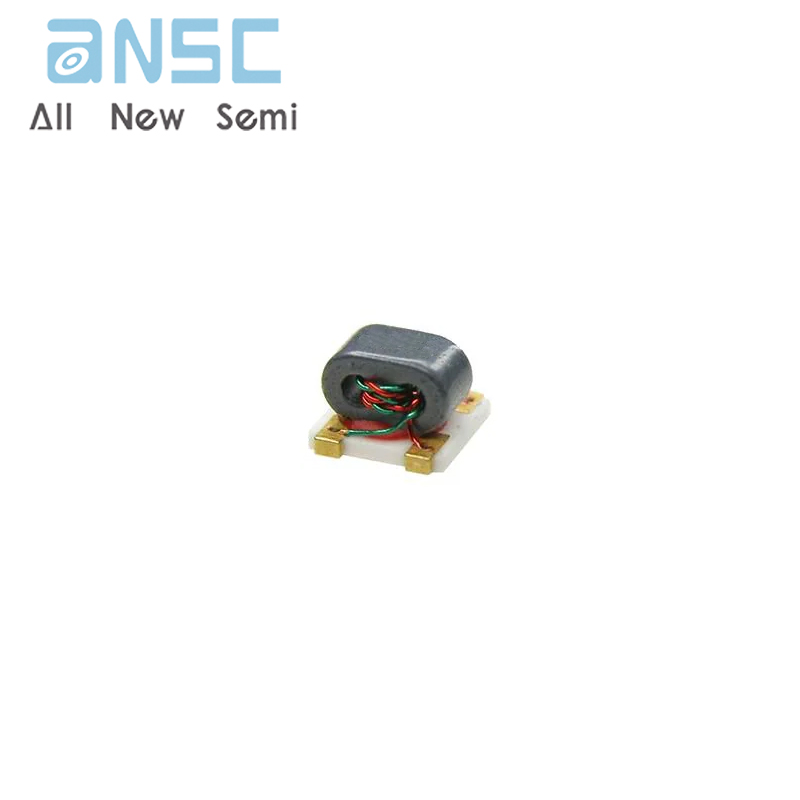

Spot sales of TC4-14G2+ RF Transformer 50Ω 200 to 1400 MHz SMD
Manufacturer Product Number
TC4-14G2+
Description
TC4-14G2+ RF Transformer 50Ω 200 to 1400 MHz SMD
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
y Suitable for Tin/Lead and RoHS Solder Systems
y Good Return Loss
y Wideband, 200 to 1400 MHz
y Aqueous Washable
Product Applications
y Push-Pull Amplifiers
y Impedance Matching
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TC4-14G2+ |
| Category | RF and Wireless |
| Balun | |
| Manufacturer | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Frequency Range | 200MHz ~ 1.4GHz |
| Impedance - Unbalanced/Balanced | 1:4 |
| Phase Difference | - |
| Insertion Loss (Max) | 3dB |
| Return Loss (Min) | 5.05dB |
| Package / Case | 6-SMD (5 Leads), Flat Lead |
| Mounting Type | Surface Mount |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
TC4-14G2+ RF Transformer 50Ω 200 to 1400 MHz SMD
1147In stock:
Can ship immediately
