Hot-selling and scarce TG83-1505NXRL SMD 4 Port T1/E1 Transformer SOP40 spot stock
Manufacturer Product Number
TG83-1505NXRL
Description
TG83-1505NXRL SMD 4 Port T1/E1 Transformer SOP40 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
-
T1/E1/CEPT/ISDN-PRI Quad Port Transformers
-
UL/EN60950 Recognized
-
DEMKO Recognized
-
100% Electrical Testing
-
1500Vrms Hi-Pot
-
Patented Open Frame Construction
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TG83-1505NXRL |
| Category | Transformers |
| Pulse Transformers | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Not For New Designs |
| Transformer Type | T1/E1 (Quad) |
| Inductance | 1.5mH |
| Turns Ratio - Primary:Secondary | 1:2 Transmitter, 1:1 Receiver |
| Mounting Type | Surface Mount |
| Size / Dimension | 1.100" L x 0.480" W (27.94mm x 12.19mm) |
| Height - Seated (Max) | 0.230" (5.84mm) |
| Operating Temperature | -40°C ~ 85°C |

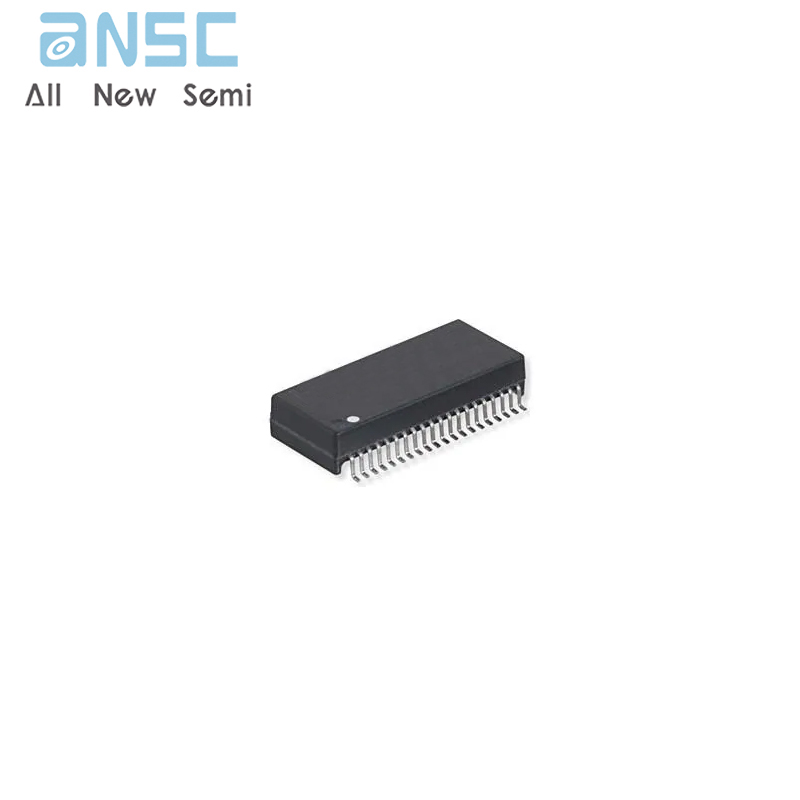

Product Photos
、
For more product information, please download the PDF
