Hot sale Original FDN5618P Transistor MOSFET P-CH 60V 1.25A SUPERSOT3 P-Channel 60 V 1.25A (Ta) 500mW (Ta) Surface Mount
Manufacturer
Manufacturer Product Number
FDN5618P
Description
Original FDN5618P Transistor MOSFET P-CH 60V 1.25A SUPERSOT3 P-Channel 60 V 1.25A (Ta) 500mW (Ta) Surface Mount SOT-23-3
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Product Description
The FDN5618P is a P-channel enhancement mode power MOSFET from ON Semiconductor, designed for high-frequency switching applications. This surface-mount device features a compact TO-236-3 package and is suitable for use in a wide range of electronic systems.
Product Features
· High current rating of 1.25A continuous drain current
· High voltage rating of 60V drain-to-source breakdown voltage
· Low Rds(on) of 170mΩ at 1.25A and 10V
· Fast switching times, with a fall time of 8ns and rise time of 8ns
· Operating temperature range of -55°C to 150°C
· Lead-free and RoHS3 compliant
Product Applications
· Primary applications include switching power supplies, motor control, and audio amplifiers
· Secondary applications include LED drivers, DC-DC converters, and power management systems
Embedded Modules:
· PowerTrench series of power MOSFETs
· High-frequency switching modules
Product Description
| Type | Description |
| ANSC PART# | ANSC - FDN5618P |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | ON |
| Series | PowerTrench® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 1.25A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 170mOhm @ 1.25A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 13.8 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 430 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | FDN5618 |

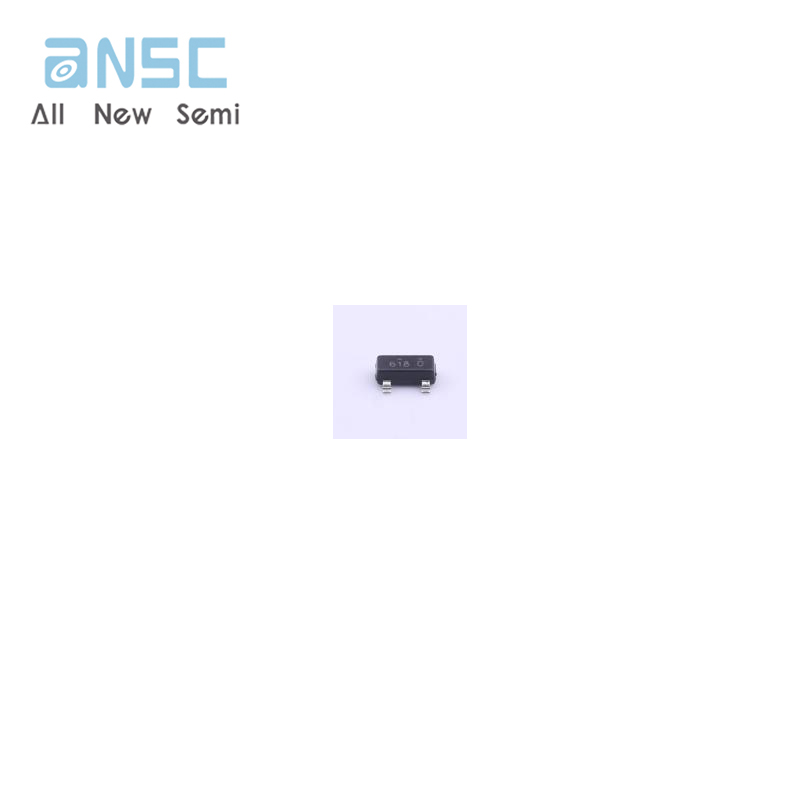

Actual image of the product

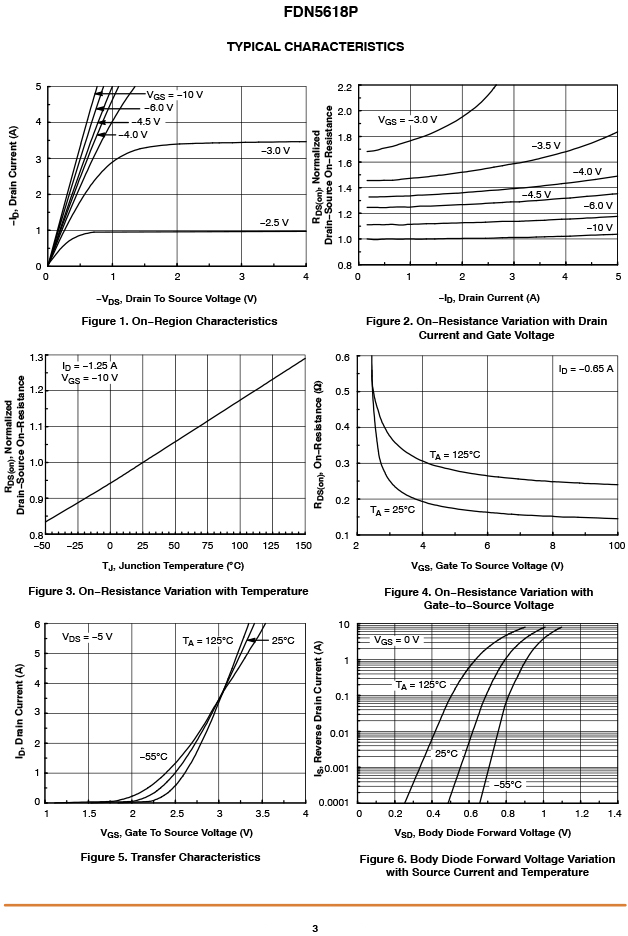

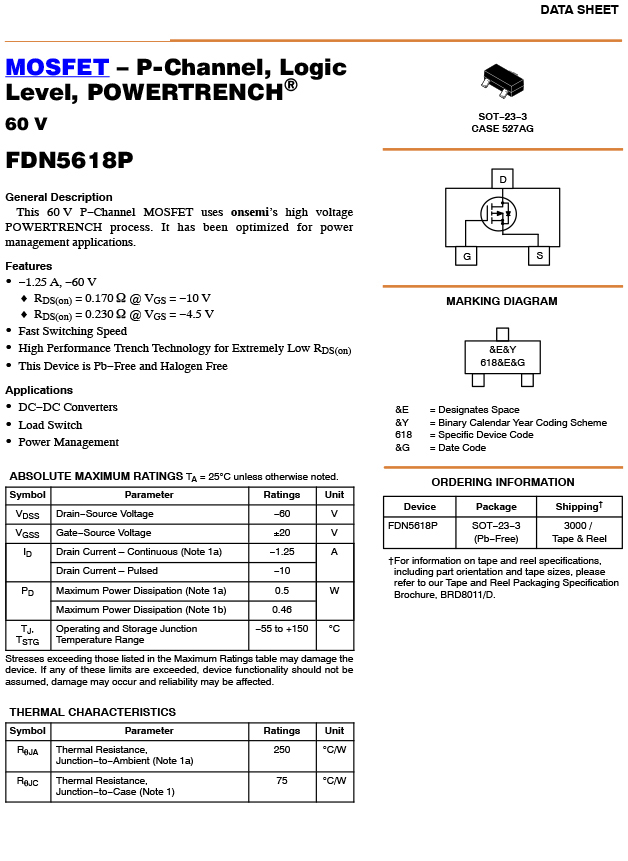

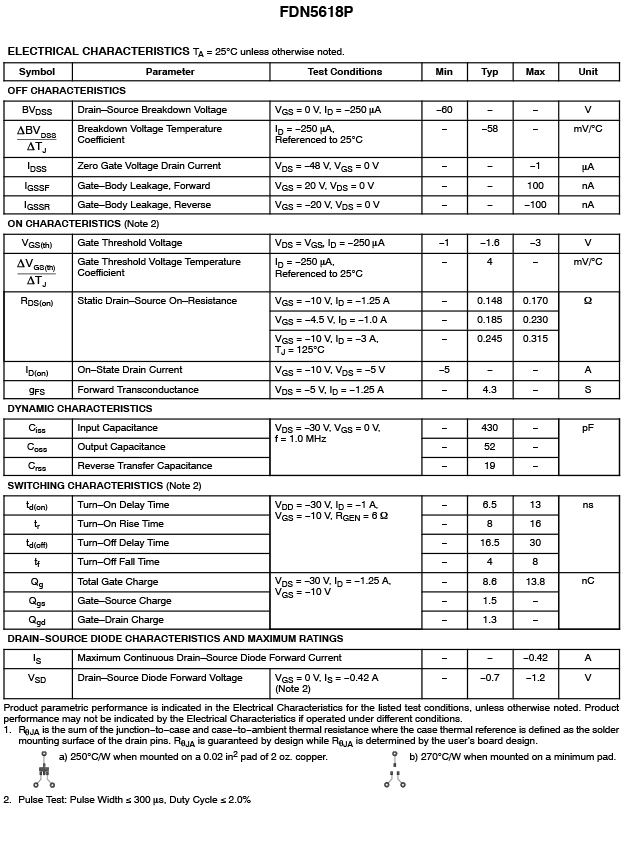

Product datasheet
For more information, please download
