Hot sale Original FGB40T65SPD-F085 Transistors IGBT Trench Field Stop 650 V 80 A 267 W Surface Mount TO-263 (D2PAK)
Manufacturer
Manufacturer Product Number
FGB40T65SPD-F085
Description
FGB40T65SPD-F085 Transistors IGBT TRENCH FS 650V 80A TO-263
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Brief Description: The FGB40T65SPD-F085 is a single N-channel Trench Field Stop IGBT (Insulated Gate Bipolar Transistor) . It is designed for power control applications and features a built-in diode. Features: Maximum current collector (Ic) of 80A Pulsed current collector (Icm) of 120A Gate charge of 36nC Operating temperature range of -55°C to 175°C Peak reflow temperature of 260°C Power dissipation of 267W Reverse recovery time of 34ns Switching energy of 970μJ (on) and 280μJ (off) Turn-off time (toff) of 51ns and turn-on time of 49ns Voltage collector-emitter breakdown (Vce) of 650V Application Grade: The FGB40T65SPD-F085 is designed for high-power control applications, making it suitable for use in power supplies, motor drives, and other high-power electronic systems. Applications: Power supplies Motor drives High-power electronic systems Industrial automation Renewable energy systems Automotive applications (e.g., powertrain, infotainment, and safety systems) Overall, the FGB40T65SPD-F085 is a high-power, high-performance IGBT that offers excellent switching characteristics and is suitable for a wide range of applications. Its robust design and high reliability make it an attractive option for designers and manufacturers of high-power electronic systems. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - FGB40T65SPD-F085 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| IGBTs | |
| Single IGBTs | |
| Manufacturer | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 40A |
| Power - Max | 267 W |
| Switching Energy | 970µJ (on), 280µJ (off) |
| Input Type | Standard |
| Gate Charge | 36 nC |
| Td (on/off) @ 25°C | 18ns/35ns |
| Test Condition | 400V, 40A, 6Ohm, 15V |
| Reverse Recovery Time (trr) | 34 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D2PAK) |
| Base Product Number | FGB40T65 |

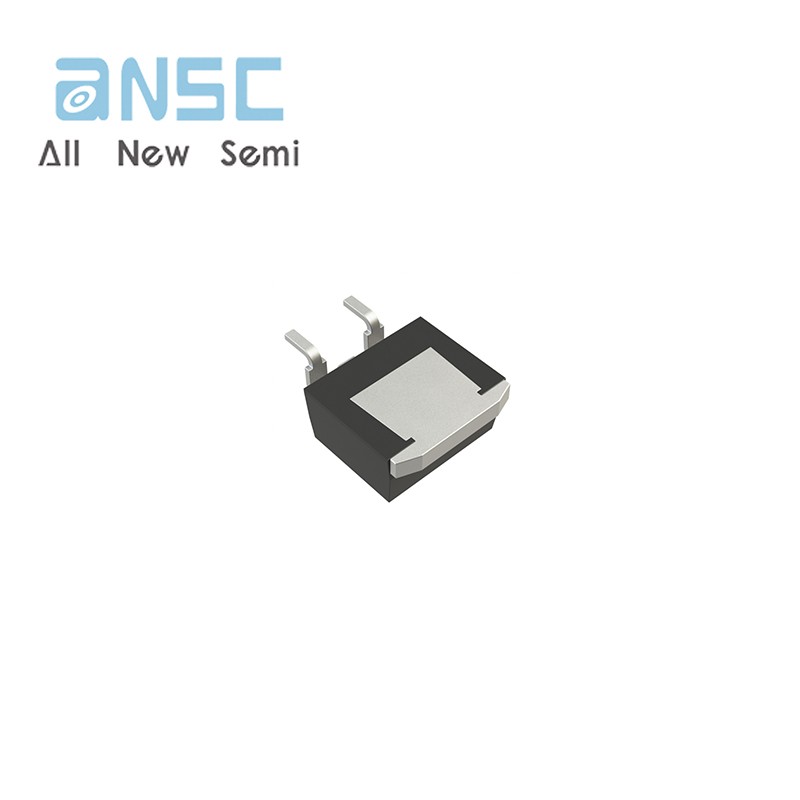

Actual image of the product

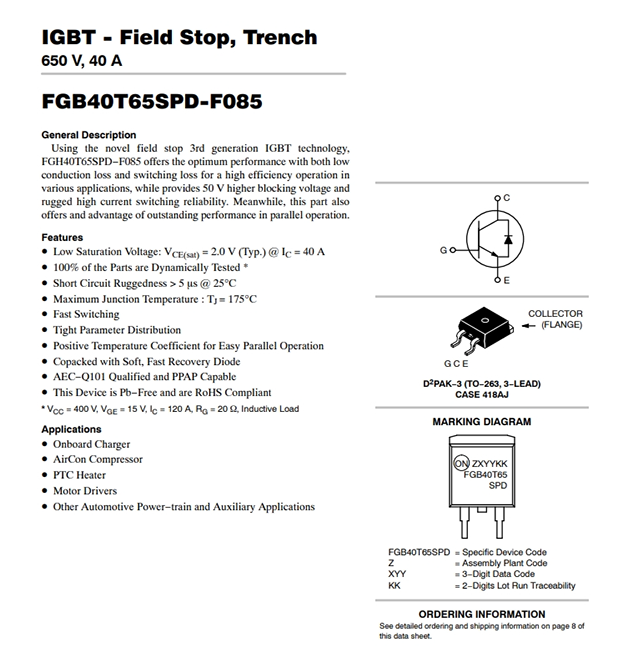

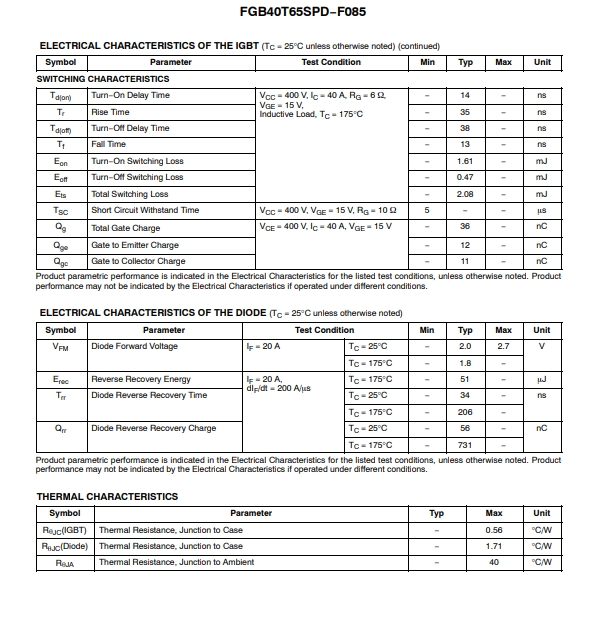

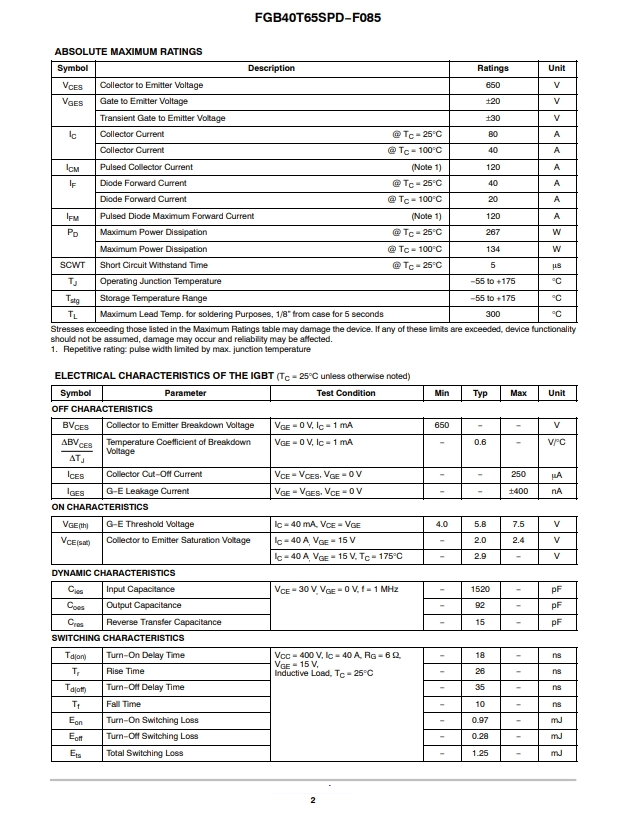

Product datasheet
