Hot sale original BSS138N Transistor 0.23A I(D) 60V 1-Element N-Channel Silicon Metal-oxide Semiconductor
Manufacturer Product Number
BSS138N
Description
BSS138N Transistor 0.23A I(D) 60V 1-Element N-Channel Silicon Metal-oxide Semiconductor FET GREEN PLASTIC PACKAGE-3
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Features
• N-channel
• Enhancement mode
• Logic level
• dv /dt rated
Product Description
| Type# | Description |
| ANSC PART# | ANSC-BSS138N |
| Manufacturer | / |
| Package Description | GREEN, PLASTIC PACKAGE-3 |
| Pin Count | 3 |
| Samacsys Manufacturer | / |
| Additional Feature | LOGIC LEVEL COMPATIBLE |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| DS Breakdown Voltage-Min | 60 V |
| Drain Current-Max (ID) | 0.23 A |
| Drain-source On Resistance-Max | 3.5 Ω |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| Feedback Cap-Max (Crss) | 3.8 pF |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 150 °C |
| Operating Temperature-Min | -55 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation Ambient-Max | 0.36 W |
| Power Dissipation-Max (Abs) | 0.36 W |
| Qualification Status | Not Qualified |
| Reference Standard | AEC-Q101; IEC-61249-2-21 |
| Surface Mount | YES |
| Terminal Finish | Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |

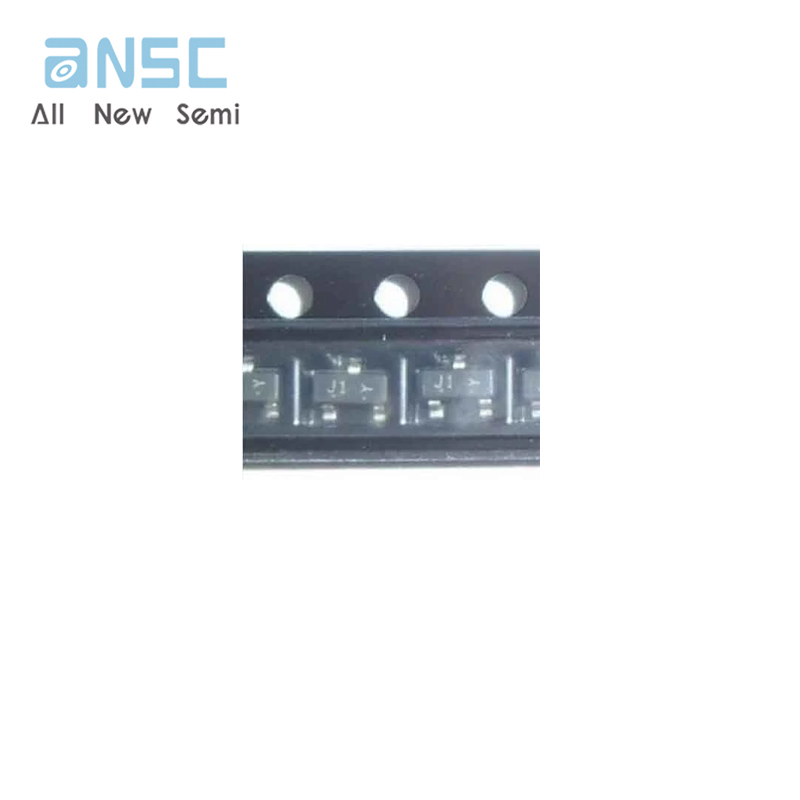

Actual image of the product

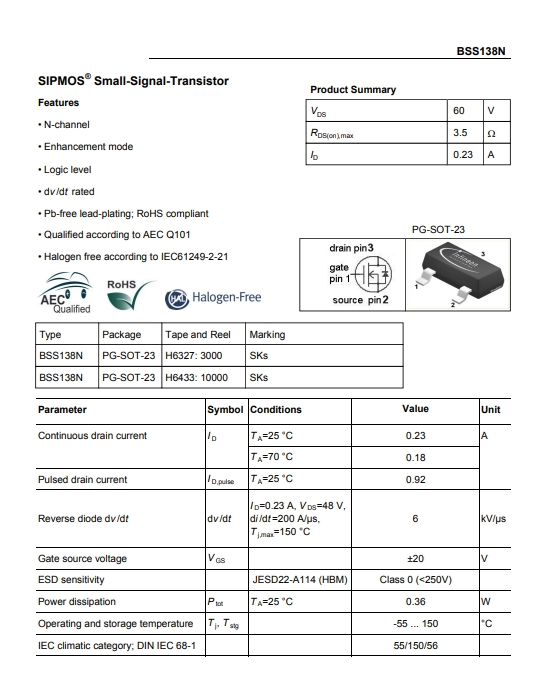

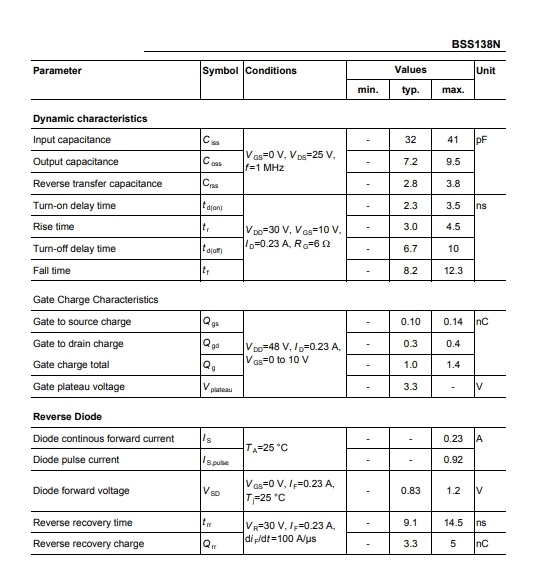

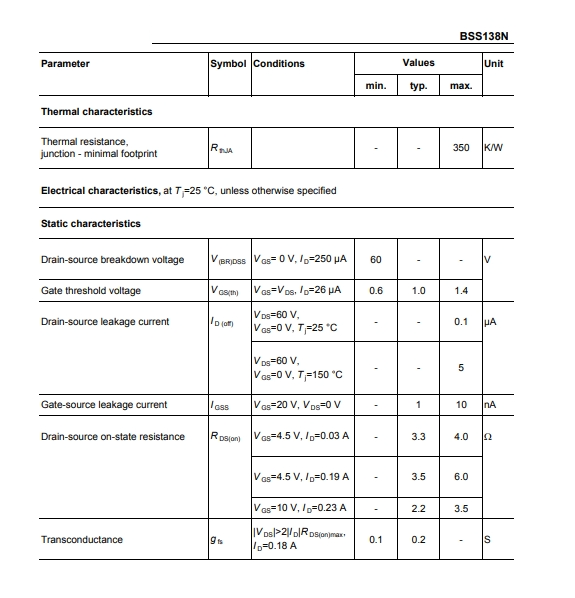

Product datasheet
For more information, please download
