Spot sales of TIL117 Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-DIP
Manufacturer Product Number
TIL117
Description
TIL117 Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-DIP
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TIL117 |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 50% @ 10mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 10µs, 9µs |
| Rise / Fall Time (Typ) | 6µs, 8µs |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | - |
| Voltage - Forward (Vf) (Typ) | 1.32V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |

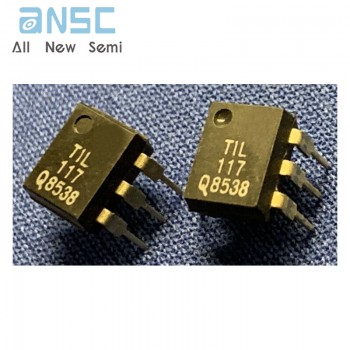

Product Photos
For more product information, please download the PDF
Other Products In The same category:
TIL117 Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-DIP
18In stock:
Can ship immediately
