Hot-selling and scarce DCP69-13 20V PNP SURFACE MOUNT TRANSISTOR SOT223 spot stock
Manufacturer Product Number
DCP69-13
Description

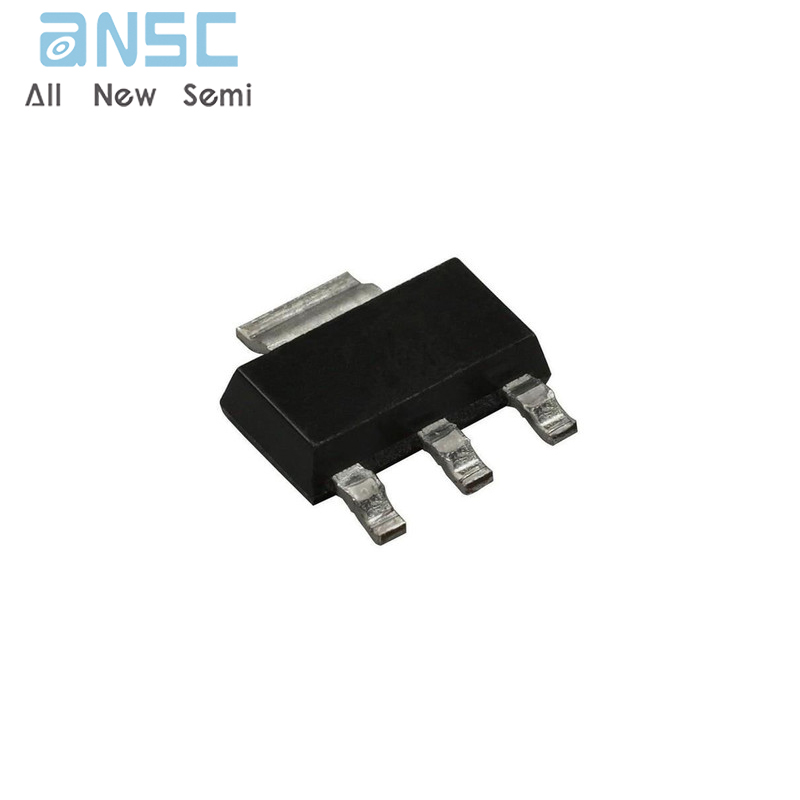

DCP69-13 20V PNP SURFACE MOUNT TRANSISTOR SOT223 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
• Case: SOT223
• Case Material: Molded Plastic, "Green Molding” Compound. UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish - Matte Tin
• Solderable per MIL-STD -202, Method 208
• Weight: 0.112 grams (approximate)
Product Features
• Epitaxial Planar Die Construction
• Complementary NPN Type Available (DCP68)
• Ideally Suited for Automated Assembly Processes
• Ideal for Medium Power Switching or Amplification Applications
• Totally Lead-Free & Fully RoHS compliant (Note 1)
• Halogen and Antimony Free. “Green” Device (Note 2)
• Qualified to AEC-Q101 Standards for High Reliability
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DCP69-13 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 85 @ 500mA, 1V |
| Power - Max | 1 W |
| Frequency - Transition | 200MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| Base Product Number | DCP69 |
Product Photos
For more product information, please download the PDF
