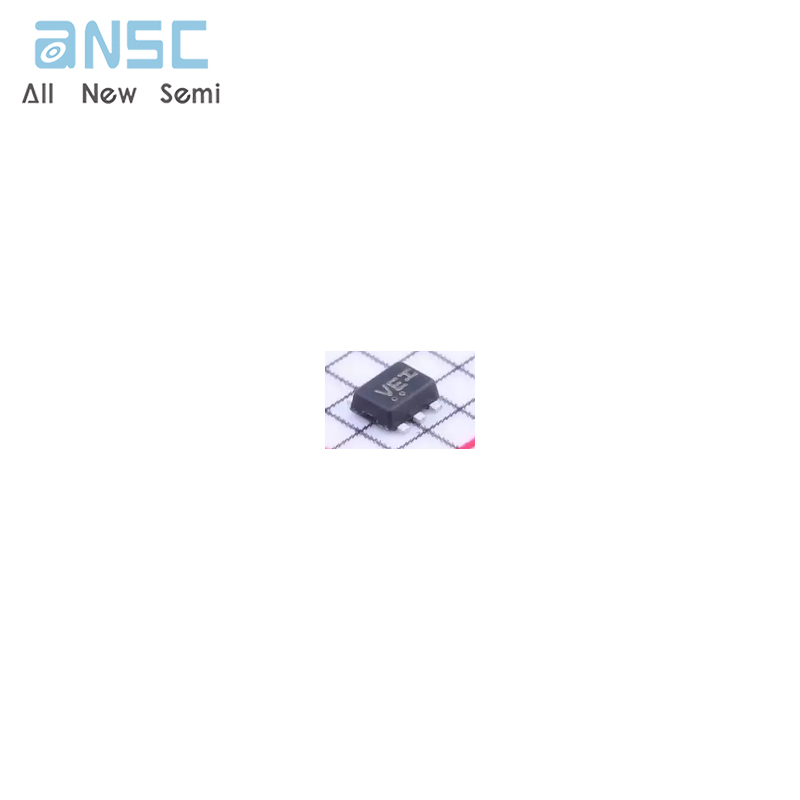

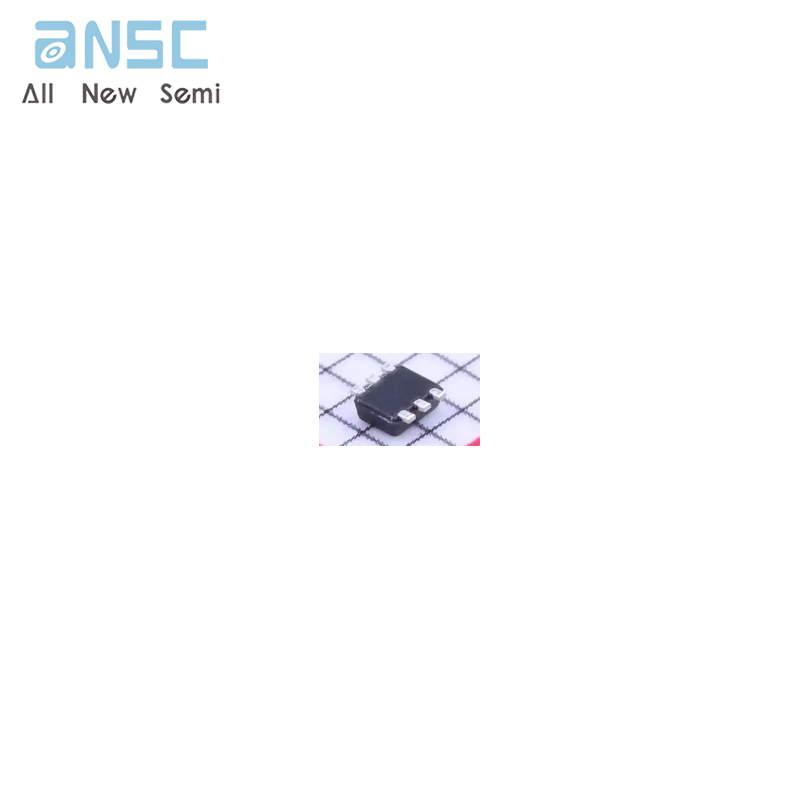

Hot-selling and scarce NSS12100XV6T1G 12 V 1 A Low VCE(sat) PNP Transistor SOT563 spot stock
Manufacturer Product Number
NSS12100XV6T1G
Description
NSS12100XV6T1G 12 V, 1 A, Low VCE(sat) PNP Transistor SOT563 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
e2PowerEdge family of low VCE(sat) transistors are miniature surface mount devices featuring ultra low saturation voltage (VCE(sat)) and high current gain capability. These are designed for use in low voltage, high speed switching applications where affordable efficient energy control is important.
Typical application are DC−DC converters and power management in portable and battery powered products such as cellular and cordless phones, PDAs, computers, printers, digital cameras and MP3 players. Other applications are low voltage motor controls in mass storage products such as disc drives and tape drives. In the automotive industry they can be used in air bag deployment and in the instrument cluster. The high current gain allows e2PowerEdge devices to be driven directly from PMU’s control outputs, and the Linear Gain (Beta) makes them ideal components in analog amplifiers.
Product Features
• High Current Capability (1 A)
• High Power Handling (Up to 650 mW)
• Low VCE(s) (150 mV Typical @ 500 mA)
• Small Size
• This is a Pb−Free Device
Product Benefits
• High Specific Current and Power Capability Reduces Required PCB Area
• Reduced Parasitic Losses Increases Battery Life
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NSS12100XV6T1G |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 12 V |
| Vce Saturation (Max) @ Ib, Ic | 440mV @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 500mA, 2V |
| Power - Max | 500 mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563 |
| Base Product Number | NSS12100 |
