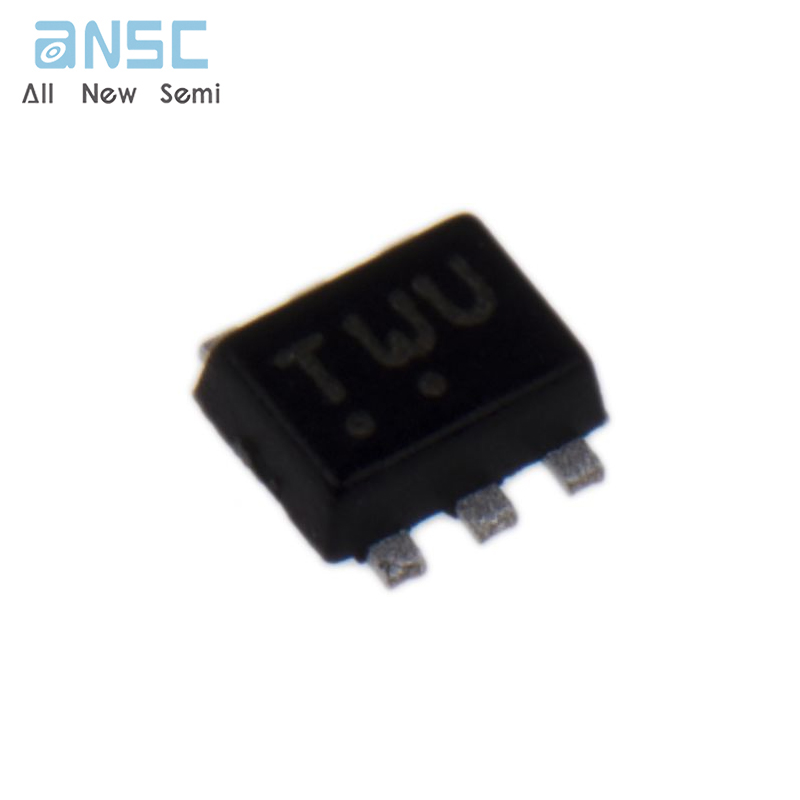

NTZD3155CT1G Small Signal MOSFET Complementary 20V 540mA -430 mA with ESD protection SOT-563 spot stock
Manufacturer Product Number
NTZD3155CT1G
Description
NTZD3155CT1G Small Signal MOSFET Complementary
Package Condition
Tape & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Leading Trench Technology for Low RDS(on) Performance
• High Efficiency System Performance
• Low Threshold Voltage
• ESD Protected Gate
• Small Footprint 1.6 x 1.6 mm
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Product Applications
• DC−DC Conversion Circuits
• Load/Power Switching with Level Shift
• Single or Dual Cell Li−Ion Battery Operated Systems
• High Speed Circuits
• Cell Phones, MP3s, Digital Cameras, and PDAs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NTZD3155CT1G |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| FET, MOSFET Arrays | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR), Cut Tape (CT) |
| Part Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25℃ | 540mA, 430mA |
| Rds On (Max) @ Id, Vgs | 550mOhm @ 540mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250uA |
| Gate Charge (Qg) (Max) @ Vgs | 2.5nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 150pF @ 16V |
| Power - Max | 250mW |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563 |
| Base Product Number | NTZD3155 |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
NTZD3155CT1G Small Signal MOSFET Complementary
