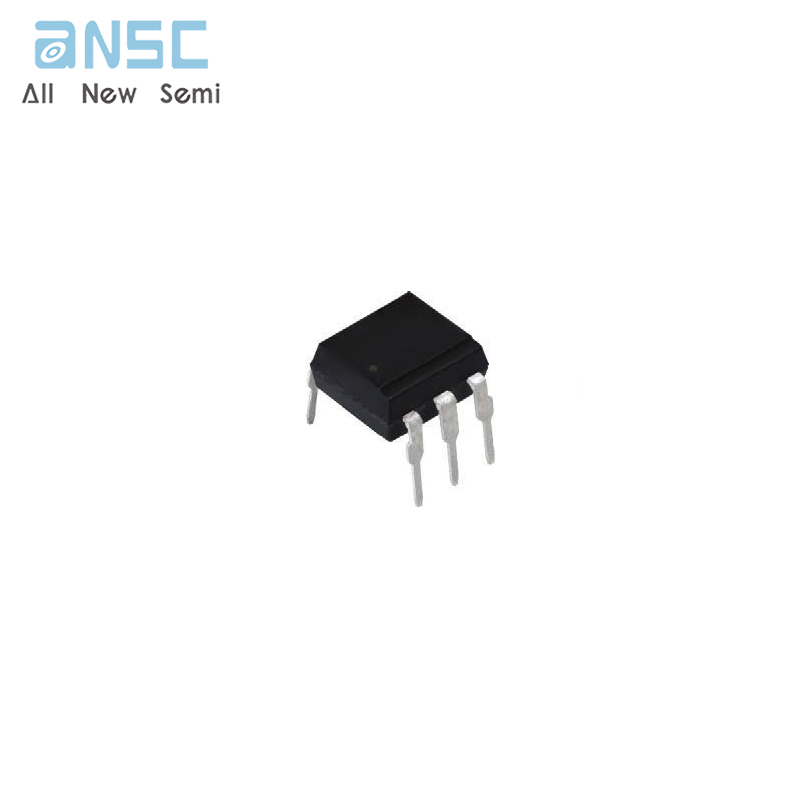

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce SFH640-2 Optocoupler, Phototransistor Output, with Base Connection, 300V BVCEO DIP6 spot stock
Manufacturer Product Number
SFH640-2
Description
SFH640-2 Optocoupler Phototransistor Output with Base Connection 300V BVCEO DIP6 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The SFH 640 is an optocoupler with very high BVCER, a minimum of 300 V. It is intended for telecommunications applications or any DC application requiring a high blocking voltage.
Product Features
• Good CTR linearity with forward current
• Low CTR degradation
• Very high collector emitter breakdown voltage, BVCER = 300 V
• Isolation test voltage: 5300 VRMS
• Low coupling capacitance
• High common mode transient immunity
• Phototransistor optocoupler 6 pin DIP package with base connection
• Lead (Pb)-free component
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SFH640-2 |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 63% @ 10mA |
| Current Transfer Ratio (Max) | 125% @ 10mA |
| Turn On / Turn Off Time (Typ) | 5us, 6us |
| Rise / Fall Time (Typ) | 2.5us, 5.5us |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 300V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55℃ ~ 100℃ |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Base Product Number | SFH640 |
Product Photos
For more product information, please download the PDF
