Hot-selling and scarce TIP42C Complementary Silicon Plastic Power Transistors TO-220 spot stock
Manufacturer Product Number
TIP42C
Description
TIP42C Complementary Silicon Plastic Power Transistors TO-220 spot stock
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
Designed for use in general purpose amplifier and switching applications.
Product Features
• ESD Ratings:
Machine Model, C; > 400 V
Human Body Model, 3B; > 8000 V
• Epoxy Meets UL 94 V-0 @ 0.125 in
• Pb-Free Packages are Available*
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TIP42C |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | - |
| Packaging | Bulk |
| Part Status | Obsolete |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 6 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 600mA, 6A |
| Current - Collector Cutoff (Max) | 700µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 3A, 4V |
| Power - Max | 2 W |
| Frequency - Transition | 3MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| Base Product Number | TIP42 |

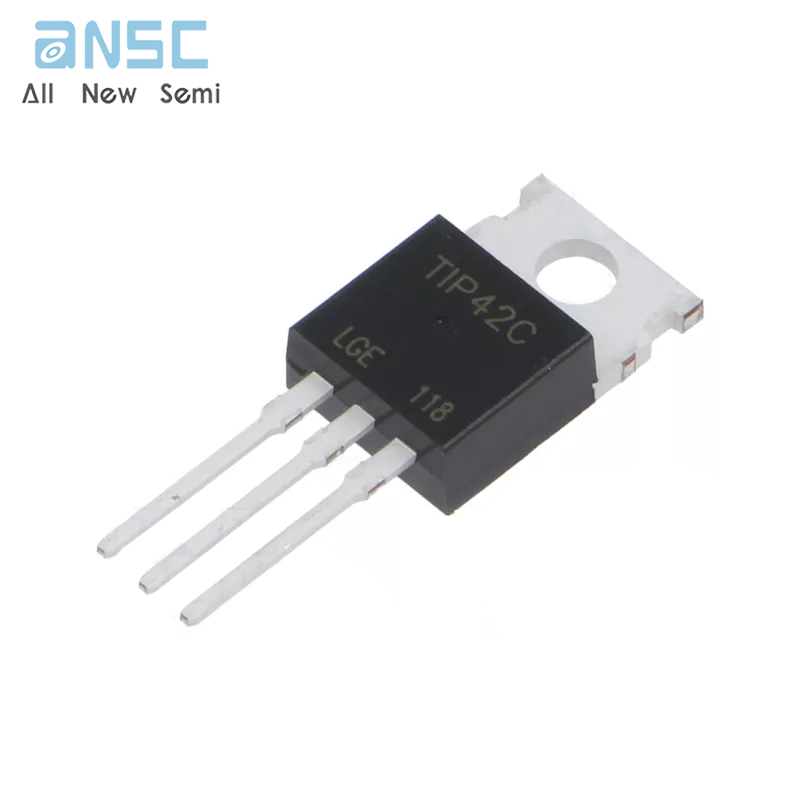

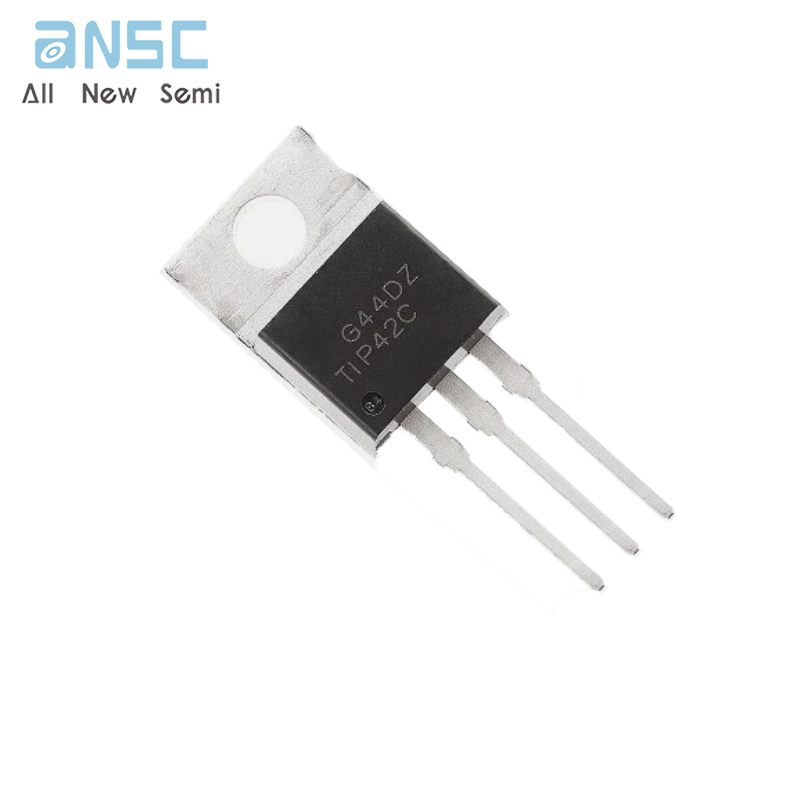

Product Photos
For more product information, please download the PDF
