Hot-selling and scarce NTMFS4933NT1G MOSFET - Power Single N-Channel SO-8 FL spot stock
Manufacturer Product Number
NTMFS4933NT1G
Description
NTMFS4933NT1G MOSFET - Power Single N-Channel SO-8 FL spot stock
Package Condition
Tape & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Low RDS(on)to Improve Conduction and Overall Efficiency
• These Devices are Pb−Free,Halogen Free/BFR Free and are RoHS Compliant
Product Applications
• OR−ing FET,Power Load Switch,Motor Control
• Refer to Application Note AND8195/D for Mounting Information
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NTMFS4933NT1G |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id)@ 25°C | 20A (Ta), 210A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.2mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 62.1 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 10930 pF @ 15 V |
| Power Dissipation (Max) | 1.06W (Ta), 104W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-DFN (5x6) (8-SOFL) |
| Package / Case | 8-PowerTDFN, 5 Leads |
| Base Product Number | NTMFS4933 |

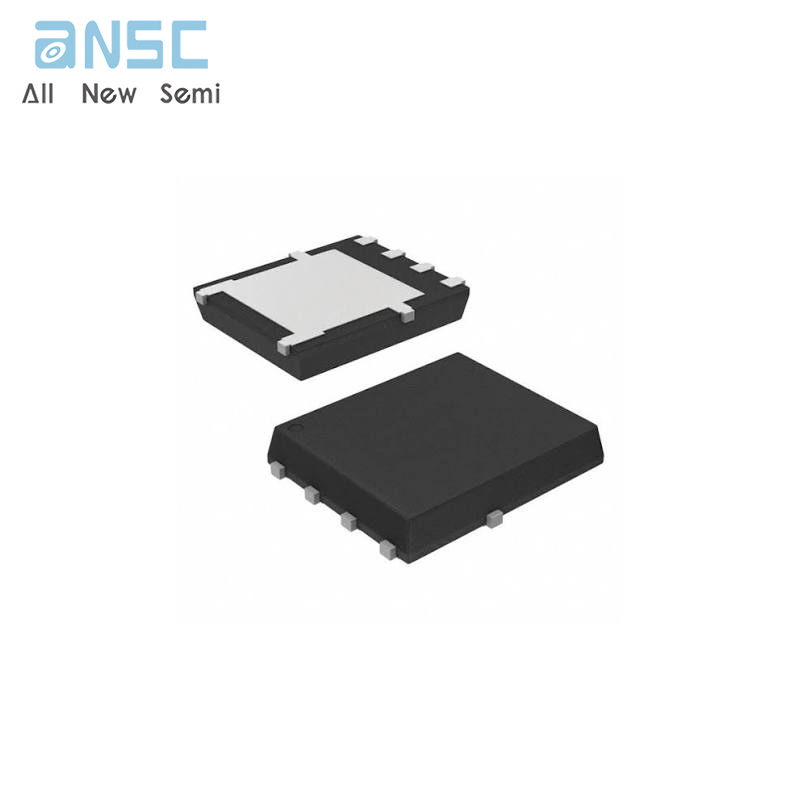

Product Photos
For more product information, please download the PDF
