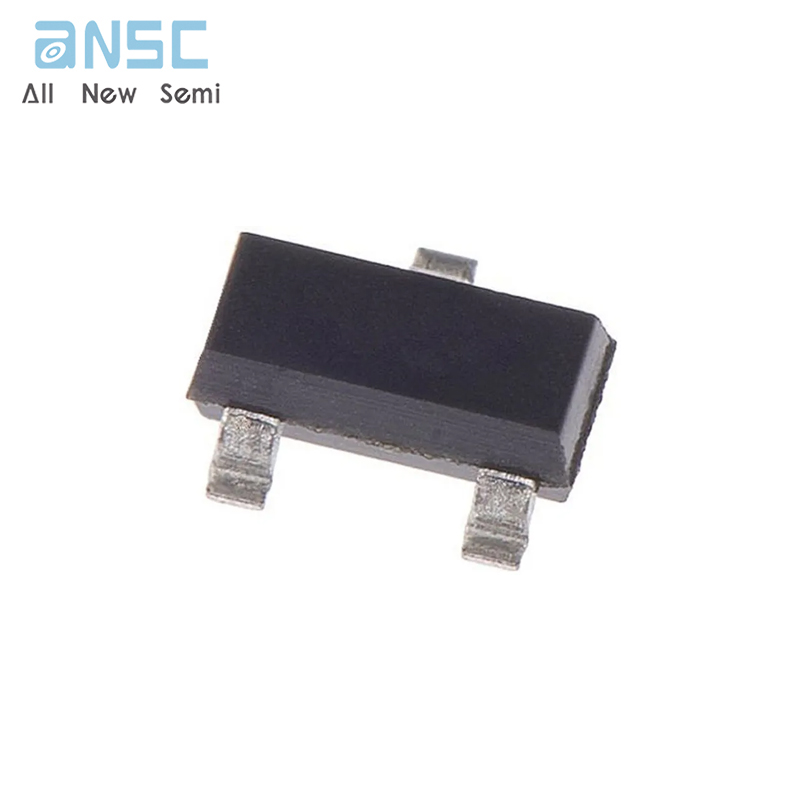

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce ZXM61N02FTA 20V N-CHANNEL ENHANCEMENT MODE MOSFET SOT23 spot stock
Manufacturer Product Number
ZXM61N02FTA
Description
ZXM61N02FTA 20V N-CHANNEL ENHANCEMENT MODE MOSFET SOT23 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This new generation of high density MOSFETs from Zetex utilises a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage, power management applications.
Product Features
• Low on-resistance
• Fast switching speed
• Low threshold
• Low gate drive
• SOT23 package
Product Applications
• DC - DC Converters
• Power Management Functions
• Disconnect switches
• Motor control
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ZXM61N02FTA |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Last Time Buy |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 1.7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.7V, 4.5V |
| Rds On (Max) @ Id, Vgs | 180mOhm @ 930mA, 4.5V |
| Vgs(th) (Max) @ Id | 700mV @ 250µA (Min) |
| Gate Charge (Qg) (Max) @ Vgs | 3.4 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 160 pF @ 15 V |
| Power Dissipation (Max) | 625mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | ZXM61N02 |
Product Photos
For more product information, please download the PDF
WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
