Hot-selling and scarce SIS406DN-T1-GE3 N-Channel 30 V (D-S) MOSFET QFN8 spot stock
Manufacturer Product Number
SIS406DN-T1-GE3
Description
SIS406DN-T1-GE3 N-Channel 30 V (D-S) MOSFET QFN8 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• TrenchFET® power MOSFET
• PWM optimized
• New low thermal resistance PowerPAK® package with low 1.07 mm profile
• 100 % Rg and UIS tested
Product Applications
• Adaptor switch
• Load switch
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SIS406DN-T1-GE3 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 11mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 28 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1100 pF @ 15 V |
| Power Dissipation (Max) | 1.5W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® 1212-8 |
| Package / Case | PowerPAK® 1212-8 |
| Base Product Number | SIS406 |

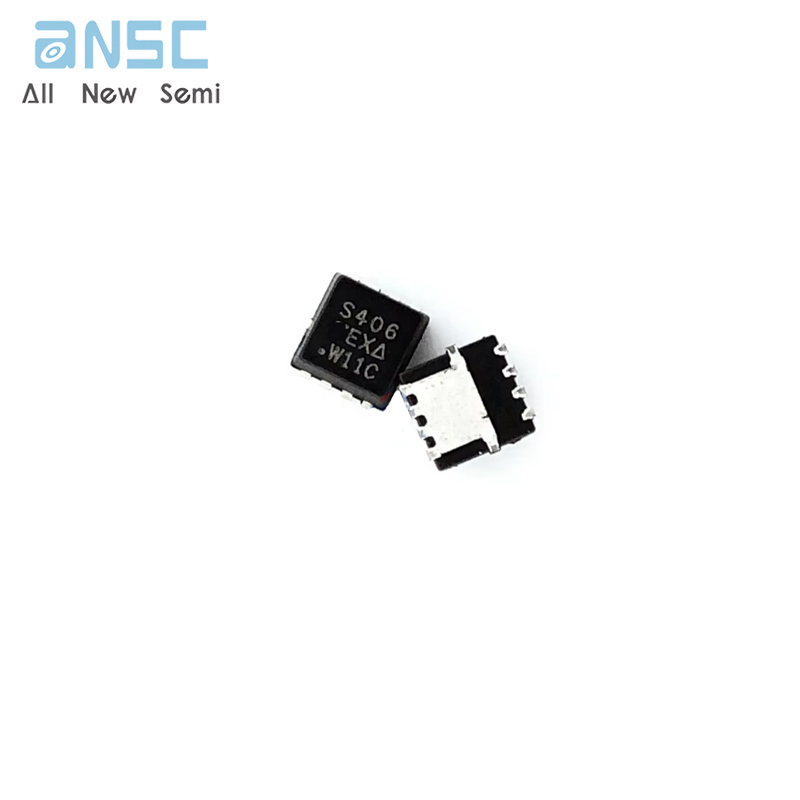

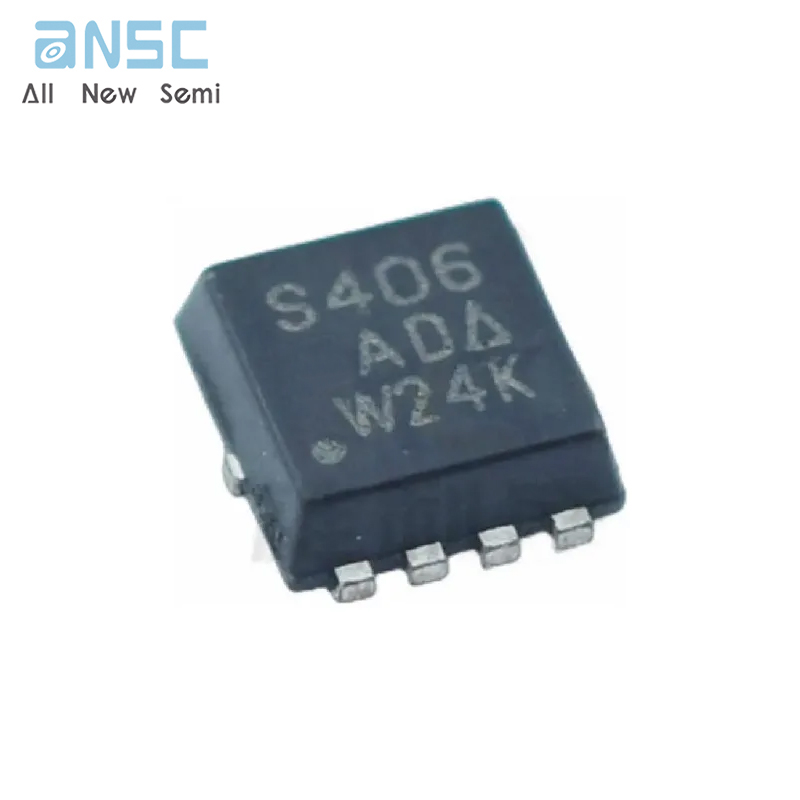

Product Photos
For more product information, please download the PDF
