Hot-selling and scarce FDMS7660AS N-Channel 30V 42A 2.4mΩ QFN spot stock
Manufacturer Product Number
FDMS7660AS
Description
FDMS7660AS N-Channel 30V 42A 2.4mΩ QFN spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The FDMS7660AS has been designed to minimize losses inpower conversion application .Advancements in both silicon andpackage technologies have been combined to offer the lowestr DS(on)while maintaining excellent switching performance .Thisdevice has the added benefit of an efficient monolithic Schottkybody diode .
Product Features
Max rDS(on)=2.4 mΩ at V GS =10 V,I D =25 A
Max rDS(on)=2.6 mΩ at V GS =7 V,I D =23 A
Advanced Package and Silicon combination for low r DS(on) and high efficiency
SyncFET Schottky Body Diode
MSL1 robust package design
100%UIL tested
RoHS Compliant
Product Applications
Synchronous Rectifier for DC/DC Converters
Notebook Vcore/GPU low side switch
Networking Point of Load low side switch
Telecom secondary side rectification
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-FDMS7660AS |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Series | PowerTrench®, SyncFET™ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 26A (Ta), 42A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.4mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 90 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6120 pF @ 15 V |
| Power Dissipation (Max) | 2.5W (Ta), 83W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | FDMS7660 |

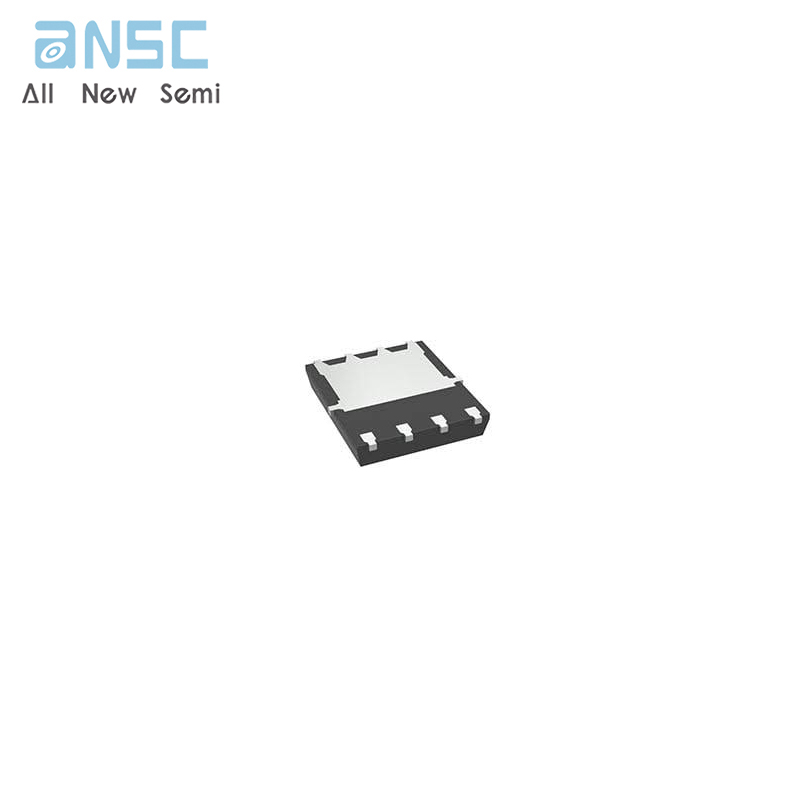

Product Photos
