Hot sale original BSS123,215 Small Signal Field-Effect Transistor N-channel TrenchMOS logic level FET TO-236 3-Pin
Manufacturer Product Number
BSS123,215
Description
BSS123,215 Small Signal Field-Effect Transistor N-channel TrenchMOS logic level FET TO-236 3-Pin
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
BSS123,215 Overview
To operate this transistor, you need to apply a 100V drain to source voltage (Vdss).
BSS123,215 Features
a 100V drain to source voltage (Vdss)
BSS123,215 Applications
BSS123,215 applications of single MOSFETs transistors.
Power Tools
Motor Drives and Uninterruptible Power Supples
Synchronous Rectification
Battery Protection Circuit
Telecom 1 Sever Power Supplies
Industrial Power Supplies
PFC stages, hard switching PWM stages and resonant switching
PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
Lighting, Server, Telecom and UPS.
DC-to-DC converters
Product Description
| Type# | Description |
| ANSC PART# | ANSC -BSS123,215 |
| Ihs Manufacturer | / |
| Part Package | TO-236 |
| Package Description | SOT-23, 3 PIN |
| Pin Count | 3 |
| Manufacturer Package | SOT23 |
| Additional Feature | LOGIC LEVEL COMPATIBLE |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| DS Breakdown Voltage-Min | 100 V |
| Drain Current-Max (ID) | 0.15 A |
| Drain-source On Resistance-Max | 6 Ω |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| Feedback Cap-Max (Crss) | 10 pF |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 150 °C |
| Operating Temperature-Min | -55 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation Ambient-Max | 0.25 W |
| Power Dissipation-Max (Abs) | 0.25 W |
| Qualification Status | Not Qualified |
| Reference Standard | IEC-134 |
| Surface Mount | YES |
| Terminal Finish | TIN |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |

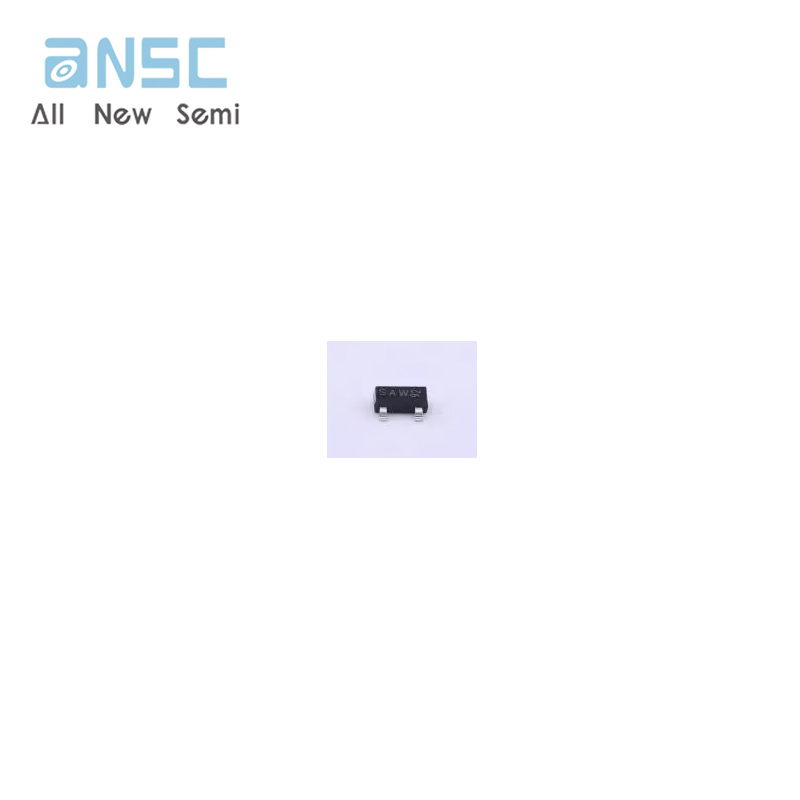

Actual image of the product

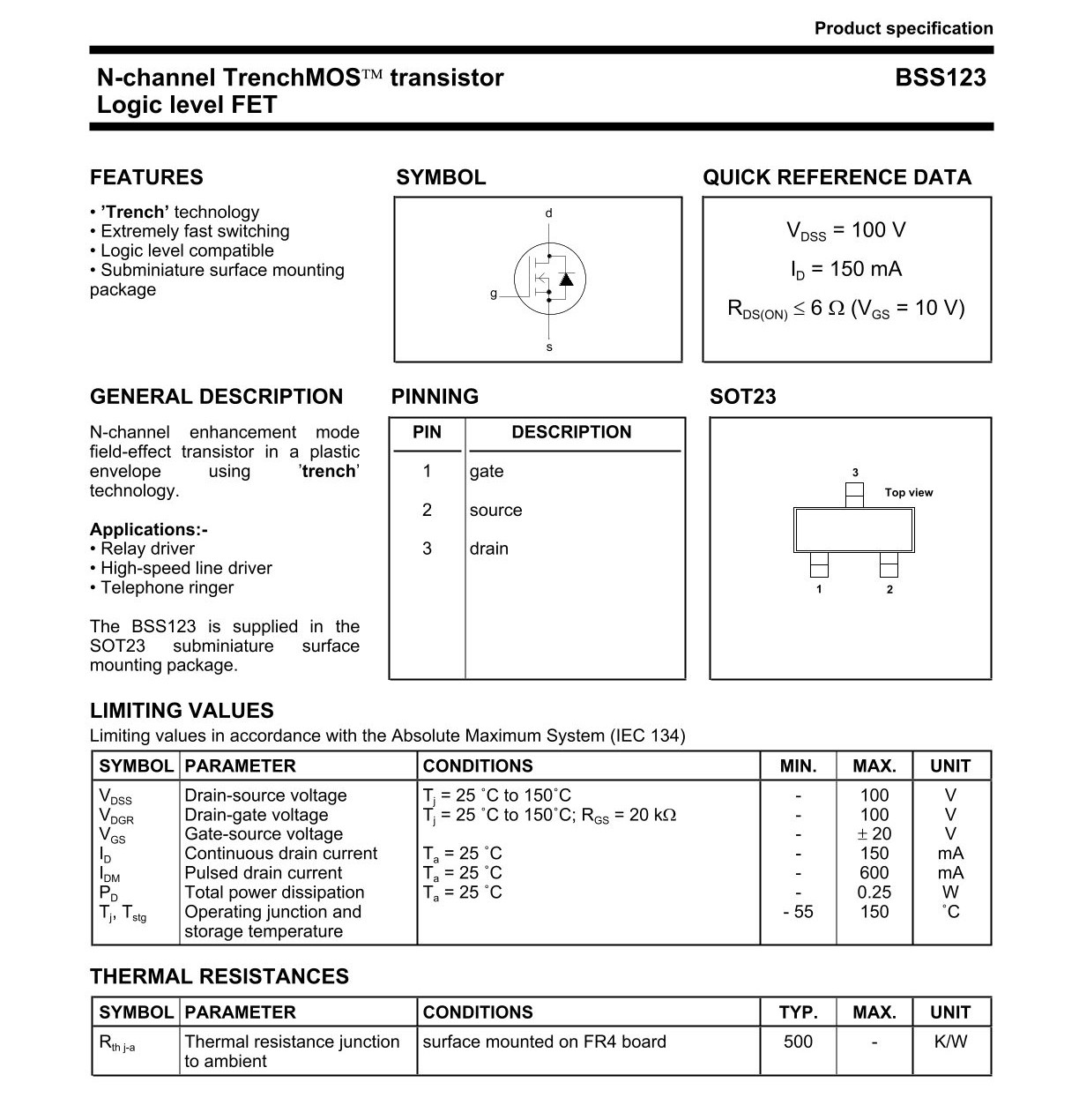

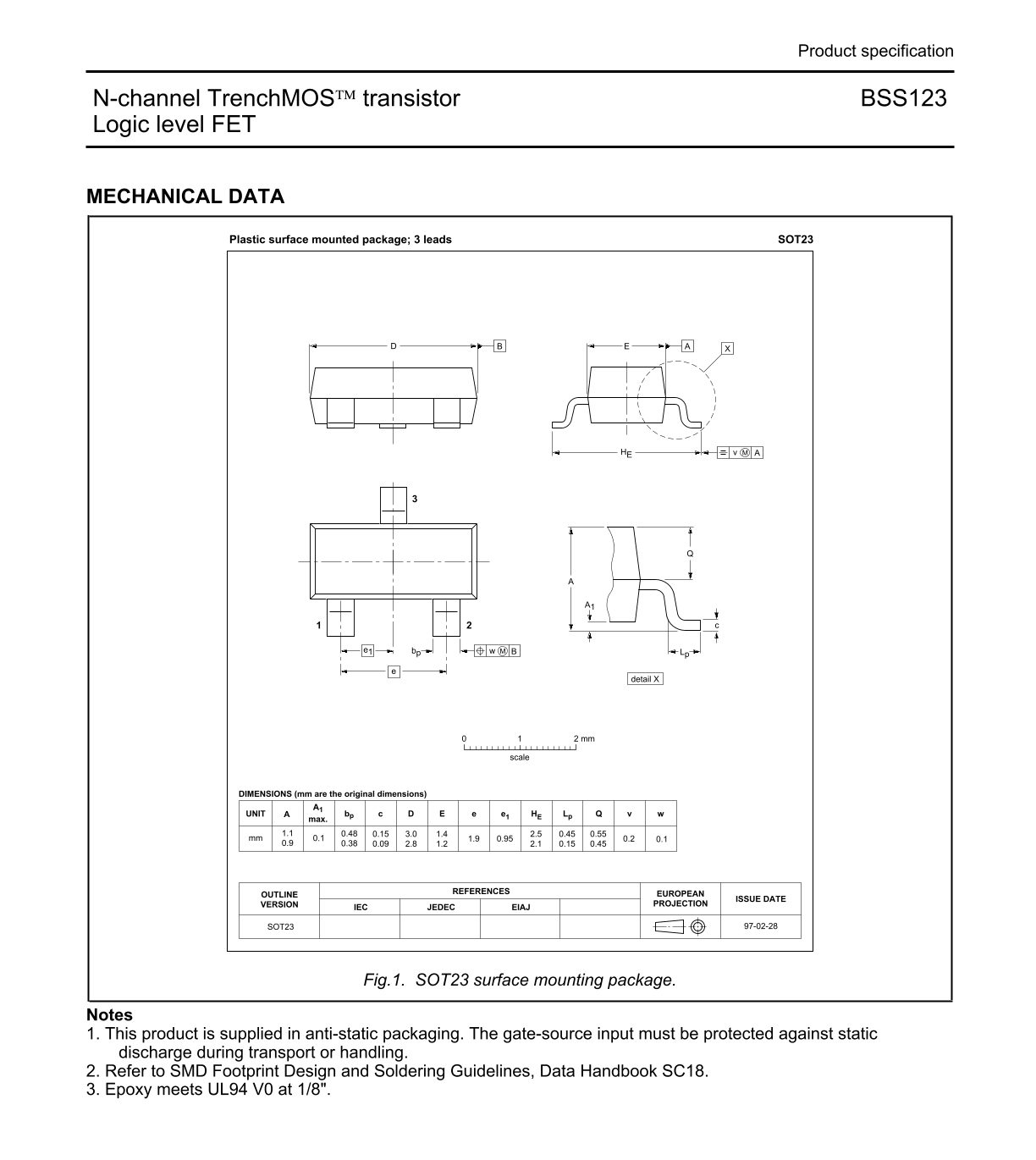

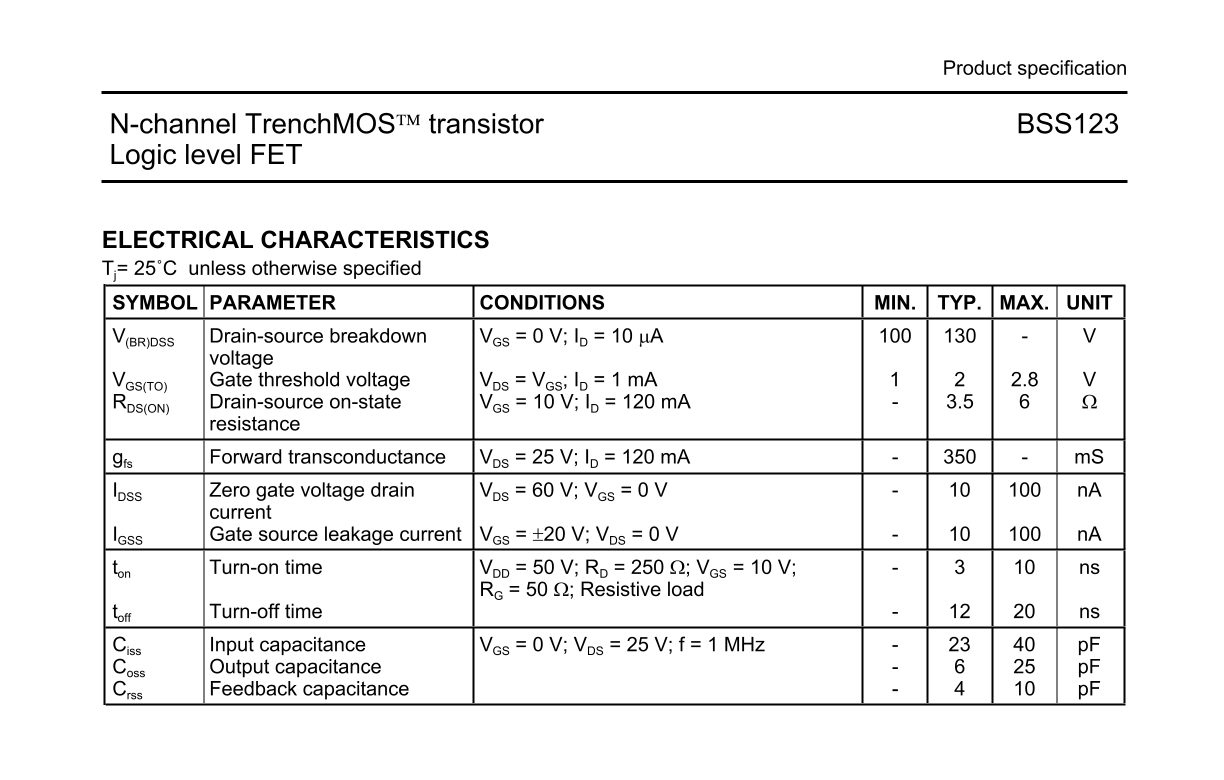

Product datasheet
For more information, please download
