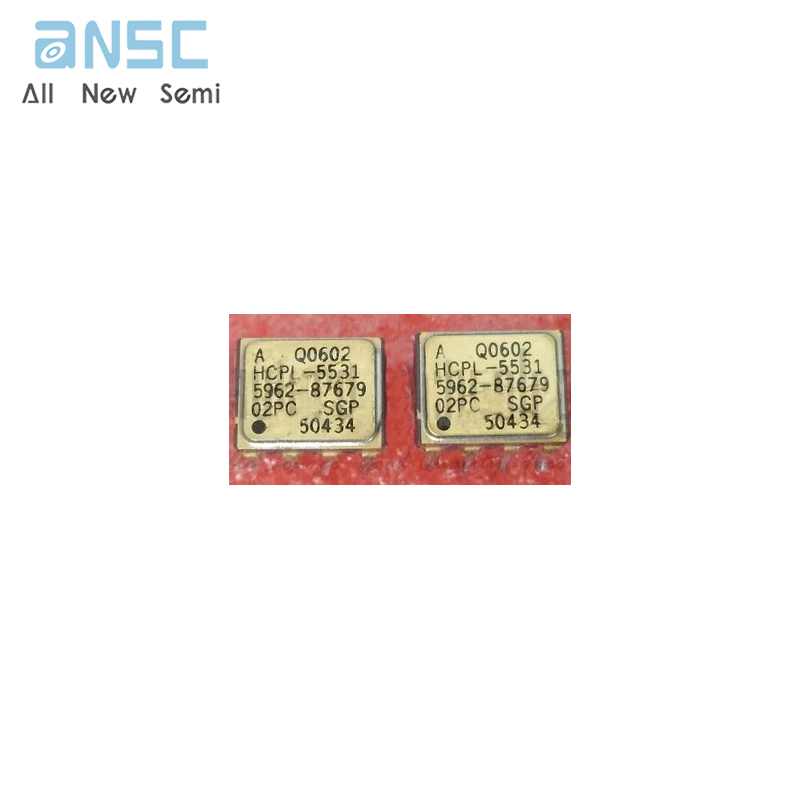

Hot-selling and scarce HCPL-5531 Optoisolator Transistor with Base Output 1500VDC 2 Channel 8-DIP spot stock
Manufacturer Product Number
HCPL-5531
Description
HCPL-5531 Optoisolator Transistor with Base Output 1500VDC 2 Channel 8-DIP spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These units are single -, dual -, and quad-channel,hermetically sealed optocouplers .The products are capableof operation and storage over the full military temperaturerange and can be purchased as either Commercial productor with full MIL-PRF-38534 Class Level H or K testing orfrom the appropriate DLA Standard Microcircuit Drawing(SMD).All devices are manufactured and tested on a MILPRF-38534 certified line and Class H and K devices areincluded in the DLA Qualified Manufacturers List QML -38534 for Hybrid Microcircuits .
Product Features
Dual marked with device part number and DLA Standard Microcircuit Drawing (SMD)
Manufactured and tested on a MIL-PRF-38534 Certified Line
QML-38534, Class H and K
Five hermetically sealed package configurations
Performance guaranteed over full military temperature range:–55°C to +125°C
High speed: 400 kb/s typical
9-MHz bandwidth
Open collector output
V CC ranges from 2V to 18V
1500 VDC withstand test voltage
High radiation immunity
6N135, 6N136, HCPL-2530/2531 function compatibility
Reliability data
Product Applications
Military and aerospace
High reliability systems
Vehicle command, control, life critical systems
Line receiver
Switching power supply
Voltage level shifting
Analog signal ground isolation (see Figures 7 , 8 , and 13)
Isolated input line receiver
Isolated output line driver
Logic ground isolation
Harsh industrial environments
Isolation for test equipment systems
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-HCPL-5531 |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Manufacturer | - |
| Packaging | Bulk |
| Part Status | Active |
| Number of Channels | 2 |
| Voltage - Isolation | 1500VDC |
| Current Transfer Ratio (Min) | 9% @ 16mA |
| Turn On / Turn Off Time (Typ) | 400ns, 1µs |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 20V |
| Current - Output / Channel | 8mA |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Current - DC Forward (If) (Max) | 20 mA |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Base Product Number | HCPL-5531 |
Product Photos
For more product information, please download the PDF
