Hot-selling and scarce DMN6068SE-13 60V N-CHANNEL ENHANCEMENT MODE MOSFET SOT-223-3 spot stock
Manufacturer Product Number
DMN6068SE-13
Description
DMN6068SE-13 60V N-CHANNEL ENHANCEMENT MODE MOSFET SOT-223-3 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This MOSFET is designed to meet the stringent requirements ofautomotive applications . It is qualified to AEC-Q101, supported by aPPAP and is ideal for use in:
Motor controls
Transformer driving switches
DC-DC converters
Power-management functions
Uninterrupted power supplies
Product Features
100% Unclamped Inductive Switch (UIS) Test in Production
Low On-Resistance
Fast Switching Speed
Lead-Free Finish; RoHS Compliant
Halogen and Antimony Free .“Green” Device
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DMN6068SE-13 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id)@ 25°C | 4.1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 68mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10.3 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 502 pF @ 30 V |
| Power Dissipation (Max) | 2W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-223-3 |
| Package / Case | TO-261-4, TO-261AA |
| Base Product Number | DMN6068 |

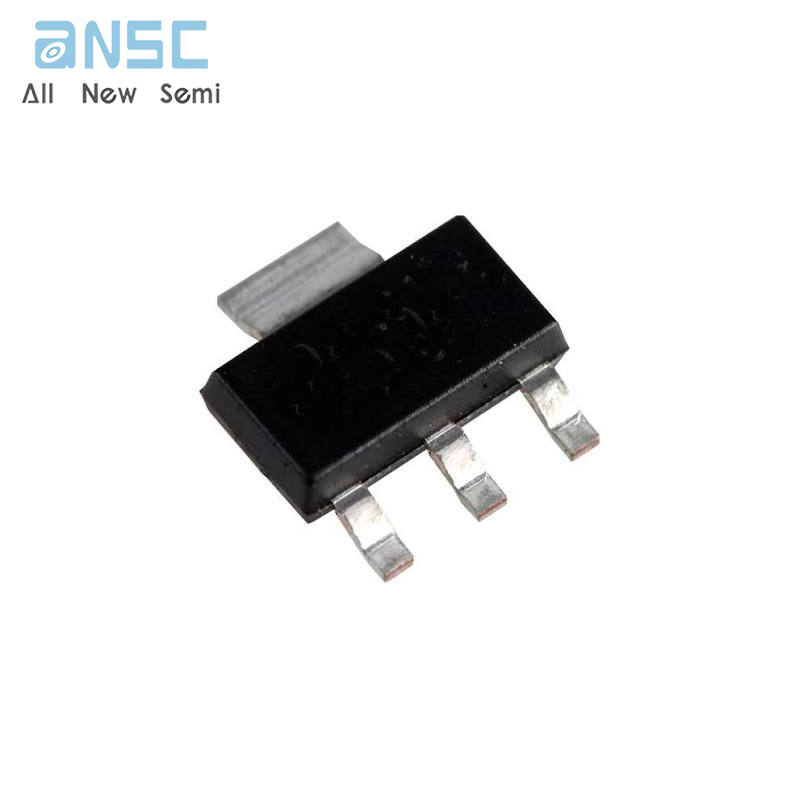

Product Photos
For more product information, please download the PDF
