Hot sale Original FDS4559 Transistor MOSFET N/P-CH 60V Mosfet Array 60V 4.5A 3.5A 1W Surface Mount
Manufacturer Product Number
FDS4559
Description
Original FDS4559 Transistor MOSFET N/P-CH 60V Mosfet Array 60V 4.5A 3.5A 1W Surface Mount 8-SOIC
Package Condition
Tape & Reel (TR)Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
General Description
This complementary MOSFET device is produced using advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain low gate charge for superior switching performance.
Features
• Q1: N-Channel
4.5 A, 60 V
RDS(on) = 55 mΩ @ VGS = 10V
RDS(on) = 75 mΩ @ VGS = 4.5V
• Q2: P-Channel
–3.5 A, –60 V
RDS(on) = 105 mΩ @ VGS = –10V
RDS(on) = 135 mΩ @ VGS = –4.5V
Product Description
| Type | Description |
| ANSC PART# | ANSC - FDS4559 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| FET, MOSFET Arrays | |
| Manufacturer | Original |
| Series | PowerTrench® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C |
4.5A, 3.5A |
| Rds On (Max) @ Id, Vgs | 55mOhm @ 4.5A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 18nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 650pF @ 25V, 759pF @ 25V |
| Power - Max | 1W |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | FDS45 |

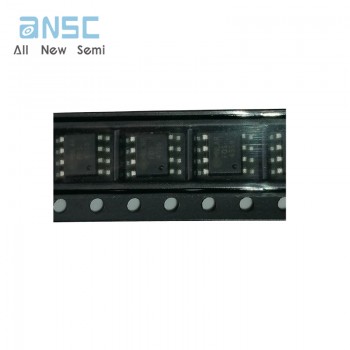

Actual image of the product
Product datasheet
For more information, please download
