Professional supply Integrated circuit IC MMBR5031LT1 NPN Silicon Transistor 17dB 450MHz 15V 20mA 0.3W SOT-23
Manufacturer Product Number
MMBR5031LT1
Description
Trans RF BJT NPN 10V 0.02A 3-Pin SOT-23 T/R
Package Condition
REEL
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
Designed for thick and thin–film circuits using surface mount components and requiring low–noise, high–gain signal amplification at frequencies to 1.0 GHz.
• High Gain — Gpe = 17 dB Typ @ f = 450 MHz
• Low Noise — NF = 2.5 dB Typ @ f = 450 MHz
• Available in tape and reel packaging options:
T1 suffix = 3,000 units per reel
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MMBR5031LT1 |
| ECCN (US) | EAR99 |
| Part Status | Obsolete |
| Automotive | No |
| PPAP | No |
| Type | NPN |
| Material | Si |
| Configuration | Single |
| Number of Elements per Chip | 1 |
| Maximum Collector Base Voltage (V) | 15 |
| Maximum Collector-Emitter Voltage (V) | 10 |
| Maximum Collector-Emitter Voltage Range (V) | <20 |
| Maximum Emitter Base Voltage (V) | 3 |
| Maximum DC Collector Current (A) | 0.02 |
| Maximum DC Collector Current Range (A) | 0.001 to 0.06 |
| Maximum Collector Cut-Off Current (nA) | 10 |
| Operational Bias Conditions | 6V/1mA |
| Minimum DC Current Gain | 25@1mA@6V |
| Minimum DC Current Gain Range | 2 to 30 |
| Maximum Junction Case Thermal Resistance | 250°C/W |
| Typical Output Capacitance (pF) | 1.5(Max) |
| Maximum Power Dissipation (mW) | 300 |
| Typical Power Gain (dB) | 17 |
| Maximum Transition Frequency (MHz) | 1000(Typ) |
| Maximum Noise Figure (dB) | 2.5(Typ) |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 150 |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 0.94 |
| Package Width | 1.3 |
| Package Length | 2.9 |
| PCB changed | 3 |
| Standard Package Name | SOT |
| Supplier Package | SOT-23 |
| Pin Count | 3 |
| Lead Shape | Gull-wing |

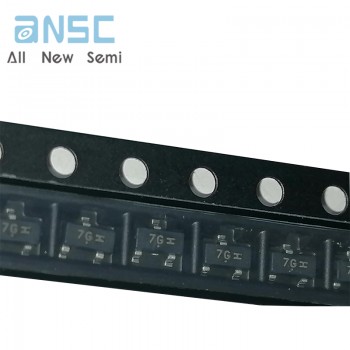

Actual product photos
