Hot sale original electronics BSC032N03S Transistors N-Channel MOSFET 30V 100A Rds(on) 3.2mΩ 78W PG-TDSON-8 LF

Manufacturer Product Number

BSC032N03S

Description

BSC032N03S Transistors N-Channel 30 V 23A (Ta), 100A (Tc) 2.8W (Ta), 78W (Tc) Surface Mount PG-TDSON-8-1 MOSFET N-CH 30V 23A/100A TDSON

Package Condition

Tape & Reel (TR)

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Features

• Fast switching MOSFET for SMPS

• Optimized technology for notebook DC/DC converters

• Qualified according to JEDEC1 for target applications

• Logic level / N-channel

• Excellent gate charge x R DS(on) product (FOM)

• Very low on-resistance R DS(on)

• Superior thermal resistance

• Avalanche rated; dv/dt rated

• Pb-free lead plating; RoHS compliant

• Halogen-free according to IEC61249-2-21

Product Description

TYPE	DESCRIPTION
ANSC PART#	ANSC- BSC032N03S
Category	Discrete Semiconductor Products
	Transistors
	FETs, MOSFETs
	Single FETs, MOSFETs
Mfr	Original
Series	OptiMOS™
Packaging	Tape & Reel (TR)
Part Status	-
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	23A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.2mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	2V @ 70µA
Gate Charge (Qg) (Max) @ Vgs	39 nC @ 5 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5080 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.8W (Ta), 78W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8-1
Package / Case	8-PowerTDFN

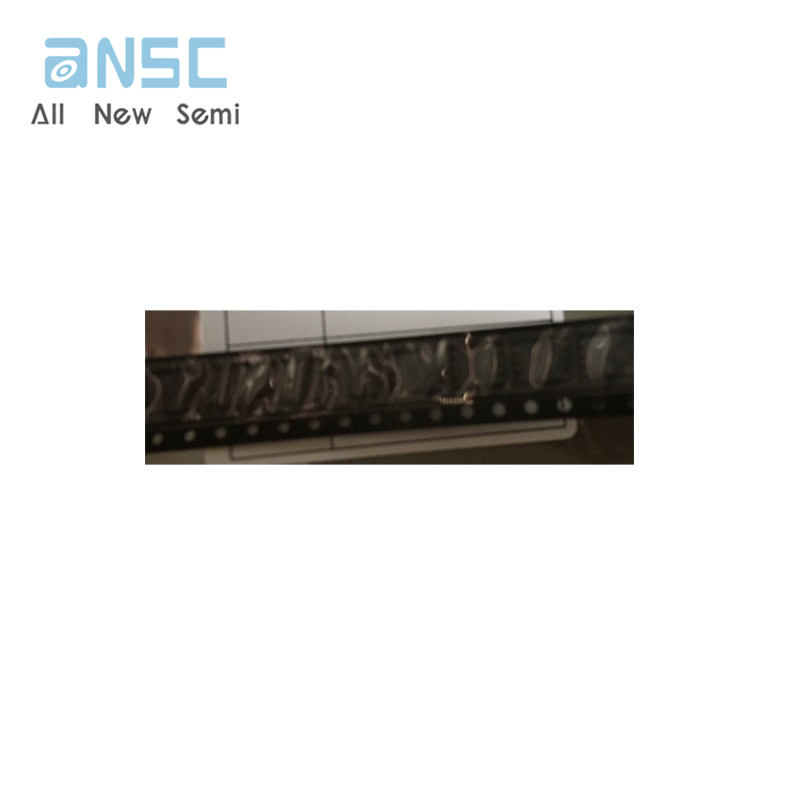

Product Photos

BSC032N03S

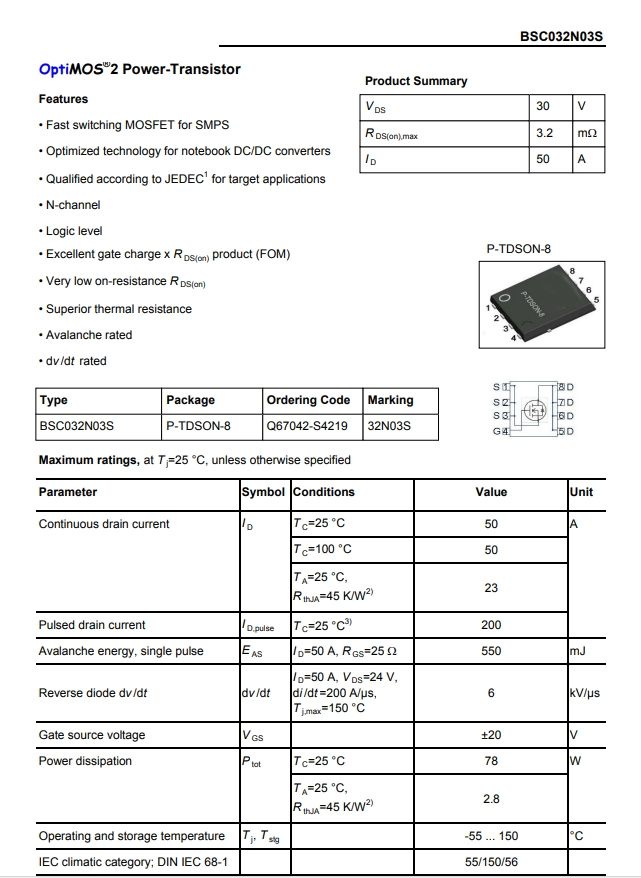

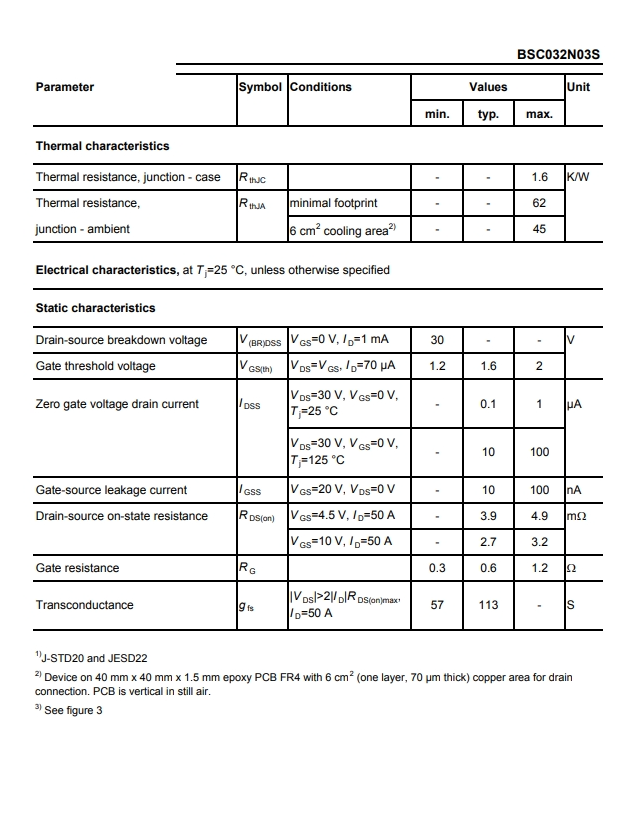

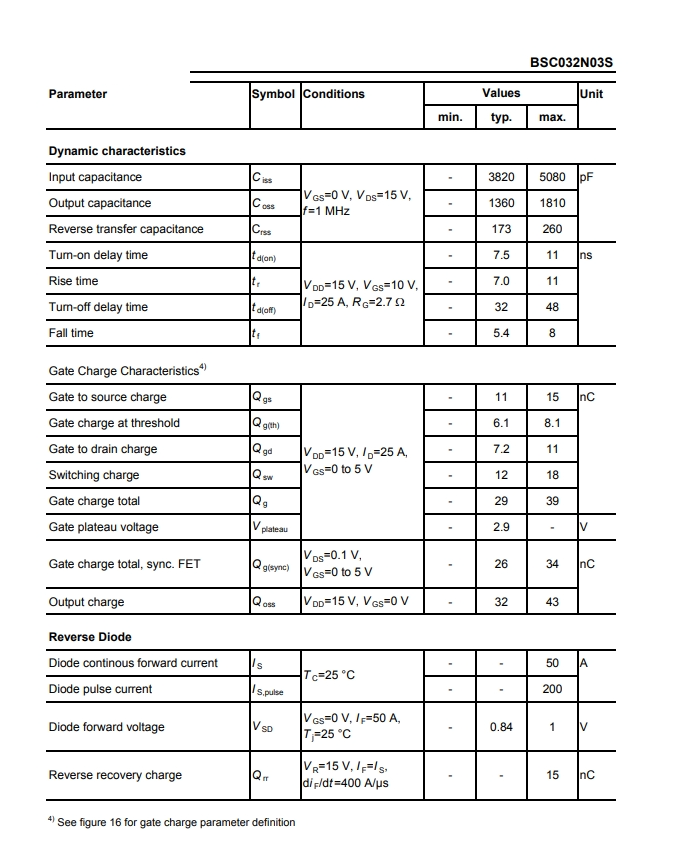

Product datasheet

For more information, please download
